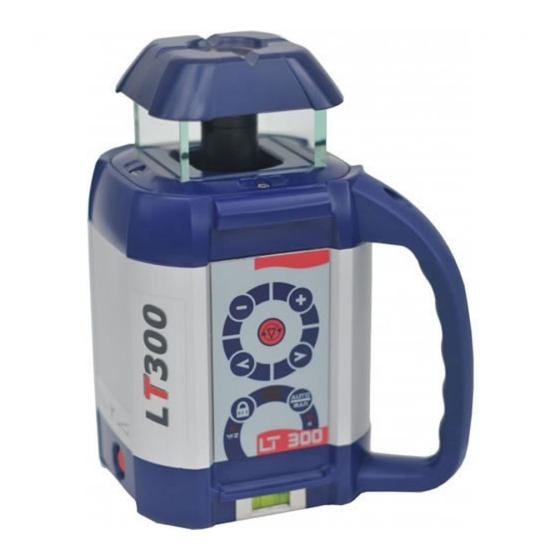

Agatec LT 300 Service Manual

Hide thumbs Also See for LT 300:
Table of Contents

Advertisement

Quick Links

Download this manual

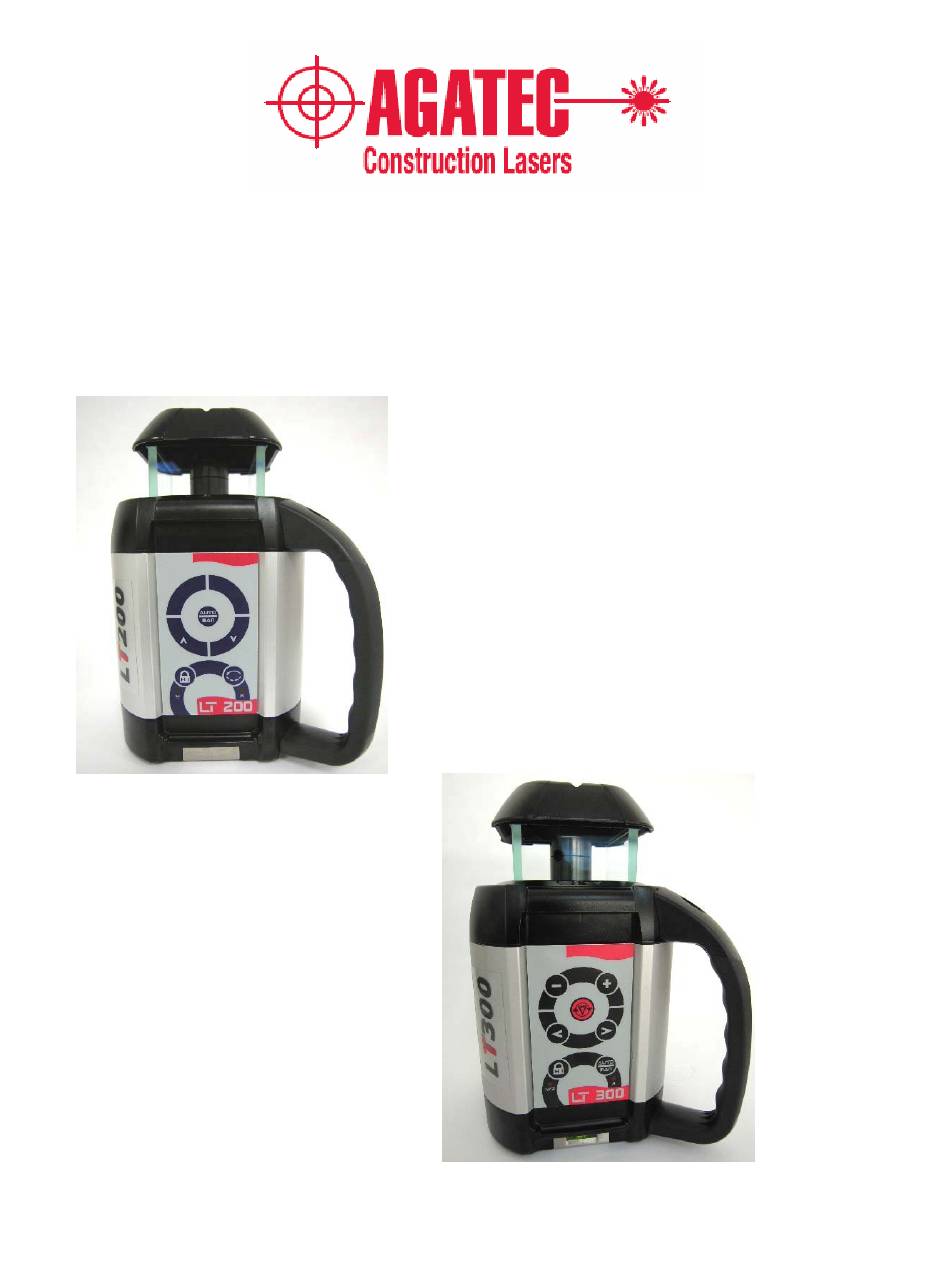

SERVICE MANUAL
LT 200 & LT 300
JANUARY 2006 V1

Advertisement

Table of Contents
loading

Related Manuals for Agatec LT 300

Summary of Contents for Agatec LT 300

  • Page 1 SERVICE MANUAL LT 200 & LT 300 JANUARY 2006 V1...
  • Page 2 Using this manual, a technician should be able to disassemble, troubleshoot, replace defective parts, reassemble and calibrate the LT 200 & 300 lasers within the specified flat rate time schedule listed in the manual. In case of difficulty, please contact the factory service center for technical assistance.
  • Page 3 • Rechargeable battery and charger Kombo tripod/rod kit with the laser. • MR80S detector/laser remote control of construction accessories! with rod clamp AGATEC Construction Lasers - Div. of AGL 2202 Redmond Rd.- Jacksonville, AR 72076 Phone: 800.643.9696 - Fax: 501.982.0880 sales@agl-lasers.com - www.agatec.com...
  • Page 4 Machine Control Interiors Alignment and Layout Site Work and Rugged Leveling Totally waterproof Easy to use Innovative Completely self-leveling Full-featured all-weather laser, yet cost-effective Reliable Multipurpose H.I. Alert shuts off Ideal for both exterior beam if laser is and interior applications disturbed (has visible beam indoors) Specifications...

  • Page 5: Service Bulletin

    SERVICE BULLETIN April 9, 2007 TO: ALL AGATEC SERVICE CENTERS SUBJECT: LT200 / LT300 Operator’s Manuals – INFORMATION ONLY This memo is not only re: the owner’s manuals, but also to make you aware of a spec correction. LT300 brochure spec correction: The brochure for the LT200 and LT300 printed Oct., 2006 has incorrect information in the LT300...
  • Page 6 LT200 Laser Level Owner's Manual...

  • Page 7: General Information

    GENERAL INFORMATION Thank you for buying the LT200! Although it is simple to use, we recommend that you read this manual before operating the laser. Description The LT200 is ideal for general construction, site preparation, and other leveling applications. It automatically self-levels in horizontal and can be used for manual grade as well.
  • Page 9 How To Use The LT200 Setup Horizontal The laser can be used on a 5/8-11 tripod, on a wall mount, or directly on a solid, stable surface. The LT200 has a wide self-leveling range; however, if the laser is set up out of the leveling range, laser beam will continue to blink and rotation will not start.

  • Page 10: Match Slope

    Rotation Rotation Speed The head rotates at 3 speeds: 0, 90 and 600 rpm. To switch from 0 to 90 and 600 rpm, press on key (2). The laser beam is more visible at slower rotation speeds. The faster speed (600 rpm) is required for many machine control receiver applications.
  • Page 11 Batteries Laser Battery The LT200 has a NiCad rechargeable battery that should be charged for 15 hours before first use. Charging the Battery 1) Remove the charging connector cover on the side of the laser. Insert the charger plug and fully engage the threads. 2) Plug the charger into an electrical outlet (110 volts or 220 volts, depending on charger and country).

  • Page 12: How To Check And Calibrate

    Checking and Adjusting the LT200 THIS CHAPTER IS VERY IMPORTANT: Here are a few simple instructions to check your laser for calibration. Remember that the laser is a precision instrument and it is important that you keep it calibrated and in proper condition. The accuracy of your work is completely your responsibility and you should regularly check your instrument, especially prior to important jobs.

  • Page 13: Calibration Overview

    Calibration Overview Calibration is electronic, using the optional detector/remote control or the small remote control (preferred method). If you do not have a remote, the laser keypad may also be used. This method will take longer due to the laser making self-adjustments during movement.
  • Page 14 Checking & Calibrating X & Y Axes 1) Place the laser on a flat surface or tripod 30 m away from a wall. If too bright to see the beam, use a detector with a pole or grade rod. Position so that -X is facing the wall (this is the side of the laser with the On/Off key).
  • Page 15 7) Select the Y axis by pressing the double arrow key (>> l ) on the remote (or the HI key on the laser keypad). Look for: Y LED blinking rapidly, indicating leveling. When the LED blinks slowly, the laser is ready to verify Y axis calibration. 8) Check Y calibration: a) With detector, mark center of the beam (-Y).

  • Page 16: Cone Error Checking

    Cone Error Checking 1) Set up the laser about 60 cm away from a wall (a) or pole and 30 m from another wall (b) or pole. 2) Turn the laser on. After it has self-levelled, mark the location of the beam on the near wall (a).

  • Page 17: Care And Handling

    Care and Handling CAUTION Use of control or calibration procedures other than those specified here in may result in hazardous radiation exposure. 1) The LT200 is a precision instrument that must be handled with care. Avoid shock and vibrations. 2) After use, it’s recommended that you wipe the laser dry and store in a dry place.
  • Page 20 WARRANTY The manufacturer warrants its measuring instruments against all manufacturing defects for a period of one year from date of purchase. If during the warranty period, the product is considered as defective by the manufacturer, the latter will decide whether to repair or exchange the product.
  • Page 21 Division of AGL Corporation 2202 Redmond Rd., Jacksonville, AR 72076 Toll Free: 800.643.9696 Phone: 501.982.4433 . Fax: 501.982.0880 sales@agl-lasers.com www.agatec.com Part of a global group with design and manufacturing facilities on three continents, and sales and service worldwide. AM1031 Printed in USA 3/2007...
  • Page 22 LT 200 / LT 300 RECOMMENDED TOOLING LIST PART NUMBER NAME QUANTITY NET COST TORQUE WRENCH 2 - 30 IN/LBS 275.00 FLAT & PHILIPS SCREWDRIVERS 0.00 HEX WRENCHES (METRIC) 0.00 TORX WRENCHES (6 TO 20) 0.00 POWER METER 0 - 10 mW, 400 TO 1000 nm 0.00...
  • Page 23 Products GAT220(H)V & A510 LT200/300 Instrument levels All functions OK, but will Instrument does All functions OK, but but does not rotate not calibrate not turn on mW output low Cone problem (all Potato chipping (x Check all Check all Check diode readings too high and y axis...
  • Page 24 Laser and Detector Go-No-Go Test RANGE TEST LASER WITH DETECTOR AT 100 FT. DETECTOR INDICATES CORRECT ON- GRADE, ABOVE AND BELOW GRADE, BANDWIDTH AND AUDIO? RETEST LASER WITH DETECTOR AT LONG DOES LASER HAVE RANGE USING MAXIMUM MINIMUM MW OUTPUT AND DISTANCE SPECS GOOD SPOT QUALITY? DETECTOR...
  • Page 25 Demontage LT200 Dévisser les 4 vis de fixation de la cage(rouge) (tournevis TORX 20) puis démonter la cage Dévisser la vis de fixation de la poignée(vert) (clef 6 pans 3mm) et la démonter 4 TORX screw removing with a 20 TORX male wrench (Red circle), then, disassemble the cage with a 3mm male wrench, remove the CHC screw (green circle), then disassemble the handle...
  • Page 26 Déconnecter les fils batterie (x2 vert) et les fils interface (x5 rouge) Battery wires (x2 green) and Master PCB wires (x5 red) disconnection Dévisser les 2 vis de fixation du couvercle de tête(clef 6 pans 2mm), puis l’enlever. 2 CHC screw removing with a 2 male wrench. After that disassemble the head cover.
  • Page 27 Conseille au remontage Ne pas vriller le câble clavier Do not twist the key board cable Orientation du cœur dans l’housing Core position in the housing Page 3 sur 3...
  • Page 28 LT300 Laser Level Owner's Manual...
  • Page 29 GENERAL INFORMATION Thank you for buying the LT300! Although it is very simple to use, we recommend that you read this manual before operating the laser. Description The LT300 is a visible laser that can be used for leveling, vertical alignment &...

  • Page 31: Automatic/Manual Mode

    How To Use The LT300 Setup Horizontal The laser can be used on a 5/8-11 tripod, on a wall mount, or directly on a solid, stable surface. Vertical The laser can be placed directly on a solid, stable surface. Place the laser on the side with the two adjustable feet (6). Rough level the laser by using the feet to center the bubble in the vertical vial (4).
  • Page 32 H.I. Alert H.I. (height of instrument) Alert stops the laser automatically if the laser is disturbed or moved, preventing inaccurate readings. It will function only when selected. To activate this safeguard feature, press the H.I. key (1). The LED indicator (9) will blink rapidly while the laser is self-leveling.
  • Page 33 Scanning Scanning mode allows you to see the beam easier at a distance. To switch from rotation to scan, press the scanning key (3). Use the + or - keys on the keypad to change scan lengths. Hold down the < or > arrows to move the scan left or right. To stop scanning, press again on the scanning key (3).
  • Page 34 Batteries Laser Battery The LT300 has a NiCad rechargeable battery that should be charged for 15 hours before first use. Charging the Battery 1) Remove the charging connector cover on the side of the laser. Insert the charger plug and fully engage the threads. 2) Plug the charger into an electrical outlet (110 volts or 220 volts, depending on charger and country).

  • Page 35: Checking And Adjusting The Lt300

    Checking and Adjusting the LT300 THIS CHAPTER IS VERY IMPORTANT: Here are a few simple instructions to check your laser for calibration. Remember that the laser is a precision instrument and it is important that you keep it calibrated and in proper condition. The accuracy of your work is completely your responsibility and you should regularly check your instrument, especially prior to important jobs.

  • Page 36: Calibration Overview

    Calibration Overview Calibration is electronic, using the optional detector/remote control or the small remote control (preferred method). If you do not have a remote, the laser keypad may also be used. This method will take longer due to the laser making self-adjustments during movement. Be very careful not to jar or move the laser when pushing the laser keys, or your calibration will not be accurate.
  • Page 37 Checking & Calibrating X & Y Axes 1) Place the laser on a flat surface or tripod 30 m away from a wall. If too bright to see the beam, use a detector with a pole or grade rod. Position so that -X is facing the wall (this is the side of the laser with the On/Off key).

  • Page 38: Checking Z Axis

    8) Check Y calibration: a) With detector, mark center of the beam (-Y). b) Rotate laser 180° so +Y is facing wall. c) With detector, mark the center of the beam (+Y). d) At 30 m, the two marks should be no more than 4 mm apart. If the marks are close enough, Y axis is within calibration;...

  • Page 39: Calibrating Z Axis

    7) Move the scan up and down the entire length of the plumb line. If the beam is slanted, and not vertical like the plumb line, the Z axis needs to be calibrated. Calibrating Z Axis The laser must be calibrated to bring the rotating Z beam parallel to the plumb line.
  • Page 40 Cone Error Checking 1) Set up the laser about 60 cm away from a wall (a) or pole and 30 m from another wall (b) or pole. 2) Turn the laser on. After it has self-leveled, mark the location of the beam on the near wall (a).

  • Page 41: Warranty

    Care and Handling CAUTION Use of control or calibration procedures other than those specified here in may result in hazardous radiation exposure. 1) The LT300 is a precision instrument that must be handled with care. Avoid shock and vibrations. 2) After use, it’s recommend that you wipe the laser dry and store in a dry place.
  • Page 46 WARRANTY The manufacturer warrants its measuring instruments against all manufacturing defects for a period of one year from date of purchase. If during the warranty period, the product is considered as defective by the manufacturer, the latter will decide whether to repair or exchange the product.
  • Page 47 Division of AGL Corporation 2202 Redmond Rd., Jacksonville, AR 72076 Toll Free: 800.643.9696 Phone: 501.982.4433 . Fax: 501.982.0880 sales@agl-lasers.com www.agatec.com Part of a global group with design and manufacturing facilities on three continents, and sales and service worldwide. AM1032 Printed in USA 3/2007...
  • Page 48 Demontage LT300 Dévisser les 4 vis de fixation de la cage(rouge) (tournevis TORX 20) puis démonter la cage Dévisser la vis de fixation de la poignée(vert) (clef 6 pans 3mm) et la démonter 4 TORX screw removing with a 20 TORX male wrench (Red circle), then, disassemble the cage with a 3mm male wrench, remove the CHC screw (green circle), then disassemble the handle...
  • Page 49 Déconnecter les fils batterie (x2 vert) et les fils interface (x5 rouge) Battery wires (x2 green) and Master PCB wires (x5 red) disconnection Dévisser les 2 vis de fixation du couvercle de tête(clef 6 pans 2mm), puis l’enlever. 2 CHC screw removing with a 2 male wrench. After that disassemble the head cover.
  • Page 50 Conseille au remontage Ne pas vriller le câble clavier Do not twist the key board cable Orientation du cœur dans l’housing Core position in the housing Page 3 sur 3...
  • Page 51 Calibration overview Calibration is electronic, using the TL25 remote control or MR80S detector. The keypad of the laser may also be used, but it will take longer due to the laser making self-adjustments during movement. LED indicators for calibration mode X axis: LED under Auto/Man key blinks slowly Y or Z axis: LED under HI alert key blinks slowly Head position adjustment: both LEDs blink rapidly (not available in Z axis)
  • Page 52 Nitrogen Purge for A710, LT200, LT300...
  • Page 53 PARTS LIST LT200...
  • Page 54 Complete Head, Cover & Cage Code ODA reference Designation U. S. LIST $ 5330-0025-01 Cage Sub-Assembly, 269.10 LT200 5330-0040-01 Spin Head LT200/210 49.38 2300-0039-10 Head Cover 18.09 2480-0009-10 O-ring By 10 0.75 2400-0034-10 Screw, Torx M4x8 By 10 2.55 2400-0057-10 Screw, FHC M3x10, By 10 0.72...
  • Page 55 Upper Housing & Handle Code ODA reference Designation U. S. LIST $ 2310-0117-01 Handle with overmold, Black 15.84 5330-0018-01 Upper Housing w/ Gaskets and Columns 125.67 2400-0035-10 Screw, CHC, M4x8 By 10 2.34 2400-0040-10 Screw CHC M5 x16 By 10 3.96 2480-0010-10 O-ring, 5x1mm...
  • Page 56 Complete module Code ODA reference Designation U. S. LIST $ 5880-0011-03 Core Assy LT200 Programmed 309.69 5880-0011-03 Core Assy LT200 Universal Programmed 309.69...
  • Page 57 Housing, stickers & keypad Code ODA reference Designation U. S. LIST $ 5330-1028-02 Mid Housing, LT200, AGL 22.23 2380-0040-10 «AGL» sticker only By 10 1.80 2380-0037-10 « LT200 » sticker only By 10 6.00 2380-0002-10 « DANGER » sticker only By 10 1.05 2320-0014-10...

  • Page 58: Module Parts

    Module parts Code ODA reference Designation U. S. LIST $ 2310-0004-01 Limit switch arm Short By 10 2.67 2310-0002-01 Half ball cage By 10 2.01 2465-0002-10 Small Tension Spring By 10 0.69 2465-0001-10 Tension spring By 10 0.90 5880-0004-01 Leveling Motor Assy 15.27...
  • Page 59 Batteries sub-assy & PCBoard Code ODA reference Designation U. S. LIST $ 2680-0016-10 Cable, 2 ways, L160mm with Molex 1.11 Housing 22-01-2025/6471 & 51004- 0200, UL1061, AWG24 2680-0017-10 Cable, 5 ways, L130mm with Molex 2.46 Housing 51004-0500, UL1007 5530-0018-03 Interface PCBA, LT w/ PIC16F648 127.26 2730-0025-10 Rechargeable Battery Pack, D-size, cable...
  • Page 60 Base properties Code ODA reference Designation U. S. LIST $ 5330-9021-01 Bottom Housing Sub-Assembly 156.54 2300-0011-01 Adjustable leg 1.65 2310-1121-01 Adjustment Knob w/ Insert 5.31 2380-0007-02 « YELLOW » sticker only By 10 1.32 5330-0038-01 Switch ON/OFF sub-assy 36.72 2480-0010-01 O-ring, 5x1mm By 10 0.66...
  • Page 61 PARTS LIST LT300...
  • Page 62 Complete Head, Cover & Cage Code ODA reference Designation U. S. LIST $ 5330-0014-01 Cage Sub-Assembly, 306.30 LT300 5330-0041-01 Spin Head LT300 60.21 2300-0039-10 Head Cover 18.09 2480-0009-10 O-ring By 10 0.75 2400-0034-10 Screw, Torx M4x8 By 10 2.55 2400-0057-10 Screw, FHC M3x10, By 10 0.72...
  • Page 63 Upper Housing & Handle Code ODA reference Designation U. S. LIST $ 2310-0117-01 Handle with overmold, Black 15.84 5330-0018-01 Upper Housing w/ Gaskets and Columns 125.67 2400-0035-10 Screw, CHC, M4x8 By 10 2.34 2400-0040-10 Screw CHC M5 x16 By 10 3.96 2480-0010-10 O-ring, 5x1mm...
  • Page 64 Complete module Code ODA reference Designation U. S. LIST $ 5880-0010-03 Core Assy LT300 Programmed 386.85 5880-0010-03 Core Assy LT300 Universal Programmed 386.85...
  • Page 65 Housing, stickers & keypad Code ODA reference Designation U. S. LIST $ 5330-1020-01 Mid Housing, LT300, AGL 23.73 2380-0040-10 «AGL» sticker only By 10 1.80 2380-0039-10 « LT300 » sticker only By 10 6.00 2380-0002-10 « DANGER » sticker only By 10 1.05 2320-0016-10...
  • Page 66 Module parts Code ODA reference Designation U. S. LIST $ 2310-0004-01 Limit switch arm Short By 10 2.67 2310-0002-01 Half ball cage By 10 2.01 2465-0002-10 Small Tension Spring By 10 0.69 2465-0001-10 Tension spring By 10 0.90 5880-0004-01 Leveling Motor Assy 15.27...
  • Page 67 Batteries sub-assy & PCBoard Code ODA reference Designation U. S. LIST $ 2680-0016-10 Cable, 2 ways, L160mm with Molex 1.11 Housing 22-01-2025/6471 & 51004- 0200, UL1061, AWG24 2680-0017-10 Cable, 5 ways, L130mm with Molex 2.46 Housing 51004-0500, UL1007 5530-0018-03 Interface PCBA, LT w/ PIC16F648 127.06 2730-0025-10 Rechargeable Battery Pack, D-size, cable...
  • Page 68 Base properties Code ODA reference Designation U. S. LIST $ 5330-9022-01 Bottom Housing Sub-Assembly, LT300 157.56 2300-0011-01 Adjustable leg 1.65 2310-1121-01 Adjustment Knob w/ Insert 5.31 2380-0007-02 « YELLOW » sticker only By 10 1.32 5330-0038-01 Switch ON/OFF sub-assy 36.72 2480-0010-01 O-ring, 5x1mm By 10...
  • Page 69 LT 300 6/07/05 10:12 Page 15 ACCESSORIES Laser detectors Detectors are recommended when it is difficult to see the laser beam (outdoor, bright light,…) MR50 Detector • Overview of the detector 1. LCD Screen (one front + one back) 2. Detection window 5.
  • Page 70 LT 300 6/07/05 10:12 Page 16 • Using the MR50 detector 1. Press the On/Off button to turn on the detector 2. Press on the middle button to select the detection mode of the detector. The coarse mode is the default mode when the MR50 is turned on.
  • Page 71 LT 300 6/07/05 10:12 Page 17 MR80S Detector / Remote control : The MR80S can be used as a remote control as well as a laser detector. Key Detector mode Remote mode Scanning mode On/Off Change to remote mode Coarse / Fine...
  • Page 72 LT 300 6/07/05 10:12 Page 18 • Using the MR80S in detector mode 1. Press the On/Off button to turn the detector on. 2. Press on the middle button (2) to select the detection mode (fine or coarse). A symbol appears either on the right or left side of the LCD display in order to inform you of the selected mode.
  • Page 73 LT 300 6/07/05 10:12 Page 19 • MR80S Specifications : Operating distance in detector mode 180 meters Operating distance in remote mode 30 meters inside Sound 3 sound levels – Mute, normal and high Displays LCD (front and rear) Power Alkaline battery 9 V.
  • Page 74 LT 300 6/07/05 10:12 Page 20 Tripods The LT300 laser can be mounted on a 5/8-11 flat head tripod. You can also use a tripod with an elevating column to adjust the height of the laser. Other accessories • Laser-enhancing glasses improve the visibility of the laser beam in bright light conditions.
  • Page 75 FLAT RATE SCHEDULE July 1, 2005 The hourly labor rate charged by the Factory Service Center in Jacksonville, Arkansas, is $70.00 per hour. The other service centers may vary slightly. This rate, multiplied by the number of allowed hours from the Flat Rate Schedule, will be the total of the labor charges on most repair invoices.
  • Page 76 FLAT RATE SCHEDULE June 1, 2005 LT 200 / LT 300 Hours Job No. Description Required Clean and Calibrate and leak test (non-warranty). JA01 Repair and/or replace any external parts; repair or replace internally connected JA02 parts such as keypad, top plate, or rotating head. Clean and calibrate and leak test Repair and/or replace internal parts such as PCB, Module or housing.
