Summary of Contents for Agatec MC3

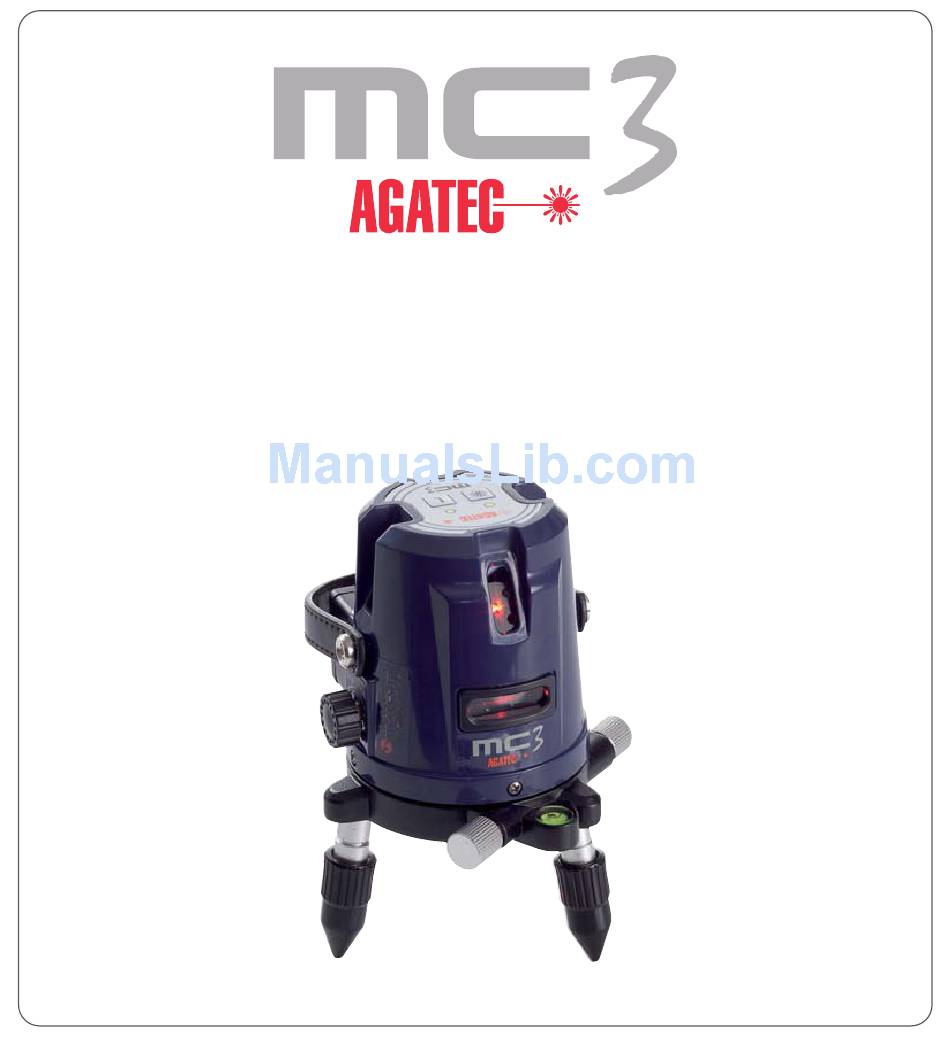

- Page 1 Automatic Laser...
-
Page 2: Table Of Contents
Table of contents General description Case Control panel Laser receiver First steps Horizontal alignment Vertical alignment Plumb beam Safety directions General Limits of Use Responsibilities Hazards of Use Laser Classification Accuracy control Warranty Technical data... -
Page 3: General Description
Congratulations! On choosing this Agatec instrument. Agatec provides measuring instruments of precision and quality. Contributions from professional end users enable us to offer innovative, easy-to-use equipment. Agatec MC3 Professional laser lines/cross with ultra visible laser beams due to the use of powerful laser diodes. -
Page 4: Control Panel
Control panel 9. outdoor = manual receiver mode 10. laser lines Laser receiver (optional) 11. on-off button 12. audible signal on or off 13. receiver area... - Page 5 IMPORTANT! Read the instructions for use carefully before using the instrument. Keep them in a safe place for consultation when necessary. 1. Whether on or off, keep the instrument out of reach of children. 2. This equipment is a high quality precision instrument which must be handled with care. 3.
-
Page 6: First Steps
First steps • Remove any protective films where applied. • Open the battery compartment and insert batteries, taking care to observe the indicated polarity. • Turn the transit locking system (3) to the "ON" position. The pendulum levelling mechanism is thus released, and the instrument is able to align itself on its own. -
Page 7: Vertical Alignment
Vertical alignment • After disengagement of the pendulum locking system, and provided the instrument is within its levelling range, the vertical laser lines can be activated using button "L". These are mutually at right angles (90°). • Automatic levelling means that the laser lines are perfectly vertical and at right angles to the horizontal laser line. -
Page 8: Safety Directions
• Use after misappropriation. • Use of products with obviously recognizable damages or defects. • Use with accessories from other manufacturers without the prior explicit approval of Agatec. • Inadequate safeguards at the work site, for example when using on or near roads. -
Page 9: Limits Of Use
RESPONSIBILITIES Manufacturer of the product Agatec SAS, 21, boulevard Littré, F-78600 Le Mesnil Le Roi, hereinafter referred to as Agatec, is responsible for supplying the product, including the user manual and original accessories, in a completely safe condition. -
Page 10: Hazards Of Use
HAZARDS OF USE WARNING The absence of instruction, or the inadequate imparting of instruction, can lead to incorrect or adverse use, and can give rise to accidents with far-reaching human, material, financial and environmental conse- quences. Precautions: All users must follow the safety directions given by the manufacturer and the directions of the person respon- sible for the product. - Page 11 Precautions: When setting-up the product, make sure that the accessories are correctly adapted, fitted, secured, and locked in position. Avoid subjecting the product to mechanical stress. CAUTION During the transport, shipping or disposal of batteries it is possible for inappropriate mechanical influences to constitute a fire hazard.
-
Page 12: Laser Classification
• If batteries are damaged or are heated strongly, they can explode and cause poisoning, burning, corrosion or environmental contamination. • By disposing of the product irresponsibly you may enable unauthorized persons to use it in contravention of the regulations, exposing themselves and third parties to the risk of severe injury and rendering the environment liable to contamination. -
Page 13: Accuracy Control
ACCURACY CONTROL Monitor horizontal levelling 1. Choose a room ±10 m long 2. Place the instrument next to wall no. 1. 3. Switch on the instrument and let it self-level. 4. Mark the horizontal line in the middle of the cross on wall no 1. 5. -
Page 14: Warranty
This product is subject to the terms and conditions set out in the International Limited Warranty which you can download from the Agatec home page at www.agatec.com or collect from your Agatec distributor. The foregoing warranty is exclusive and is in lieu of all other warranties, terms or conditions, express or... -
Page 15: Technical Data
Technical data Laser wavelength 635 nm Class II <1 mW Accuracy ± 2 mm/10 m Levelling range ± 3° Levelling Magnetic pendulum system Battery life 12 hr Power supply 3 x AA alkaline batteries Dimensions 160 mm x 100 mm diameter Mass 0.700 kg Operating range...
