Pico Macom WS3G-2 Specifications

WS3G
-Series
WS3G-3
WS3G-
T
ru-Spec's WS3G-Series diode steered splitters offer superb performance over a bandwidth of 5MHz to 3GHz for present and
future requirements of wide-bandwidth residential and commercial applications. Insertion loss, isolation and return loss per-
formance ensure high-quality signal transfer. The diode-protected circuitry allows the DC power to pass from any output to
the input and prevents DC backfeeding. Rugged construction provides years of reliable service.

Features

• 5MHz to 3GHz wideband operation suitable for digital
and analog applications.
• Diode-steered provides circuitry protection while allowing
DC power to pass from output ports to input port without
DC backfeeding.
• Flat frequency response for consistent system performance.
• High-performance printed circuit board provides improved
hum modulation and intermodulation performance to
ensure superior picture quality.
• Solder-back case provides -130dB RFI shielding.
www.picomacom.com
WS3G-2
Series

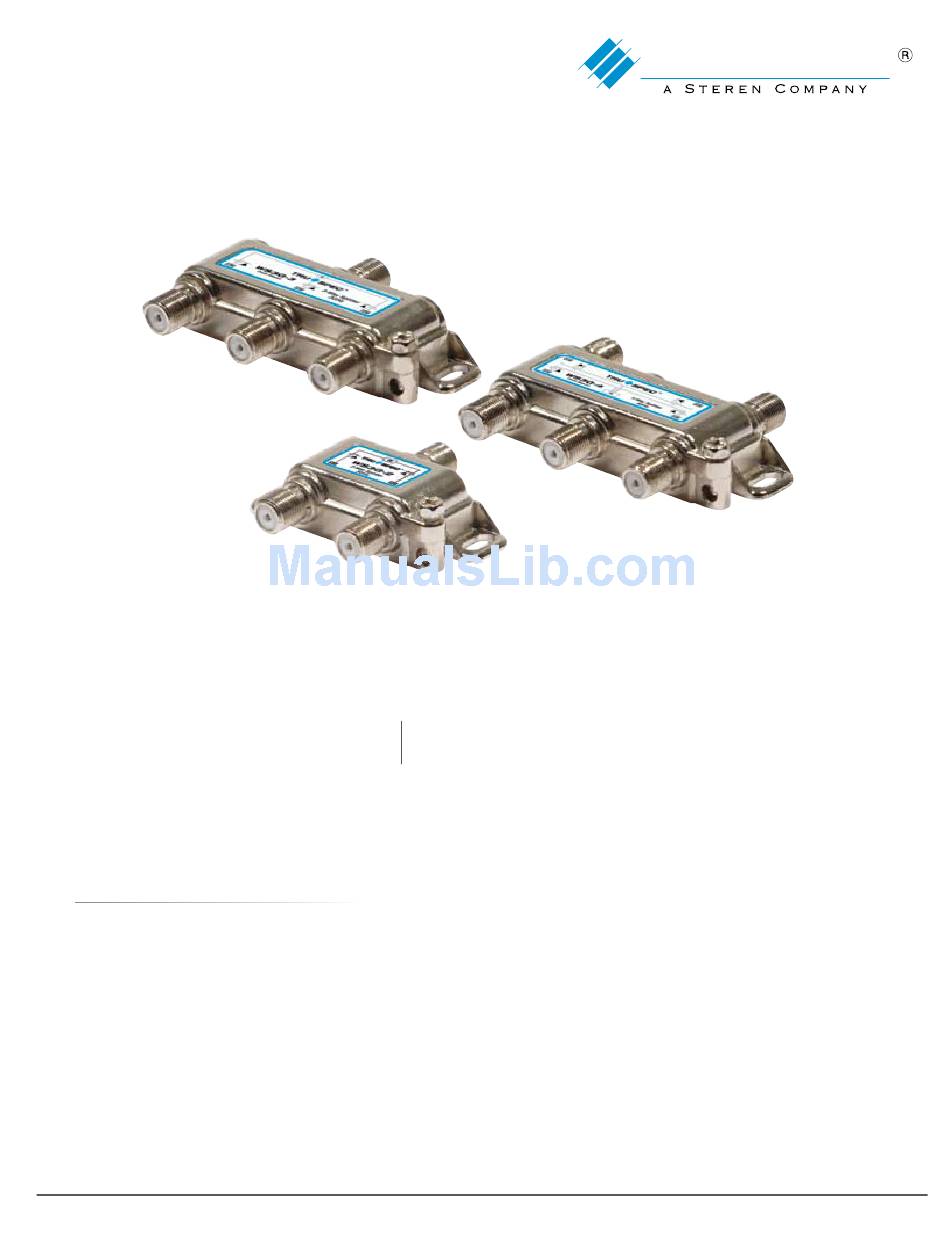

3GHz Satellite/Broadband Diode Steered Splitters
Specifications Subject to Change © Copyright 2008 Pico Macom, Inc.
6260 Sequence Drive San Diego, CA 92121
Ph: 858-546-5050 Toll Free: 800-421-6511 Fax: 858-546-5051
PICO MACOM
WS3G-4
• Heavy-duty case and nickel plating ensure long-lasting per-
formance in harsh environments.
• Flat-end ports provide for superior cable-to-port interface for
maximum signal transfer.
