Pico Macom TSST-2150-1 Specifications

DISTRIBUTION
Passive Components
High frequency broadband range
40-2150MHz L-Band suitable for
analog and digital satellite
applications
Capacitor coupling circuitry
effectively blocks DC voltage at
tapped ports while DC power is
allowed passage from input to
output for remote LNB-powering
applications and powering the
antenna preamplifier directly
from the headend
High-performance printed board
circuitry provides low intermod-
ulation distortion to ensure
excellent digital performance
Solder-back cover-plate provides
maximum EMI-RFI shielding
>-130dB eliminating signal
ingress to guarantee distortion
free pictures
Thick tin-coated zinc-alloy
diecast housing ensures excel-
lent ground bonding and long
corrosion-free service life in
indoor/outdoor applications
1-inch centered / ˝ long preci-
1
2
sion machined F-connector
threads ensure improved port-
to-connector interface and
accommodate external security
devices
Internal seizing pins provide
improved connectivity to con-
nector center lead
Mounting tabs with provided
mounting screws enables easy
installation
Cast-in integrated ground block
with convenient mounting
screws enables cost-effective
installations
www.picomacom.com

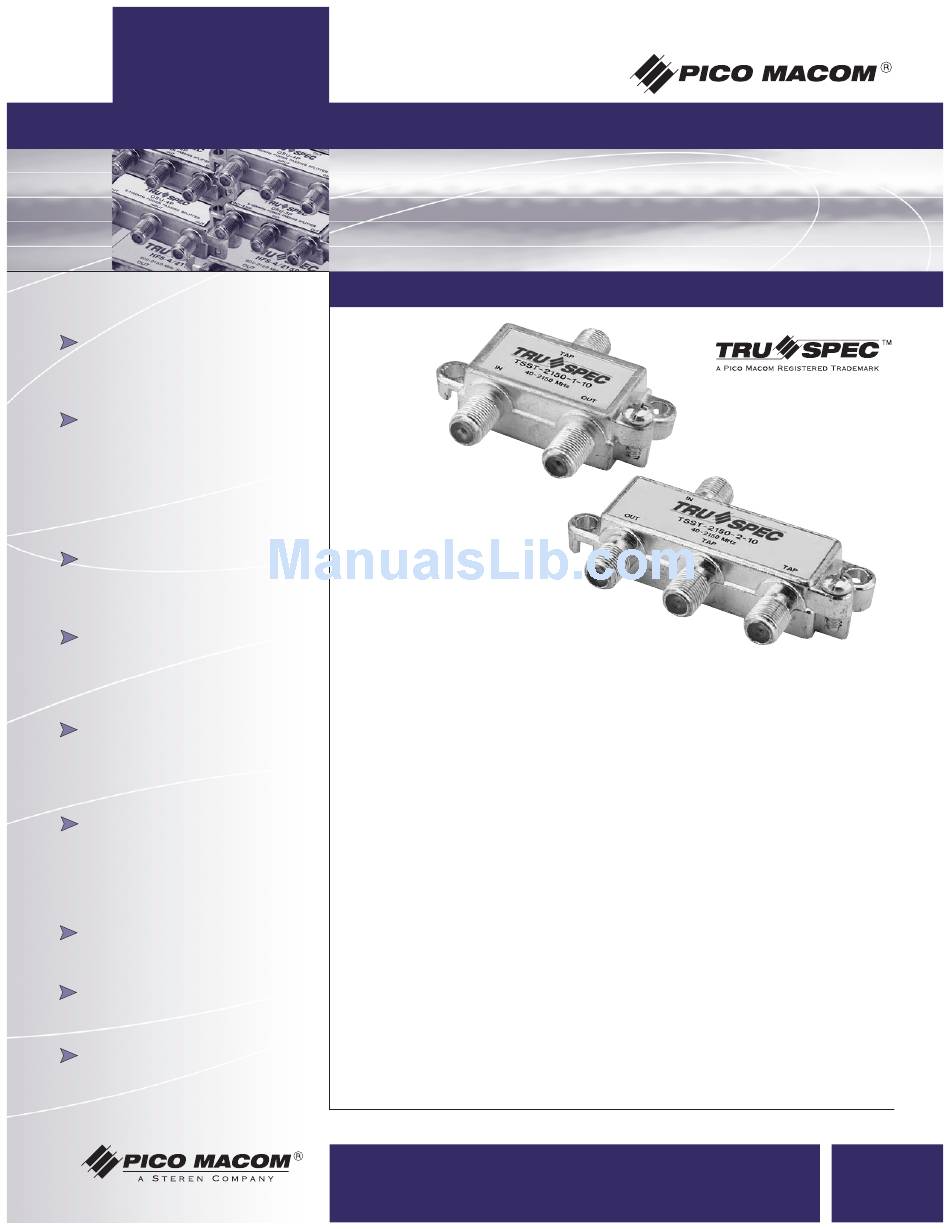

TSST2150
40-2150 MHz Directional Couplers
TSST-2150-1
TSST2150
40-2150 MHz Directional Couplers
TruSpec's TSST2150-series professional-commercial grade high frequency Directional
Couplers are manufactured to precise performance specifications to provide low inser-
tion loss, high isolation and return loss performance. These directional couplers are
ideally suited for SMATV systems, combining satellite with terrestrial signals and used
in both 950-1450 MHz satellite distribution systems and stacked polarity 950-2150MHz
satellite systems. TSST2150-series taps are used in applications requiring the bulk of
the signal to pass through one port while reduced signal passes from the tapped port.
This feature ideally suits these taps for systems using a looped or tree and branch
architectures. DC power passes through the input-output ports for full flexibility in
remote LNB powering applications while blocking DC power through the tapped
ports. Our advanced printed board circuitry ensures high-quality analog or digital
signal transfer. Precision machined F-port threads ensure easy connector installation
and re-moval, and improved port-to-connector interface. Internal seizing pins provide
excellent connectivity to connector center lead. TSST2150-series directional couplers
feature a solder-back cover-plate to provide the highest possible EMI-RFI shielding
>-130dB eliminating signal ingress and providing a full environmental seal. A tin-plated
coating over a zinc-alloy diecast housing ensures excellent corrosion resistance.
Each TSST2150 splitter is fully tested at the factory to fully comply with precise
quality standards.
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
Series
TSST-2150-2
Series
C-17
Rev. 12/02
