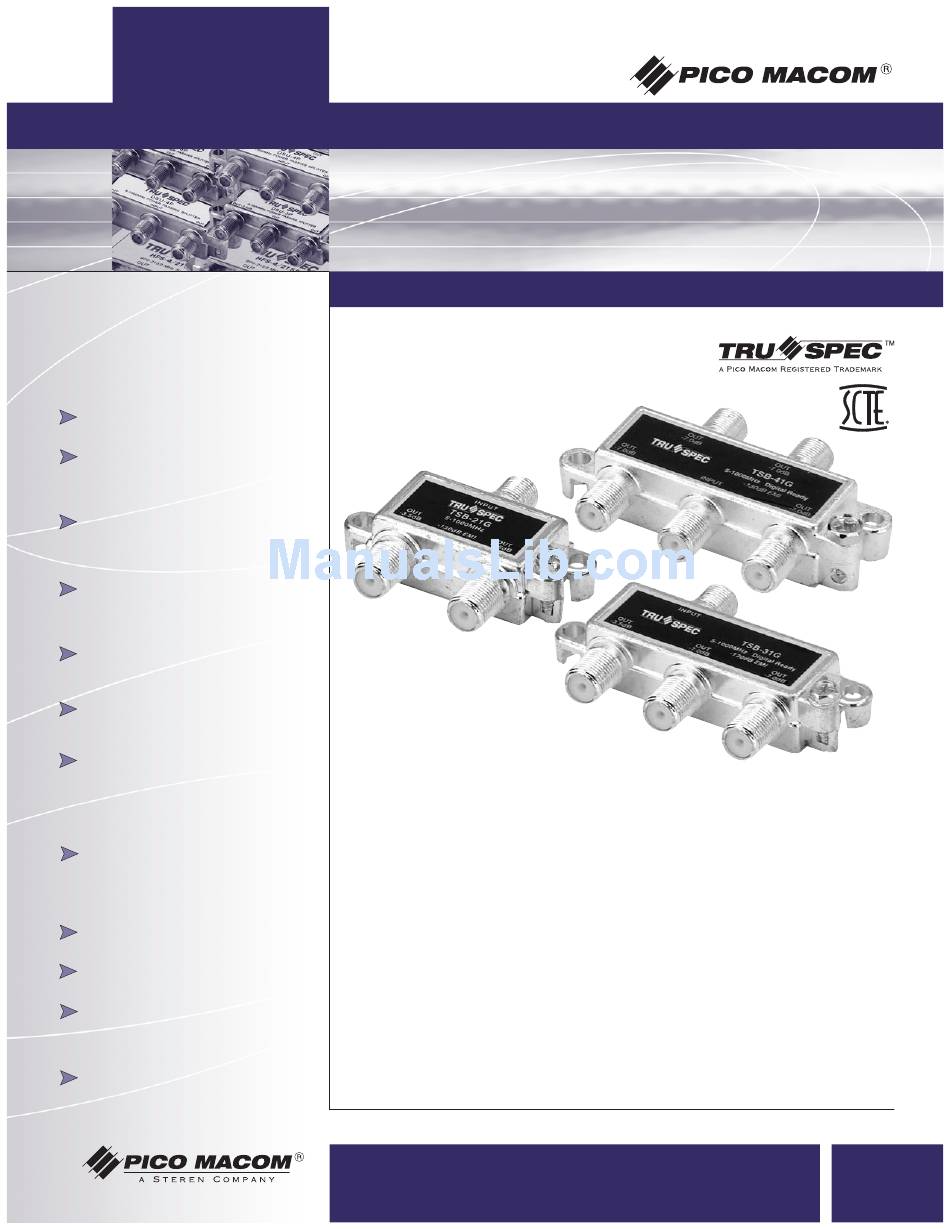

Pico Macom TSB-21G Specifications

DISTRIBUTION
Passive Components
Digital-Ready Broadband 5-1000MHz
frequency range
Solder-back cover-plate provides
maximum EMI-RFI shielding >-130dB
eliminating signal ingress to guarantee
distortion free pictures
Thick tin-coated zinc-alloy diecast
housing ensures excellent ground
bonding and long corrosion-free service
life in indoor/outdoor applications
High-performance printed board circuitry
provides low intermodulation distortion
>-100dB to ensure excellent digital per-
formance
High isolation >-40dB at 5-45MHz sub-
bands provides for high level upstream
signals
TSB-1G-series features capacitor cou-
pling circuitry at all ports for effective
DC voltage blocking
TSB-1GDC-series provide DC power
passage to one port while blocking DC
power to all other ports provides for
remote powering applications and pow-
ering the antenna preamplifier directly
from the headend
1
1-inch centered / ˝ long precision
2
machined F-connector threads ensure
improved port-to-connector interface
and accommodate external security
devices
Internal seizing pins provide improved
connectivity to connector center lead
Mounting tabs with provided mounting
screws enables easy installation
Cast-in integrated ground block with
convenient 3-way mounting screws
(Slotted, Hex, Phillips) enables cost-
effective installations
Performance tests conducted compliant
with SCTE standards IPS TP-201, 202,
203, 403A, 406
www.picomacom.com
1GHz 130dB EMI Digital CATV Splitters
TSB-21G
TSB-21GDC
TSB-1G
1GHz 130dB EMI Digital CATV Splitters
Manufactured to precise performance standards, TruSpec's TSB-1G series 1GHz
professional-commercial grade CATV splitters provide superb performance unsur-
passed by competitors' equivalent models. Applications range from residential to
MDU installations in international and domestic cable distribution systems. Our
advanced printed board circuitry includes special ferrite core material guaranteeing
unsurpassed insertion loss, optimal isolation and return loss performance to 1GHz
ensuring high-quality analog or digital signal transfer. TSB-1G series F-port threads
are precision machined, ensuring easy connector installation and removal, and
improved port-to-connector interface. Internal seizing pins ensure excellent connectivity
to connector center lead. The TSB-1G series splitters feature a solder-back cover-plate
to provide the highest possible EMI-RFI shielding >-130dB eliminating signal ingress
and providing a full environmental seal. A thick tin coating over its zinc-alloy diecast
housing ensures excellent corrosion resistance. Each TSB-1G splitter is fully tested at
the factory and certified to SCTE standards.
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
TSB-1G
Series
Series
COMPLIANT
TSB-41G
TSB-41GDC
TSB-31G
TSB-31GDC
C-3
Rev. 12/02
