Pico Macom TSB-21GFR Specifications

DISTRIBUTION
Passive Components
Premium performance Digital-Ready
Broadband 5-1000MHz frequency range
Gold-plated beryllium-copper 360° round
seizing pin maximizes center conductor sur-
face contact, provides excellent retention
even after repeated entry, minimizes electrol-
ysis to dramatically improve signal transfer
for superb return loss performance
Reduced aperture flat-ended ports compliant
to SCTE/ANSI IPS-SP-407 standard maximize
connector-shield to connector-surface-contact
and reduces moisture migration
High-performance printed board circuitry
including capacitor coupling at all ports pro-
vides effective DC voltage blocking and
excellent hum modulation and intermodulation
parameters to ensure excellent digital/HDTV
performance and signal quality
Ultra-low intermodulation distortion (second
harmonic) >-105dB with +55dBmV carrier
input for consistent interference free Video
and Data distribution after five 6kV A3 surge
spikes applied at each port
High isolation >-40dB at 5-45MHz sub-bands
provides for high level upstream signals
Solder-back cover-plate provides maximum
EMI-RFI shielding >-130dB eliminating signal
ingress to guarantee distortion free pictures
Thick tin-coated zinc-alloy diecast housing
ensures excellent ground bonding and long
corrosion-free service life in indoor/outdoor
applications
6kV 200A 0.5u-100kHz category A3 ring-wave
surge withstand complies with SCTE IPS-TP-
210 rev-4 standard against costly accidental
damage to equipment
1
1-inch centered / ˝ long precision machined
2
F-connector threads ensure improved port-
to-connector interface and accommodate
external security devices
Mounting tabs with provided mounting
screws enables easy installation
Cast-in integrated ground block with conven-
ient 3-way mounting screws (Slotted, Hex,
Phillips) enables cost-effective installations
Performance tests conducted conforming
with SCTE standards IPS TP-201, 202, 203,
206, 210, 403A, 406; IPS-SP-206, 407; ANSI-
SCTE TP-206-2000
www.picomacom.com

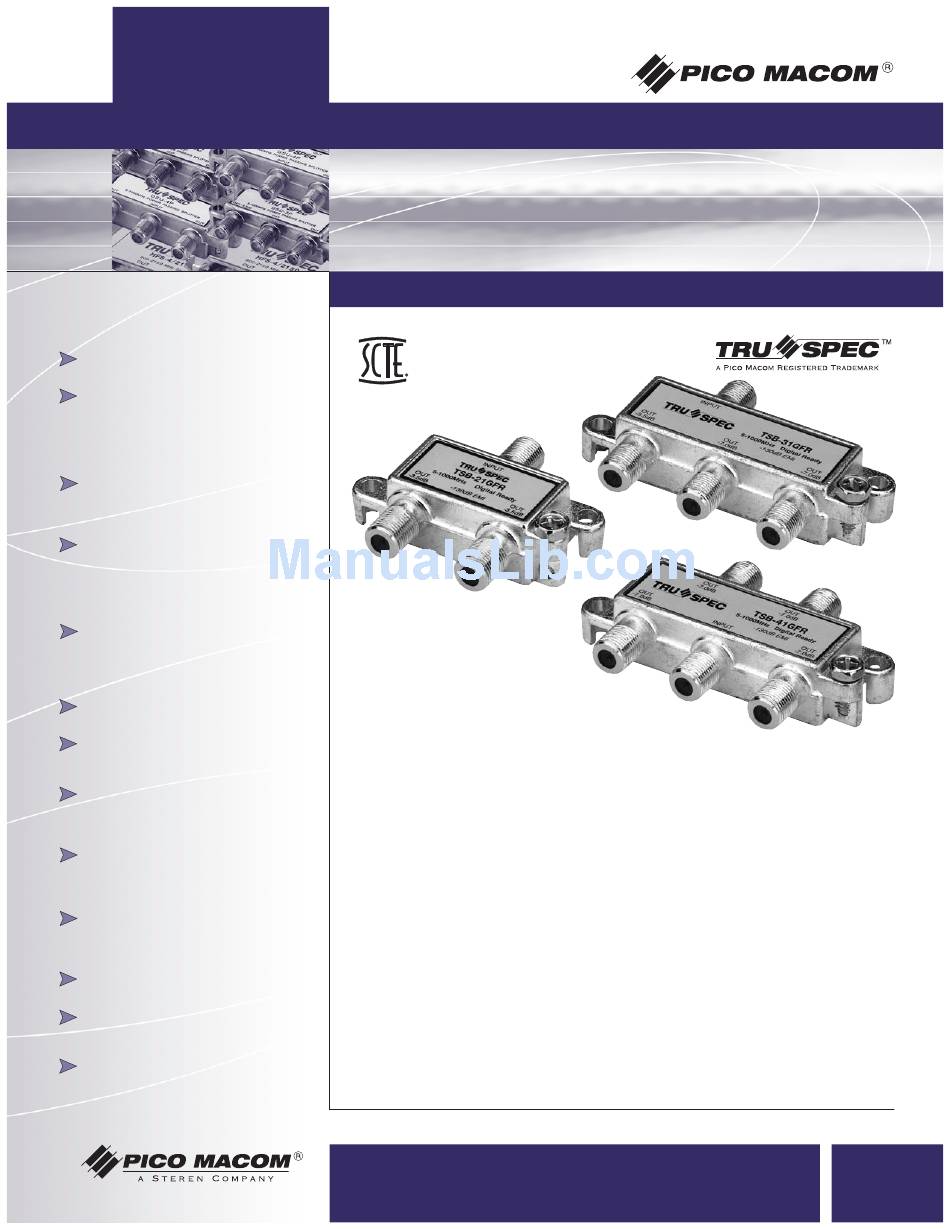

TSB-1GFR
1GHz 130dB EMI Premium Digital CATV Splitters
COMPLIANT
TSB-21GFR
TSB-1GFR
1GHz 130dB EMI Premium Digital CATV Splitters
Engineered and manufactured to exacting standards, TruSpec's TSB-1GFR series 1GHz
Premium CATV Digital-Ready splitters provide State-of-the-Art performance virtually unmatched
by competitors' equivalents. Applications include usage with high-output devices such as cable
modems and telephony in residential applications and local origination modulators used with
surveillance equipment in MDU applications. Our advanced printed board circuitry, including
special ferrite-core material, dramatically reduces the effects of non-linearity and intermodulation
associated with saturated ferrite-cores causing TV tuner overdrive and visible snow and noise in
TV pictures. Capable of withstanding a category A3 6kV ring wave, TruSpec's TSB-1GFR split-
ters provide protection against costly equipment damage. Overall, these splitters guarantee
unsurpassed insertion loss, optimal isolation and return loss performance to 1GHz ensuring
high-quality analog or digital signal transfer. TSB-1GFR series F-port threads are precision
machined, ensuring easy connector installation and removal, and improved port-to-connector
interface. Small aperture flat-ended ports maximize surface contact and provide an effective
barrier against moisture migration. High retention 24K gold plated 360° round seizing pins maxi-
mize center-conductor surface contact to significantly reduce insertion loss and signal ingress and
egress. The TSB-1GFR series splitters feature a solder-back cover-plate to provide the highest
possible EMI-RFI shielding >-130dB eliminating signal ingress and providing a full environmental
seal. A thick tin coating over its zinc-alloy diecast housing ensures excellent corrosion resistance.
Each TSB-1GFR splitter is fully tested at the factory and certified to SCTE standards.
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
Series
TSB-31GFR
TSB-41GFR
Series
C-1
Rev. 12/02
