Pico Macom TSPPS-2150-2 Specifications

DISTRIBUTION
Passive Components
High frequency broadband
range 40-2150MHz L-Band
suitable for analog and digital
satellite applications
DC power passage to all ports
provides for remote LNB-pow-
ering applications and power-
ing the antenna preamplifier
directly from the headend
Solder-back cover-plate pro-
vides maximum EMI-RFI
shielding >-130dB eliminating
signal ingress to guarantee
distortion free pictures
Tin-plated zinc-alloy diecast
housing ensures excellent
ground bonding and long cor-
rosion-free service life in
indoor/outdoor applications
High-performance printed
board circuitry provides low
intermodulation distortion to
ensure excellent digital
performance
1
1-inch centered / ˝ long preci-
2
sion machined F-connector
threads ensure improved port-
to-connector interface and
accommodate external security
devices
Internal seizing pins provide
improved connectivity to con-
nector center lead
Mounting tabs with provided
mounting screws enables easy
installation
Cast-in integrated ground
block with convenient mount-
ing screws enables easy and
cost-effective installations
www.picomacom.com
TSPPS2150

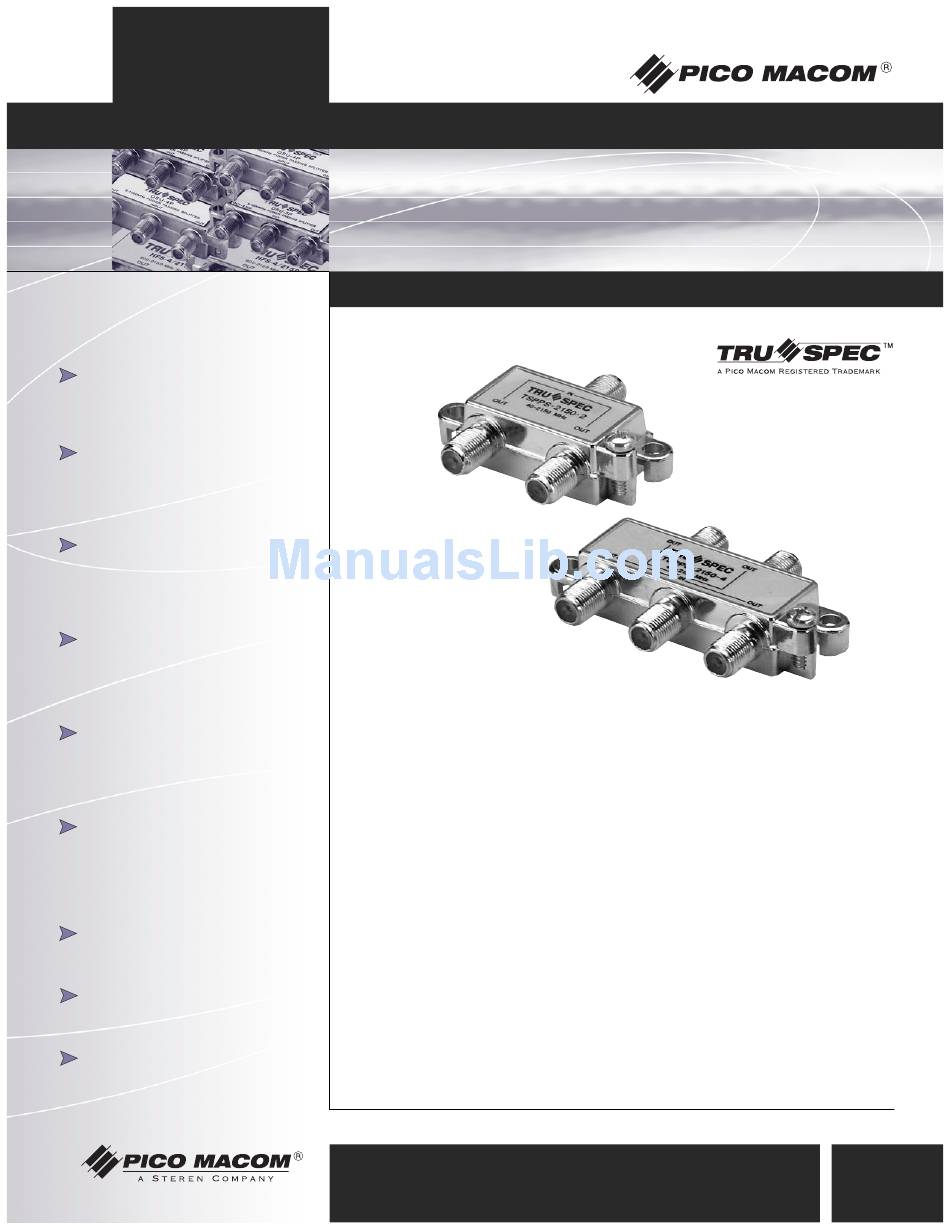

40-2150MHz 130dB EMI Satellite Splitters
TSPPS-2150-2
TSPPS2150
40-2150MHz 130dB EMI Satellite Splitters
TruSpec's TSPPS2150-series professional-commercial grade high frequency
satellite splitters are manufactured to precise performance specifications to pro-
vide low insertion loss, high isolation and return loss performance. These split-
ters are ideally suited for headends where satellite signals are split to multiple
receivers and used in both 950-1450 MHz satellite distribution systems and
stacked polarity 950-2150MHz satellite systems. DC power passes through all
ports for full flexibility in remote LNB powering applications. Our advanced printed
board circuitry ensures high-quality analog or digital signal transfer. Precision
machined F-port threads ensure easy connector installation and removal, and
improved port-to-connector interface. Internal seizing pins provide excellent con-
nectivity to connector center lead. TSPPS2150 series splitters feature a solder-back
cover-plate to provide the highest possible EMI-RFI shielding >-130dB eliminating sig-
nal ingress and providing a full environmental seal. A yellow-chromate coating over a
zinc-alloy diecast housing ensures excellent corrosion resistance. Each
TSPPS2150 splitter is fully tested at the factory to fully comply with precise quality
standards.
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
Series
TSPPS-2150-4
Series
C-11
Rev. 12/02
