Summary of Contents for Zodiac RV 5500 iQ

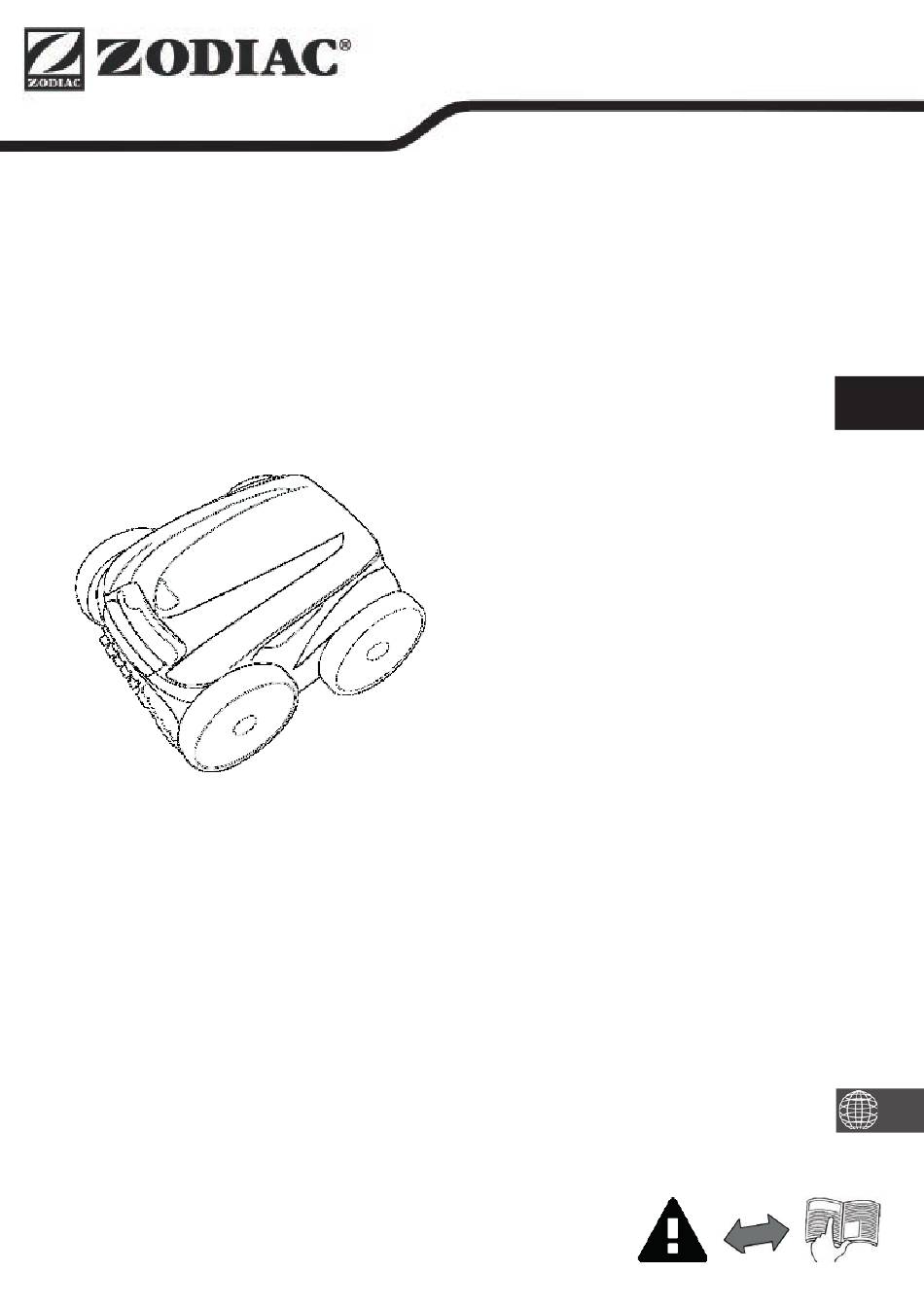

- Page 1 RV 5500 iQ Instructi ons for installati on and use - English Electric pool cleaner Translati on of the original instructi ons in french More documents on: www.zodiac-poolcare.com H0605500.A - 2017/03 - EC11-...
- Page 2 fi re. • Zodiac® Heat pump, fi ltrati on pump and fi lter appliances are compati ble with most commonly used pool water treatment systems. • Do not touch the fan and/or moving parts or insert a rod or your fi ngers in the vicinity of the moving parts while the appliance is in operati on.
-
Page 3: Table Of Contents
• Distributi ng or modifying this document in any way without authorisati on from Zodiac® is prohibited. • Zodiac® is constantly developing its products to improve their quality; therefore, the informati on contained in this document may be modifi ed without noti ce. -
Page 4: ❶ Specifi Cati Ons
❶ Specifi cati ons 1.1 I Descripti on (x2) (x2) (x2) (x2) RV 5500 iQ Cleaner + fl oati ng cable Front/rear driving wheels (4WD) Control unit Caddy kit 100µ fi ne debris fi lter 200µ large debris fi lter 60µ... -
Page 5: I Technical Specifi Cati Ons And Marking
1.2 I Technical specifi cati ons and marking 1.2.1 Technical specifi cati ons RV 5500 iQ Control unit supply voltage 220-240 V ac, 50 Hz Cleaner supply voltage 30 V dc Maximum absorbed power 150 W Cable length 21 m... -
Page 6: ❷ Installati On 5 En
❷ Installati on 2.1 I Set-up : Control unit 3.5 metres Minimum : Caddy : Cleaner : Floati ng cable : Plug : Mains cable : "iAquaLink™" remote control... -
Page 7: Assembling The Caddy
2.2 l Assembling the caddy • Tool-less assembly (x2) (x2) (x2) Tighten the nut loosely Finish ti ghtening the nut... -
Page 8: ❸ General Use
❸ General use 3.1 I Operati ng principle The cleaner is independent of the fi ltrati on system and can therefore operate autonomously. It just simply needs to be connected to the mains power supply. It fi nds the best route to move around and clean the areas of the pool for which it has been designed (depending on the model: bott om, walls, water line). -
Page 9: I Electrical Supply Connecti Ons
3.4 I Electrical supply connecti ons • The use of an electrical extension is prohibited when connecti ng the control unit. • Make sure that the socket is easily accessible at all ti mes and is protected from rain or splashes. •... -
Page 10: The Control Unit
3.5 l The control unit The control unit allows the main functi ons to be used and the cleaner to be connected to the home Wi-Fi, see "❹ Control using the iAquaLink™ app". LED on when the connecti on is confi rmed : LED on when the Wi-Fi LAN: Home Wi-Fi connecti on Direct mode is acti ve... -
Page 11: I Starti Ng And Stopping A Cleaning Cycle
3.6 I Starti ng and stopping a cleaning cycle • Bathing is prohibited while the device is in the pool. • Do not use the device during a shock chlorinati on. Wait unti l the chlorine level has reached the recommended value before immersing the cleaner. •... - Page 12 3.6.2 Ending the cleaning cycle • To prevent damaging the equipment : Do not pull on the cable to remove the appliance from the pool. Use the handle. - Do not leave the appliance to dry out in sunlight aft er use. - Store all the elements away from sunlight, humidity and bad weather.
-
Page 13: ❹ Control Using The Iaqualink™ App
❹ Control using the iAquaLink™ app Cleaner Mobile device Domesti c Wi-Fi control unit (smartphone or tablet) Robot cleaner network The iAquaLink™ app is available for iOS and Android systems. With the iAquaLink™ app you can control the cleaner from any locati on at any ti me and have the benefi t of advanced functi ons such as additi onal programming and troubleshooti ng assistance. -
Page 14: I Iaqualink™ Remote Control
• It can take several minutes to connect. • If an error message appears or if the connecti on sti ll isn't made, refer to the table"6.3 I Diagnosti c du contrôle à distance iAquaLink™". • It is possible to personalise the cleaner's name, so that it can be found easily in the "My systems" page if there are several devices connected to the iAquaLink™... - Page 15 4.3.2 Start / Stop cleaning and adjust the cleaning ti me • During confi gurati on of the cleaner, choosing the pool shape allows customised cleaning modes to be set up By default, the cleaning surface is Floor, Walls and Water Line. •...
- Page 16 4.3.5 Remove from water mode"Lift System" The Lift System functi on was designed to facilitate removing the cleaner from the water. It may be acti vated at any moment, during or at the end of a cleaning cycle. • Only acti vate the Lift System functi on if the cleaner in in view. •...
- Page 17 4.3.7 Error messages and troubleshooti ng - in the iAquaLink™ app If an error is detected, a warning symbol will be displayed in the home screen. • Press the warning symbol to display on-line troubleshooti ng help, voir "6.2 I Error codes". •...
-
Page 18: ❺ Maintenance
❺ Maintenance • The device must be cleaned regularly using clean or slightly soapy water. Do not use solvents. • Rinse the device generously using clean water. • Do not let your device dry in the sun by the pool. Tip: replace the fi... -
Page 19: I Cleaning The Propeller
5.2 I Cleaning the propeller To avoid serious injury: • Disconnect the cleaner from the power. • You must wear gloves when doing maintenance on the propeller • Loosen the screw on the grille (see image • Remove the grille (see image •... -
Page 20: I Replacing The Brushes
5.3 I Replacing the brushes • Each brush is equipped with wear indicators; the distance between the indicators and the end of the brush indicates whether the brush is in good conditi on (see image • The brushes are worn and should be replaced when the wear indicators appear as shown in image •... -
Page 21: I Changing The Tyres
5.4 I Changing the tyres... -
Page 22: ❻ Troubleshooti Ng
❻ Troubleshooti ng • Before you contact your retailer, we invite you to carry out some simple checks for yourself in the event of a malfuncti on, using the following tables. • If the problem conti nues contact your retailer. •... -
Page 23: I Error Codes
6.2 I Error codes Control Unit In-App Display Suggested Soluti on Display • Check for any small debris or cable impeding the brushes from turning freely. Pump Motor • Check for corrosion or bent pins in the power cable connecti on area. •... -
Page 24: I Troubleshooti Ng The Connecti On To The Iaqualink™ App
6.3 I Troubleshooti ng the connecti on to the iAquaLink™ app • Before you connect to a new Wi-Fi network, re-initi alise the parameters of your current Wi-Fi network or simply change the Wi-Fi password. You will have to re-make the connecti on between the control unit and the new Wi-Fi network, see "4.2 I First-ti me cleaner confi... - Page 25 Control unit status Possible causes Soluti ons • Connecti on problem Contact your Internet service provider. with the Local • Only one LED is • Disconnect the home Wi-Fi network for 10 seconds. Wi-Fi network or on: LAN or WEB. Re-connect it and see whether the LEDs come back on.
- Page 26 Votre revendeur Your retailer Modèle appareil Appliance model Numéro de série Serial number Trouvez plus d’informations et enregistrez votre produit sur More informations and register you product on www.zodiac-poolcare.com ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
