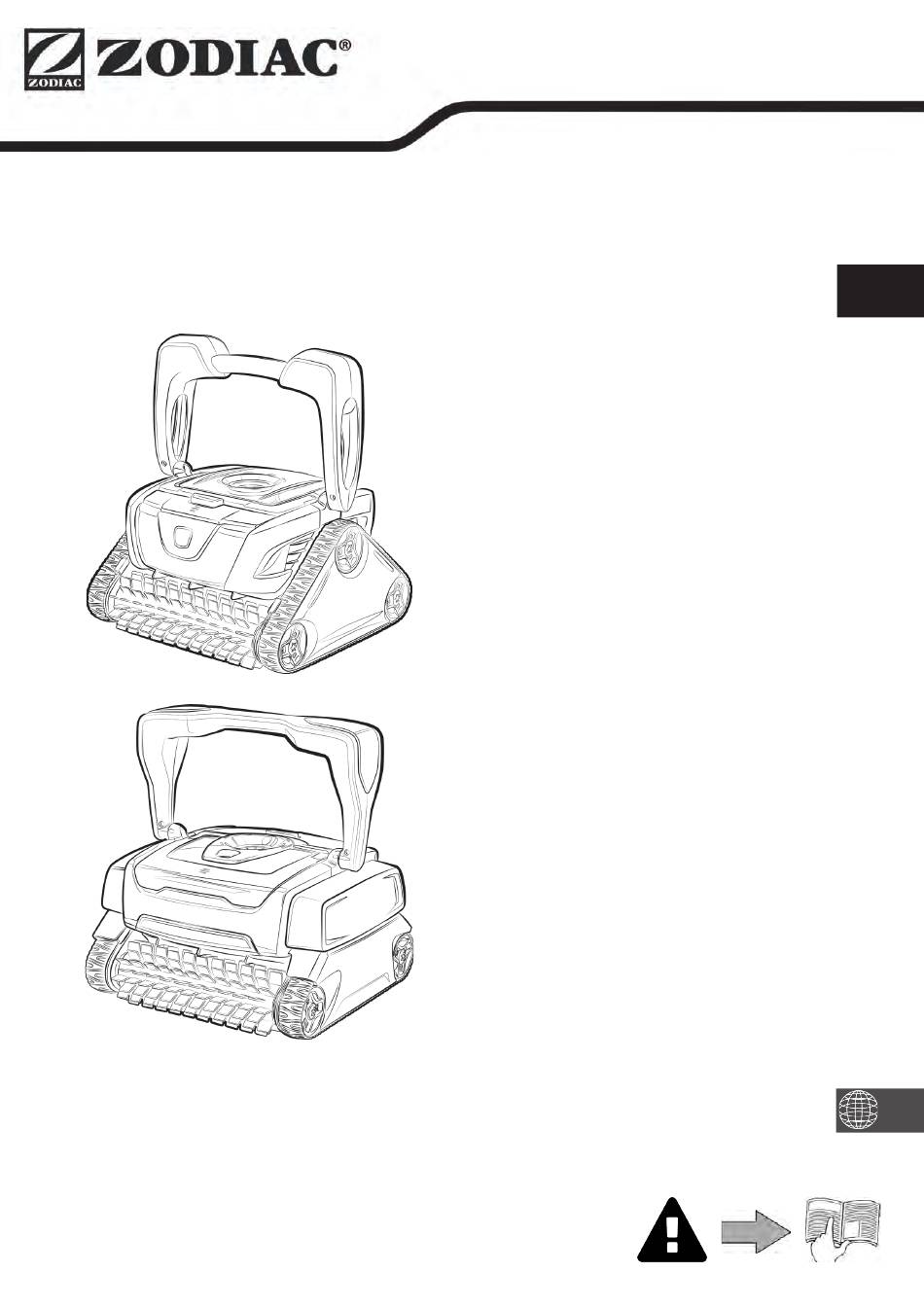

- Page 1 CyclonX™ Installation and user manual - English Electric cleaner Translation of the original instructions in French More documents on: www.zodiac.com H0426500_REVF - 2019/11 - EM11 --...
- Page 3 WARNINGS GENERAL WARNINGS • Failure to respect the warnings may cause serious damage to the pool equipment or cause serious injury, even death. • Only a person qualified in the technical fields concerned (electricity, hydraulics or refrigeration) is authorised to perform this procedure. The qualified technician working on the appliance must use/wear personal protective equipment (such as safety goggles and protective gloves, etc.) in order to reduce the risk of injury occurring when working on the appliance.
- Page 4 WARNINGS ASSOCIATED WITH ELECTRICAL APPLIANCES • The power supply to the appliance must be protected by a dedicated 30 mA residual current device, complying with the standards and regulations in force in the country in which it is installed. • Do not use any extension lead when connecting the appliance; connect the appliance directly to a suitable power supply.
-
Page 5: Table Of Contents
• The distribution or modification of this document in any way is prohibited, without prior authorisation from Zodiac®. • Zodiac® is constantly developing its products to improve their quality. The information contained herein may therefore be modified without notice. CONTENTS ❶... -
Page 6: ❶ Specifications
❶ Specifications 1.1 I Description (x2) (x2) (x2) (x2) RC 4030 - RC 4045 OC 3400 - RC 4100 RC 4300 - RC 4380 RC 4130 RC 4350 OC 3300 TILE RC 4401 RC 4402 RC CA43 - RC 4060 RC 4360 - RC 4370 RX 4350 RC 4400 - RX 4450... -
Page 7: I Technical Specifications And Parts List
OC 3300 TILE - OC 3400 RC 4030 - RC 4045 RC 4060 - RC 4380 RC 4400 RC 4100 - RC 4130 Symbol Description RC 4401 RC 4300 - RC 4350 RC 4402 RC 4360 - RC 4370 RX 4350 - RX 4450 - RC CA43 Start/ Stop the appliance "Control"... -
Page 8: ❷ Installation
1.2.2 Parts list : "Push'n'Go™" filter access hatch lock : Brushes : Tracks : Handle : See-through window (depending on model) : Floating cable : Cartridges ❷ Installation 2.1 I Set-up 3.5 metres Minimum : Control box : Caddy : Cleaner : Floating cable : Plug : Power cord... -
Page 9: I Attachment To The Base Or Caddy Assembly
2.2 I Attachment to the base or caddy assembly 2.2.1 Attachment to the base 2.2.2 Caddy assembly Tool-free assembly (x2) (x2) (x2) -
Page 10: ❸ Use
❸ Use 3.1 I Operating principle The cleaner is independent of the filtration system and can therefore operate autonomously. It just simply needs to be connected to the mains power supply. It finds the best route to move around and clean the areas of the pool for which it has been designed (depending on the model: bottom, walls, water line). -
Page 11: I Electricity Supply Connections
3.4 I Electricity supply connections To prevent all risks of electrocution, fire or serious injury, please comply with the following instructions: • Use of an electrical extension is prohibited when connecting the control box. • Make sure that the socket can be easily accessed at all times and is protected from rain or splashes. -
Page 12: I Starting The Cleaning Cycle
3.5 I Starting the cleaning cycle To prevent all risks of injury or equipment damage, comply with the following directives: • Bathing is prohibited when the appliance is in the pool. • Do not use the appliance during shock chlorination. •... - Page 13 3.5.4 Surface control • Check that the cleaner filter is clean so as not to affect the cleaner's behaviour. • Once the cleaning cycle has been launched, monitor the cleaner's behaviour when climbing the walls and when it brushes the water line. (Surface Control System) button at any time depending on the cleaner's behaviour: refer to the •...
-
Page 14: I Ending The Cleaning Cycle
3.6 I Ending the cleaning cycle • To prevent damage to the equipment: Do not pull on the cable to remove the appliance from the pool. Use the handle. - Do not leave the appliance to dry out in sunlight after use. - Store all the elements away from sunlight, humidity and bad weather. -
Page 15: ❹ Maintenance
❹ Maintenance To avoid serious injury: • Disconnect the cleaner from the power supply. 4.1 I Cleaning the cleaner • The appliance must be cleaned regularly using clean or slightly soapy water. Do not use solvents. • Rinse the appliance thoroughly with clean water. •... -
Page 16: I Cleaning The Propeller
4.3 I Cleaning the propeller To avoid serious injury: • Disconnect the cleaner from the power supply. • Wear gloves when handling the propeller • Loosen the screw on the grid (see figure • Remove the grid carefully (see figure •... -
Page 17: I Replacing The Brushes
4.4 I Replacing the brushes • Each brush is equipped with wear indicators; the distance between the indicators and the end of the brush indicates whether the brush is in good condition (see figure • The brushes are worn and should be replaced when the wear indicators appear as shown in figure •... -
Page 18: I Replacing The Tracks
4.5 I Replacing the tracks • For RX 4350 and RX 4450 cleaners, the tracks must be replaced by the retailer. • Place the cleaner on its side (see figure • Starting with one of the wheels, pull the inside of the track to separate it from the wheel (see figure ). -
Page 19: ❺ Troubleshooting
❺ Troubleshooting • Before you contact your retailer, please carry out these few simple checks using the following tables if a problem occurs. • If the problem persists, contact your retailer. • : Actions to be performed by a qualified technician only 5.1 I Appliance behaviour This may have any of 3 causes: While operating, the cleaner... -
Page 20: I User Alerts
5.2 I User alerts Solutions Flashing LED: • Check that the cleaner is correctly connected to the control box. If necessary, unplug it and reconnect it following the appropriate procedure. • Check that nothing is stopping the brushes and tracks from turning correctly (sand, cable, etc.). - Page 21 Your retailer Modèle appareil Appliance model Numéro de série Serial number Pour plus d’informations, enregistrement produit et support client : For more information, product registration and customer support: www.zodiac.com ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
