Leigh Country CHAR-LOG TX 93859 Manual

The use of power tools during
assembly may void this warranty.

Tools required for assembly

Socket & Wrench
13mm
Mallet
STEP 1: Assembling the Rocker Arm Frame
Take one piece of the following parts with a letter "R" behind
each number: 1 , 2 , 3 , 4 , 8 ("R" = Right)
1: Part 1 to part 4
2: Part 3 to part 2
4R
3: Part 2 to part 1
4: Part 4 to part 3
5: Part 8 to Part 2 & 3
Use indicated hardware, directed
by diagram.
8R
REPEAT steps 1 through 5 above using parts
labeled with a letter "L" ("L" = Left) after the part number.
STEP 3: Assembling the Upper Half
Once the bottom half is finished,
take the BACK PANEL (7) and
place it gently on the VERTICAL
A
SUPPORT (4) of the arm frame.
Secure with indicated hardware
A
in the diagram.
CHAR-LOG
ITEM # TX 93605 , TX 93859
1
ARM REST
5
LOWER SUPPORT BEAM

Tools included

Phillips
Screwdriver
1R
C
A
3R
B
A

IMPORTANT: READ CAREFULLY BEFORE BEGINNING

Recessed Hole
1. Do not tighten bolts until fully assembled.
2. Recessed holes to face outward.
3. Insert bolts with washer and secure with washer and nut.
Pre-Checked
4. Pre-checked side must always face downward or inward.

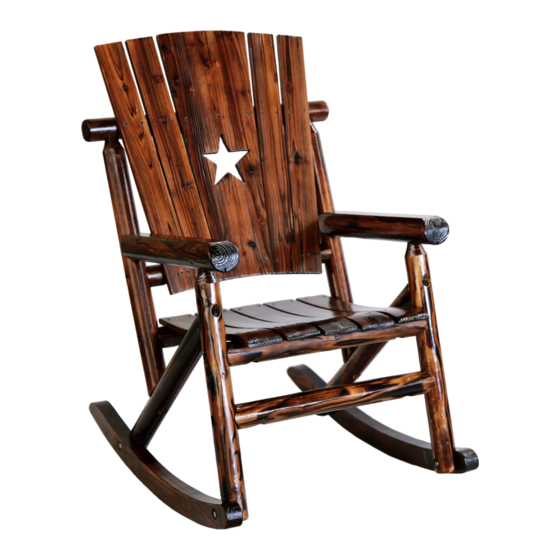

SINGLE ROCKER
®

PARTS AND HARDWARE LIST

2
FRONT LEG
X 2PCS X 2PCS
6
SEAT
X 1PC X 1PC
A N08-11
X 16PCS
NUT & BOLT
STEP 2: Assembling the Bottom Half
Take assembled SEAT PANEL (6) and one of the arm frames, keep the arm frame
standing and attached the SEAT PANEL (6) to the inside of the arm frame, secure
with the indicated nuts and bolts.
A
Right
2R
A
A
B
A
STEP 4: Finish
7
3
DIAGONAL SUPPORT VERTICAL SUPPORT
X 2PCS
7
BACK RUNNER
X 1PC
B N08-8 C
X 4PCS
SCREW
NUT & BOLT
Left
6
Insert the other arm frame
on the other side and
secure loosely with
nuts and bolts.
Take the Lower Support
Beam (5) and secure
under the seat between
5
the arm frame with
nuts and bolts.
Tighten all nuts, bolts,
and screws once
every part and
assembled pieces
are in place.
Congratulations
on your assembly!
4
X 2PCS
8
X 2PCS
S04-4
X 4PCS
