Leigh Country Char-Log TX 93605 Manual

Durable log construction.
Exclusive Char-log finish and design ®
Patent pending crack resistant design and process

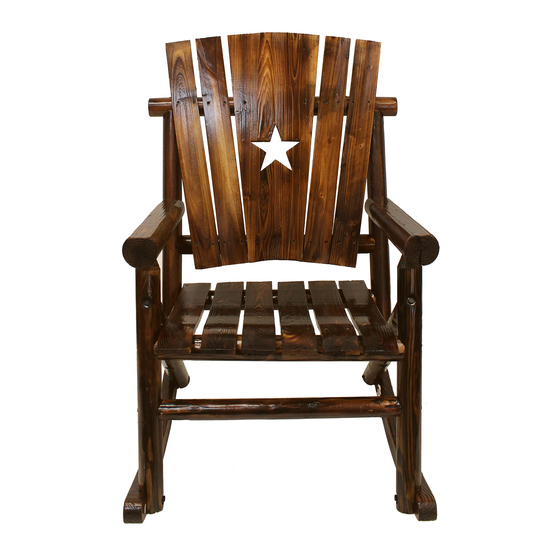

TX 93605 SINGLE ROCKER WITH STAR

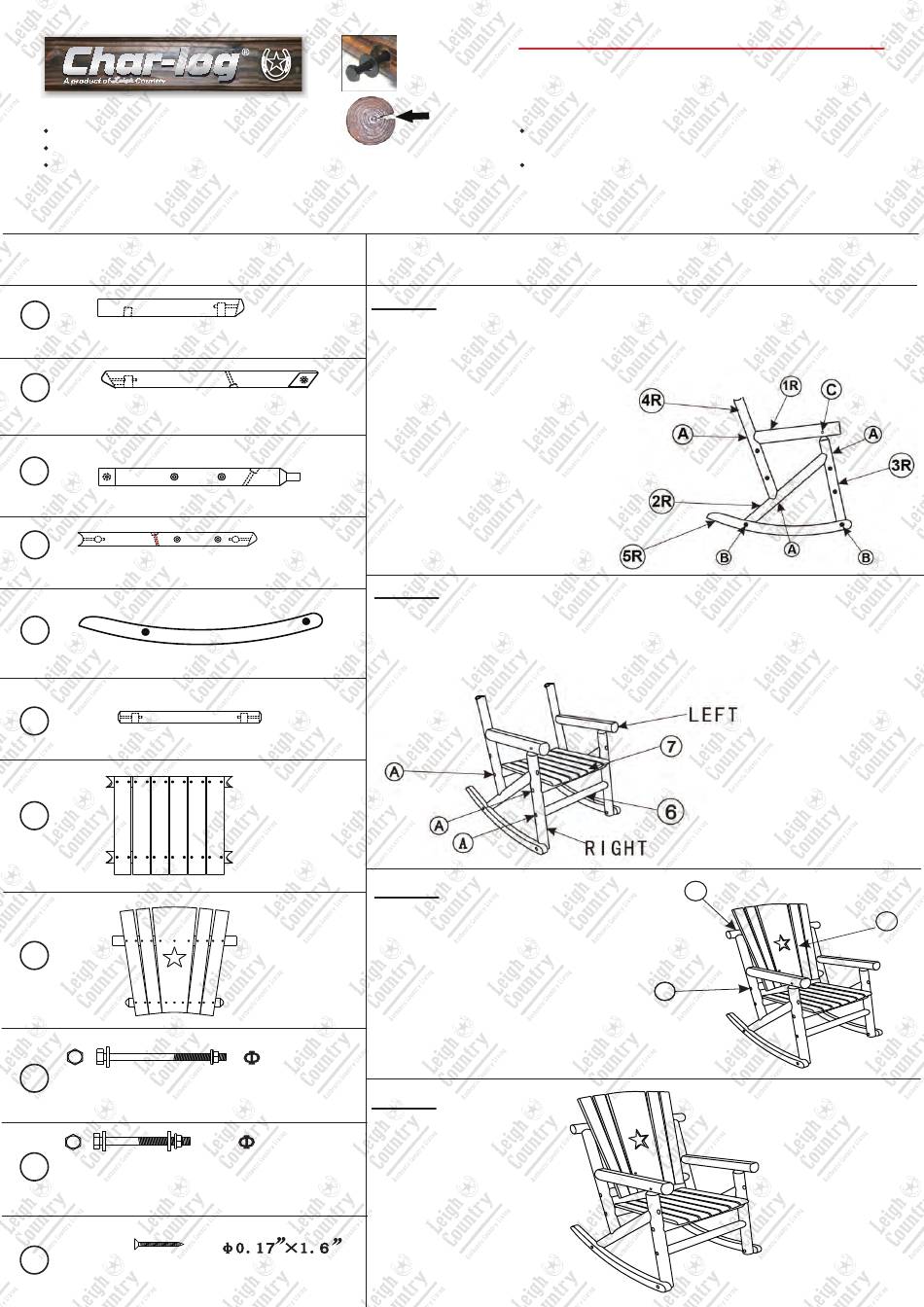

Parts
1
LENGTH: 21.3" x 2pc
2
LENGTH: 28.3" x 2pc
FRONT VERTICAL LOG W/DOWELED
3
LENGTH: 25.6" x 2pc
4
LENGTH: 28" x 2pc
ROCKER RUNNER
5
LENGTH: 35.6" x 2pc
LOWER SUPPORT BEAM
6
LENGTH: 22.5" x 1pc
7
8
A
NUT & BOLT: N08-12
B
NUT & BOLT: N08-8
C
SCREW: S04-4
Recessed Hole

STEP 1: Assembling the Rocker Arm Frame

ARM REST
Take one piece of the following parts with a letter
"R" behind each number: 1, 2, 3, 4, 5 ("R" = RIGHT)
1: Part 1 to part 4
2: Part 2 to part 3
DIAGONAL
3: Part 3 to part 1
LOG
4: Part 4 to part 2
5: Part 5 to part 2 and 3
Use indicated hardware, directed by diagram.
REPEAT steps 1 through 5 above using
parts labeled with a letter "L" (LEFT)
after the part number.
BACK
VERTICAL LOG

STEP 2: Assembling the Bottom Half

Take assembled SEAT PANEL (7) and one of the arm frames, keep the arm frame
standing and attached the SEAT PANEL (7) to the inside of the arm frame, secure with
the indicated nuts and bolts.
SEAT PANEL
x 1pc

STEP 3: Assembling the Upper Half

Once the bottom half is finished,
BACK PANEL
take the BACK PANEL (8) and
place it gently on part 4 of the
arm frame.
x 1pc
Secure with indicated hardware
in the diagram.
0.3" x 4.7"
x 16pc

STEP 4: FINISH

0.3" x 3.1"
Tighten all nuts, bolts,
and screws once
x 4pc
every part and
assembled pieces
are in place.
x 2pc

IMPORTANT: READ CAREFULLY BEFORE BEGINNING!

1. Do not tighten bolts until fully assembled.
2. Recessed holes to face outward.
3. Insert bolts with washer and secure with washer and nut.
4. Pre-checked side must always face downward or inward.
Pre-Checked
Special Char-log heat curing, preserving, finishing
Process resists mildew, mold, and stains
Varnished to preserve Char-log finish
Assemble
®
®
Insert the other arm frame
on the other side and
secure loosely with
nuts and bolts.
Take the lower support
beam and secure
under the seat between
the arm frame with
nuts and bolts.
A
A
Congratulations
on your assembly!
