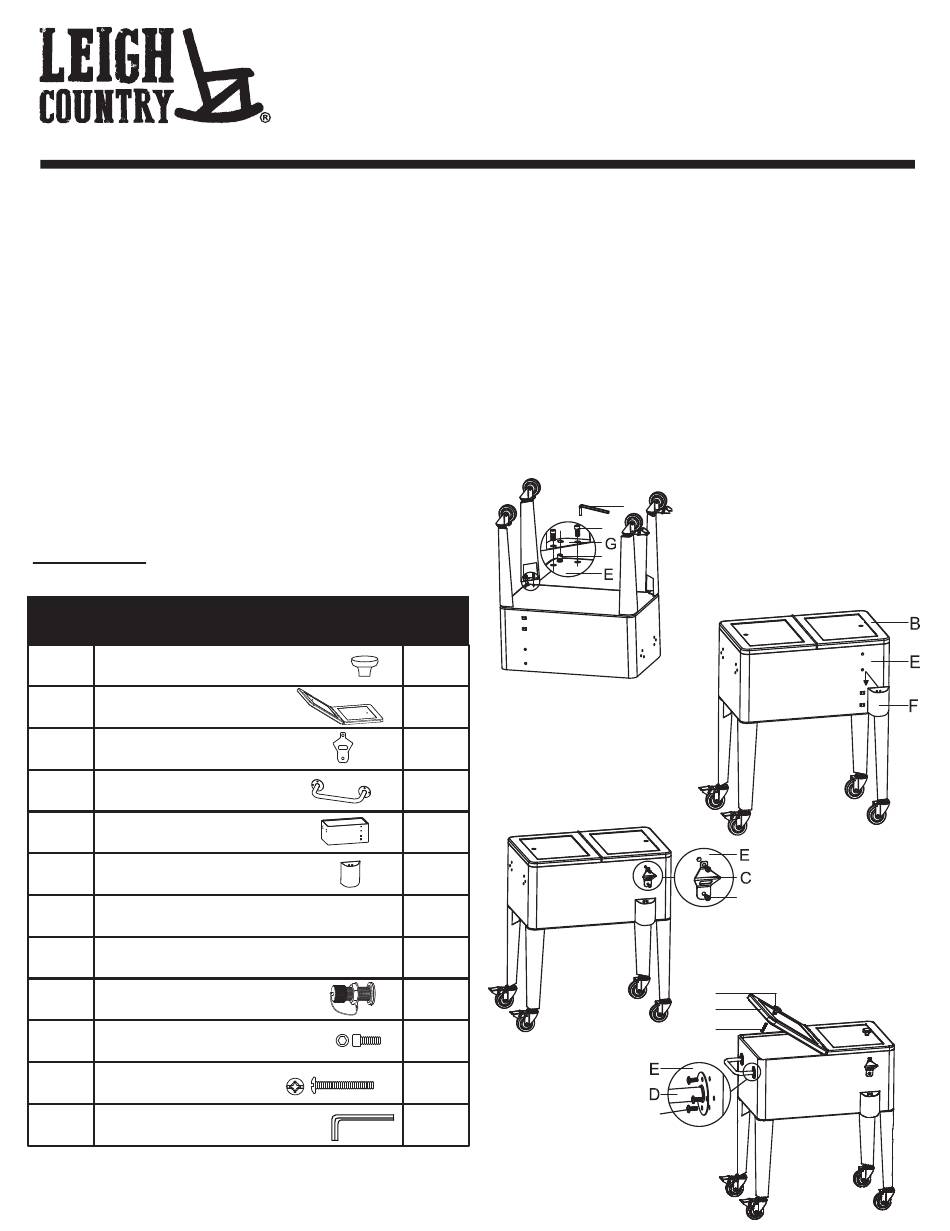

Leigh Country TX 93787 Assembly Instructions

Assembly Instructions
Place all parts on a clean and level surface before assembling. Put body (E) upside
1.
down. Connect each leg (G/H) to the body (E) by using 3 bolts (J).
Attach cap catcher (F) to the body (E). Attach the lid (B).
2.
Connect bottle opener (C) to body (E) by using 2 bolts (J).
3.
Use the bolts (J) to secure the handle (D) and body (E).
4.
Unscrew the Lid Knobs (A) from under the Lid (B) with a #2 Phillips Screwdriver and
5.
secure them on top of the Lid (B) by re-using the 2 Bolts (K).

Tools Required:

#2 Philips Screwdriver (Not Included)
PARTS & HARDWARE LIST
LISTA DE PARTES Y ACCESORIOS
Lid Knob
A
Perillas de la Tapa
Lid
B
Tapa
Bottle Opener
C
Abrebotellas
Handle
D
Asa
Body
E
Cuerpo
Cap Catcher
F
Captador de tapas
Leg & Caster Without Lock
G
Pata Y Rueda sin seguro
Leg & Caster With Lock
H
Pata y Rueda con seguro
Drain Plug
I
Válvula de desagüe
M6 x 13 Bolt
J
Perno M6 x 13
M4 x 30 Bolt
K
Tornillo M4 x 30
Hex Wrench
L
Llave hexagonal

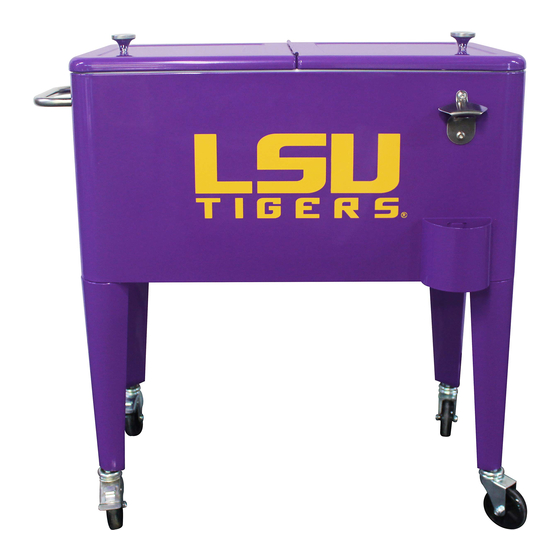

60qt. Retro Cooler
G
G
x 2
x 1
x 1
x 1
3.
x 1
x 1
x 2
x 2
x 1
x 20
x 2
x 1
L
J
1.
J
H
H
2.
J
4. & 5.
A
B
K
J
TX 93787
