Leigh Country Amberlog PORCH ROCKER TX 36000 Manual

Do not use power tools because
they may damage the hardware
or split the wood.
Tools Required for Assembly
Socket & Wrench
13mm
Mallet
STEP 1: Assembling the Rocker Arm Frame
Take one piece of the following parts with a letter "R" behind
each number: 1 , 2 , 3 , 4 , 8 ("R" = Right)
1: Part 1 to part 4
4R
2: Part 3 to part 2
3: Part 2 to part 1
4: Part 4 to part 3
5: Part 8 to Part 2 & 3
Use indicated hardware,
directed by diagram.
8R
REPEAT steps 1 through 5 above using parts labeled
with a letter "L" ("L" = Left) after the part number.
STEP 3: Assembling the Upper Half
Once the bottom half is finished,
take the BACK PANEL (7) and
place it gently on part 4
of the arm frame.
Secure with indicated hardware
in the diagram.

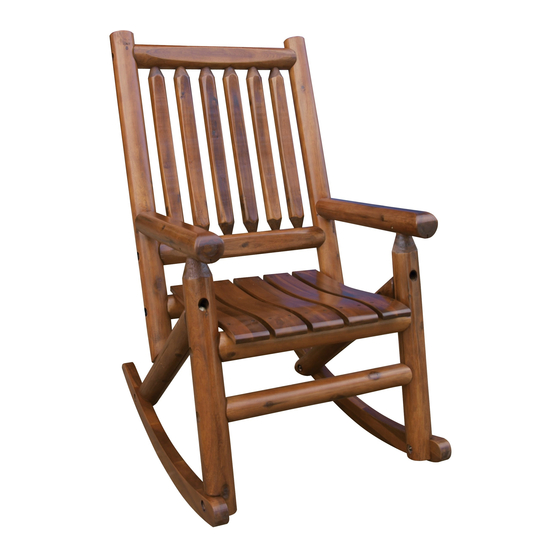

PORCH ROCKER
ITEM # TX 36000, TX 36002, TX 36005 & TX 36007
1
ARM REST
X 2pcs
5
LOWER
SUPPORT
BEAM
X 1pc
Tools Included
Phillips
Screwdriver
1R
C
A
3R
B
A
7
IMPORTANT:
Recessed Hole
READ CAREFULLY BEFORE BEGINNING
1. Do not tighten bolts until fully assembled.
2. Rescessed holes to face outward.
Pre-Checked
3. Insert bolts with washer and secure with washer and nut.
4. Pre-checked side must always face downward or inward.
PARTS AND HARDWARE LIST
2
FRONT LEG
X 2pcs
6
SEAT PANEL
X 1pc
A
NUT & BOLT
(8x120mm)
X 12pcs
STEP 2: Assembling the Bottom Half
Take assembled SEAT PANEL (6) and one of the arm frames,
Attach the SEAT PANEL (6) to the inside of the arm frame,
secure with the indicated nuts and bolts.
A
2R
Right
A
B
A
A
STEP 4: Finish
3
DIAGONAL VERTICAL
SUPPORT SUPPORT
X 2pcs
7
BACK PANEL RUNNER
X 1pc
B C
NUT & BOLT SCREW
(8x70mm) (4x40mm)
X 4pcs X 2pcs
Left
Insert the other arm frame
on the other side and
6
secure loosely with
nuts and bolts.
Take the Lower Support
Beam (5) and secure
under the seat between
the arm frame with
5
nuts and bolts.
Tighten all nuts, bolts,
and screws once
every part and
D
assembled pieces
are in place.
D
Congratulations
on your assembly!
4
X 2pcs
8
X 2pcs
D
SCREW
(8x120mm)
X 4pcs
