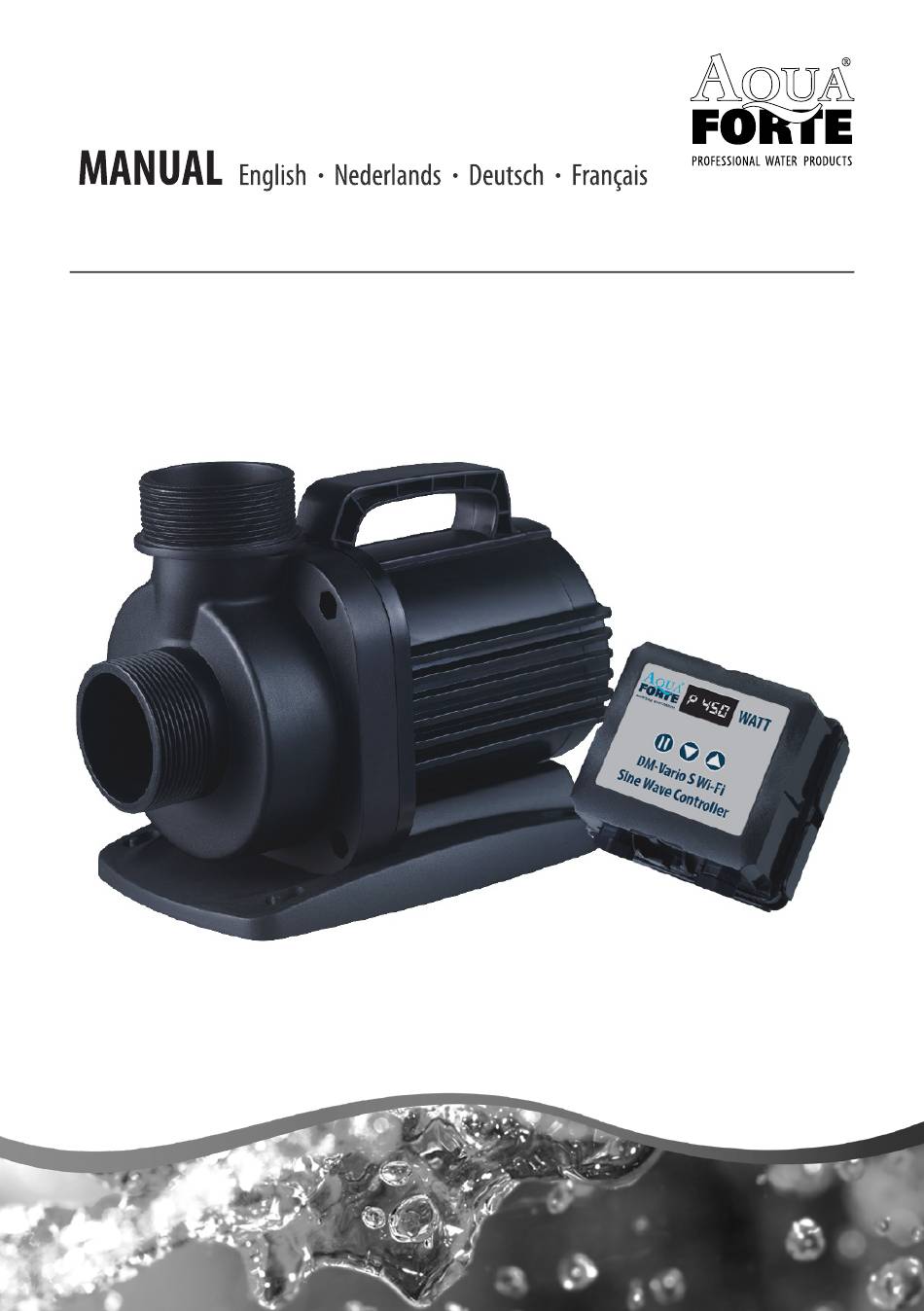

  • Page 1 AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 2 Meanwhile, remove the front filter cover to connect the water pipe in inlet and outlet to ensure water in the pump and pipe before plug on. AquaForte is a trademark of Sibo Fluidra Netherlands BV, Doornhoek 3950, 5465TC, Veghel Email: info@aqua-forte.nl Website: www.aqua-forte.nl/en...
  • Page 3: Controller Features

    ” again to start the pump again. Remarks: When the pump enters to the timer mode set by APP, the LED will display as P.XXX. Push both " " buttons to exit the timer mode. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 4: Technical Specifications

    When any key is pressed, the display screen returns to normal brightness. 3.5 Data memory function When the power goes off and then on again, the controller goes back to the last selected status. Technical specifications AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 5: Account Registration

    Send link. Check your email and follow the instructions to reset your password. Then back to the log in page to input your account and new password to log in. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 6: Configuration Mode

    AP configuration modes. Choose one mode to link your device. 1. Smart Configuration mode: Press Wi-Fi button for about 5 seconds, the red and green Wi-Fi indication led will alternately flash. The Pump is in smart configuration mode. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 7 Make sure your device, phone, and router are as close as possible during the configuration progress. The page will display all the devices. Choose the request add device, tap on the device name, then tap ”Confirm to add” Tap “Start” to start using your device. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 8 Tap Go to settings (image 1). Tap “Settings” in the upper left corner to enter the mobile phone settings page (image 2), then enter the WIFI setting page (image 3). Go to Settings > WiFi and choose the Aqua_Forte_WiFi-xxxx” with password 123456789. Connecting the Aqua Forte-WiFi (image 4). AQUAFORTE DM-Vario WIFI PUMP VERSION 1.01 12/2022...
  • Page 9 WiFi setting page. On the WiFi Settings screen (image 2), switch the WiFi of the mobile phone to “Aqua_Forte_WiFi-xxxx” with the password 123456789 (image 3). After successful connection, Return to APP and wait. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 10 4. Select the hotspot "Aqua_Forte_WiFi-xxxx" issued by the device (the name is the same as the device name), enter the pass- word 123456789 and tap Connection. Manually return to APP after successful connection. AQUAFORTE DM-Vario WIFI PUMP VERSION 1.01 12/2022...
  • Page 11 Drag the arc progress bar to change the flow value of the pump. The minimum flow is 30% and the maximum is 100%. Hold the icon for 2 seconds Manual control bar ON/OFF Current flow value Pause icon Program icon VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 12 The pump will stop working immediately according to the setting pause time. Hold the "Pause" icon 2 seconds to enter the pause settings. Set the pause time, turn on the switch, then tap save and return. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 13 Tap the "Stop, Auto, Feed" icon or, tap the circle twice to edit each time period. Time switch button Adjust the time Start time setting End time setting Mode selection Gears setting (flow in %) VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 14: Pump Management

    5.5 Pump management On the device’s main page, tap on upper right-hand side to device management page. User can calibration time, rename, delete device. To add back the device, you need to start configuration again. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 15: Failure Indication

    3. You can also delete the current pump, but when you want to add another pump, you should reconfigure the network to add the pump. Reset the WiFi module if necessary. 5.6 Failure indication VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 16: Maintenance

    Not put it together with the domestic waste which should be solved as an authorized place for recycling of electrical and electronic appliances for collecting and recycling waste. Please consult with your local seller, to make sure the product is disposed in an environmental and healthy way. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 17 De filterkorf kan niet worden gebruikt, de pomp moet rechtstreeks op de inlaat/uitlaat worden aangesloten, zodat er water in de pomp en de leiding komt voordat u de stekker in het stopcontact steekt. AquaForte is een handelsmerk van Sibo Fluidra Netherlands BV, Doornhoek 3950, 5465TC, Veghel Email: info@aqua-forte.nl Website: www.aqua-forte.nl...
  • Page 18: Handmatige Bediening

    " opnieuw aan om de pomp weer te starten. Opmerking: Wanneer de pomp in de door de APP ingestelde timermodus komt, zal het display P.XXX weergeven, houdt de " " knoppen gelijktijdig ingedrukt om de tijd modus te verlaten. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 19 Zet de controller aan raak geen enkele knop aan voor meer dan 17 seconden; het LED display gaat naar "spaarstand'' . Het display werkt weer normaal wanneer u een knop aanraakt. 3.5. Data memory functie De geheugen functie zorgt ervoor dat de pomp altijd naar de laatst gekozen snelheid gaat bij opstarten. Technische specificaties VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 20: Wachtwoord Resetten

    "Verzend" link. Controleer uw e-mail en volg de instructies om uw wachtwoord opnieuw in te stellen. Ga dan terug naar de inlogpagina om uw account en nieuw wachtwoord in te voeren om in te loggen. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 21 AP configuratie. Kies een modus om uw toestel te verbinden. 1. Smart Configuratie mode: Druk ongeveer 5 seconden op de WiFi-knop, het rode en groene WiFi-indicatielampje knipperen afwisselend. De pomp staat in de slimme configuratiemodus. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 22 Tik op "Start" om uw toestel in gebruik te nemen. 2. AP Configuratie: Druk gedurende ongeveer 10 seconden op de WiFi-knop, de rode en groene WiFi-indicatieled zullen gelijktijdig knipperen. De pomp is in AP (Access Point) configuratie- modus en AP directe verbindingsmodus. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 23 (afbeelding 2), ga vervolgens naar de WIFI-instellingen pagina (afbeelding 3). Ga naar Instellingen > WiFi en kies de Aqua_Forte_WiFi-xxxx" met wachtwoord 123456789. Verbinden met de Aqua Forte-WiFi (afbeelding 4). VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 24 123456789 (afbeelding 3). Na succesvolle verbinding, keert u terug naar APP en wacht. De configuratie start automatisch. Tik op "Start" om het apparaat te bedienen nadat het succesvol is toegevoegd. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 25 4. Selecteer de hotspot "Aqua_Forte_WiFi-xxxx" afkomstig van het apparaat (de naam is dezelfde als de naam van het ap- paraat), voer het wachtwoord 123456789 in en tik op Verbinding. Keer handmatig terug naar APP na succesvolle verbinding. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 26 Versleep de knop in de boog om de flow van de pomp te veranderen. De minimale flow is 30% en de maximale is 100%. Houd de knop 2 seconden ingedrukt Manuele flow bediening AAN/UIT Huidige flow waarde Pauze knop Programma knop AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 27 Houd de "Pauze" knop 2 seconden ingedrukt om de pauze instellingen te openen. Stel de pauzetijd in, zet de schakelaar aan, en sla deze instelling op door op het symbool rechtsboven te tikken. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 28 Tik op het pictogram "Stop, Auto, Feed" of tik tweemaal op de cirkel om elke tijdsperiode te bewerken. Tijdschakelklok Pas de tijd aan Starttijd instellen Eindtijd instellen Keuze mode Pompsnelheid (flow in %) AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 29 Op de hoofdpagina van het apparaat, tikt u rechtsboven op de pagina voor apparaat beheer. De gebruiker kan de tijd instellen, de naam wijzigen, het apparaat wissen. Om het apparaat weer toe te voegen, moet u de configuratie opnieuw starten. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 30 AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 31 Controller overspanning Er05 Controleer de ingangsspanning. Controller onderspanning WiFi module en moederbord Slecht contact tussen moederbord en module, Er06 communicatie mislukt beschadiging van communicatiedeel. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 32: Betrieb

    Der Filterkorb kann nicht verwendet werden; die Pumpe muss direkt an den Einlass/Auslass angeschlossen werden, damit das Wasser in die Pumpe und in die Leitung fließt, bevor der Netzstecker in die Steckdose gesteckt wird. AquaForte ist eine Marke von Sibo Fluidra Netherlands BV, Doornhoek 3950, 5465TC, Veghel E-Mail: info@aqua-forte.nl Website: www.aqua-forte.nl/de...
  • Page 33: Manueller Betrieb

    " erneut, um die Pumpe wieder zu starten. Hinweis: Wenn die Pumpe in den von der APP eingestellten Timer-Modus wechselt, erscheint auf dem Display P.XXX. Halten Sie die „ “ gleichzeitig gedrückt, um den Timer-Modus zu verlassen. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 34 Wenn der Regler eingeschaltet ist und Sie berühren mehr als 17 Sekunden lang keine der Tasten, schaltet das LED-Display in den "Sparmodus'' . Das Display funktioniert wieder normal, sobald Sie eine der Tasten berühren. 3.5 Datenspeicherfunktion Die Speicherfunktion sorgt dafür, dass die Pumpe immer mit der zuletzt gewählten Drehzahl startet. Technische Parameter AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 35 E-Mail-Adresse ein und tippen Sie auf den Link „Senden“. Bitte prüfen Sie Ihre E-Mail und folgen Sie den Anweisungen, um Ihr Passwort zurückzusetzen. Kehren Sie dann zur Anmeldeseite zurück und geben Sie Ihr Konto und Ihr neu- es Passwort ein, um sich anzumelden. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 36 Intelligente Konfiguration und AP-Konfiguration. Wählen Sie einen Modus, um Ihr Gerät zu verbinden. 1. Modus „Intelligente Konfiguration“: Drücken Sie die WiFi-Taste für ca. 5 Sekunden. Die rote und grüne WiFi-Anzeige blinken abwechselnd. Die Pumpe befindet sich im intelligenten Konfigurationsmodus. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 37 Auf der Seite werden alle Geräte angezeigt. Wählen Sie die Option zum Hinzufügen des Geräts, tippen Sie auf den Gerätenamen und dann auf „Hinzufügen bestätigen“. Tippen Sie auf „Start“, um Ihr Gerät in Gebrauch zu nehmen. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 38 Mobiltelefons zu öffnen (Abbildung 2), und gehen Sie dann zur Seite mit den WIFI-Einstellungen (Abbildung 3). Gehen Sie zu Einstellungen > WiFi und wählen Sie „Aqua_Forte_WiFi-xxxx“ mit dem Passwort 123456789. Verbinden Sie sich mit dem Aqua Forte WiFi (Abbildung 4). AQUAFORTE DM-Vario WIFI PUMP VERSION 1.01 12/2022...
  • Page 39 Sie das Passwort 123456789 ein (Abbildung 3). Nach erfolgreicher Verbindung kehren Sie zur APP zurück und warten. Die Konfiguration startet automatisch. Tippen Sie auf „Start“, um das Gerät in Betrieb zu nehmen, nachdem es erfolgreich hinzugefügt worden ist. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 40 4. Wählen Sie den Hotspot „Aqua_Forte_Wi-xxxx“ je nach Gerät aus (der Name ist mit dem Gerätenamen identisch), geben Sie das Passwort 123456789 ein und tippen Sie auf Verbindung. Kehren Sie nach erfolgreicher Verbindung manuell zur APP zurück. AQUAFORTE DM-Vario WIFI PUMP VERSION 1.01 12/2022...
  • Page 41 Ziehen Sie die Taste im Bogen, um den Durchfluss der Pumpe zu ändern. Der Mindestdurchfluss beträgt 30 % und der Höchst- durchfluss 100 %. Halten Sie die Taste 2 Sekunden lang gedrückt. Manuelle Durchflussbedienung EIN/AUS Aktueller Durchflusswert Pause-Taste Programmtaste VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 42 Betrieb. Halten Sie die Taste „Pause“ 2 Sekunden lang gedrückt, um die Pauseneinstellungen aufzurufen. Stellen Sie die Pausenzeit ein, schalten Sie den Schalter ein und speichern Sie diese Einstellung, indem Sie auf das Symbol oben rechts tippen. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 43 Tippen Sie auf das Symbol „Stop, Auto, Feed“ oder tippen Sie zweimal auf den Kreis, um die einzelnen Zeiträume zu bearbeiten. Zeitschaltuhr Zeit einstellen Startzeit einstellen Endzeit einstellen Auswahlmodus Pumpendrehzahl (Durchfluss in %) VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 44 Tippen Sie auf der Hauptseite des Geräts in der oberen rechten Ecke auf die Seite Geräteverwaltung. Der Benutzer kann die Uhrzeit einstellen, den Namen ändern und das Gerät löschen. Um das Gerät wieder hinzuzufügen, müssen Sie die Konfiguration neu starten. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 45 3. Sie können die aktuelle Pumpe auch entfernen, müssen aber, wenn Sie eine andere Pumpe hinzufügen möchten, das Netzw- erk neu konfigurieren, um die Pumpe hinzuzufügen. Setzen Sie das WiFi-Modul zurück, falls erforderlich. 5.6 Störungsanzeige VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 46: Wartung

    • Das Netzkabel der Pumpe muss von der Steckdose abwärts verlaufen, damit kein Wasser durch das Netzkabel in die Steck- dose eindringen kann. 7. ENTSORGUNG Dieses Produkt darf nicht über den Hausmüll entsorgt werden. Das Produkt muss über eine anerkannte Stelle für das Recycling von Elektro- und Elektronikgeräten entsorgt werden. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 47 Le panier filtrant ne peut pas être utilisé, la pompe doit être connectée directement à l'entrée/sortie de sorte que l'eau entre dans la pompe et le tuyau avant d'être branchée. AquaForte est une marque de Sibo Fluidra Netherlands BV, Doornhoek 3950, 5465TC, Veghel E-mail : info@aqua-forte.nl Site web : www.aqua-forte.nl/fr...
  • Page 48 " pour remettre la pompe en marche. Remarque: Lorsque la pompe entre dans le mode timer réglé par l'application, l'écran affiche P.XXX, maintenez la touche „ “ simultanément pour quitter le mode temps. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 49 Activez Ie controleur et ne touchez aucun bouton pendant plus de 17 secondes : l'écran LED passe en mode "veille'' . L'écran fonctionne à nouveau normalement lorsque vous touchez un bouton. 3.5 Fonction Mémoire La fonction mémoire fait en sorte que la pompe retourne toujours au dernier régime sélectionné après Ie démarrage. Caradéristiques techniques: VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 50 électronique et appuyez sur le lien « Envoyer ». Veuillez vérifier votre e-mail et suivre les instructions pour réinitialiser votre mot de passe. Revenez ensuite à la page de connexion pour saisir votre compte et votre nouveau mot de passe pour vous connecter. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 51: Utilisation De L'application

    Smart et la configuration AP. Choisissez un mode pour connecter votre appareil. 1. Mode de configuration Smart : Appuyez sur le bouton WiFi pendant environ 5 secondes, les voyants rouge et vert d'indication WiFi clignotent alternativement. La pompe est en mode de configuration intelligente. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 52 Veillez à ce que votre téléphone, votre téléphone et votre routeur soient aussi proches que possible pendant la configuration. La page affichera tous les appareils. Choisissez la demande d'ajout de périphérique, appuyez sur le nom du périphérique, puis appuyez sur « Confirmer l'ajout » Appuyez sur « Démarrer » pour commencer à utiliser votre appareil. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 53 2), puis allez à la page des paramètres WIFI (image 3). Allez dans Paramètres > WiFi et sélectionnez l'Aqua_Forte_WiFi-xxxx avec le mot de passe 123456789. Connectez-vous à la WiFi Aqua Forte (image 4). VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 54 123456789 (image 3). Une fois la connexion réussie, revenez à l'application et attendez. La configuration démarre automatiquement. Appuyez sur « Démarrer » pour faire fonctionner l'appareil une fois qu'il a été ajouté avec succès. AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 55 4. Sélectionnez le hotspot « Aqua_Forte_Wi-xxxx » de l'appareil (le nom est le même que celui de l'appareil), entrez le mot de passe 123456789 et appuyez sur Connexion. Revenez manuellement à l'application après avoir établi la connexion. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 56 Le débit minimum est de 30% et le débit maximum est de 100%. Maintenez le bouton enfoncé pendant 2 secondes Contrôle manuel du débit MARCHE/ARRÊT Valeur actuelle du débit Bouton Pause Bouton de programme AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 57 Appuyez sur la touche « Pause » pendant 2 secondes pour accéder aux réglages de la pause. Réglez le temps de pause, mettez l'in- terrupteur en marche et enregistrez ce réglage en appuyant sur le symbole en haut à droite. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 58 Appuyez sur l'icône « Stop, Auto, Feed » ou appuyez deux fois sur le cercle pour modifier chaque période. Interrupteur horaire Régler l'heure Réglage de l'heure de début Réglage de l'heure de fin Mode de choix Vitesse de la pompe (débit en %) AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 59 Sur la page principale de l'appareil, appuyez sur Gestion de l'appareil dans le coin supérieur droit. L'utilisateur peut régler l'heu- re, changer le nom, supprimer l'appareil. Pour ajouter à nouveau le périphérique, vous devez redémarrer la configuration. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
  • Page 60 3. Vous pouvez également supprimer la pompe actuelle, mais lorsque vous souhaitez ajouter une autre pompe, vous devez reconfigurer le réseau pour ajouter la pompe. Réinitialisez le module WiFi si nécessaire. 5.6 Indication de défaillance AQUAFORTE DM-VARIO WIFI PUMP VERSION 1.01 12/2022...
  • Page 61: Entretien

    7. MISE AU REBUT Il est interdit de jeter ce produit avec les déchets ménagers. Ce produit doit être mis au rebut via une instance agréée pour le recyclage d'appareils électriques et électroniques. VERSION 1.01 12/2022 AQUAFORTE DM-VARIO WIFI PUMP...
