Reliable F1FR-FS Series Manual

Features
• Specially designed flat spray pattern
• Quick response glass bulb thermal element
• Low profile, compact design
Product Description
Reliable Model F1FR-FS Series Sprinklers are designed for
installation in accordance with CEA 4001 (Sprinkler Systems:
Planning and Installation) or EN 12845 (Fixed fire fighting systems-
Automatic sprinkler systems - Design, installation and maintenance).
The flat spray pattern created by this sprinkler makes this an
excellent choice for applications with lower clearance above ceilings
and in racks.

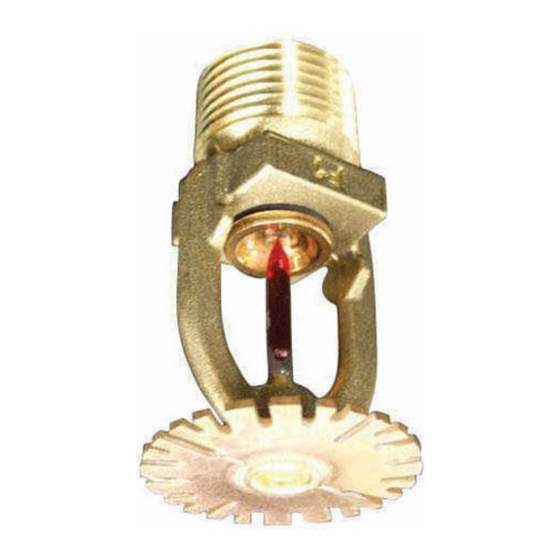

Reliable Model F1FR-FS Series Sprinklers utilize a frangible 3.0mm
glass bulb. The glass bulb consists of an accurately controlled
amount of special fluid hermetically sealed inside of a precisely
manufactured glass capsule. This glass bulb is specially constructed
to provide fast thermal response.
At normal temperatures, the glass bulb contains the fluid in both the
liquid phase and in the vapor phase. The vapor phase can be seen
as a small bubble. As heat is applied, the liquid expands forcing
the bubble smaller and smaller as the liquid pressure increases.
Continued heating forces the liquid to push out against the bulb,
causing the glass to shatter, opening the waterway and allowing the
deflector to distribute the discharging water. The temperature rating
of Reliable Model F1FR-FS Series Sprinklers is identified by the color
of the liquid in the glass bulb thermal element in accordance with
NFPA 13.
Application
Reliable Model F1FR-FS Series Flat Spray Sprinklers are intended
for use in concealed spaces, open suspended ceilings, and in
racks in accordance with CEA 4001 (Sprinkler System Planning)
and EN 12845 (Automatic Sprinkler Systems - Design, Installation,
and Maintenance), as well as any authorities having jurisdiction
over the project.
Model F1FR-FS Series Flat Spray Sprinkler Summary
K-Factor
Style gpm/psi
1/2
(L/min/bar
4.2 (60)
F1FR-FS
5.6 (80)
Temperature Ratings
Orientation
)
1/2
Pendent
Pendent
Quick-Response Flat Spray Sprinklers

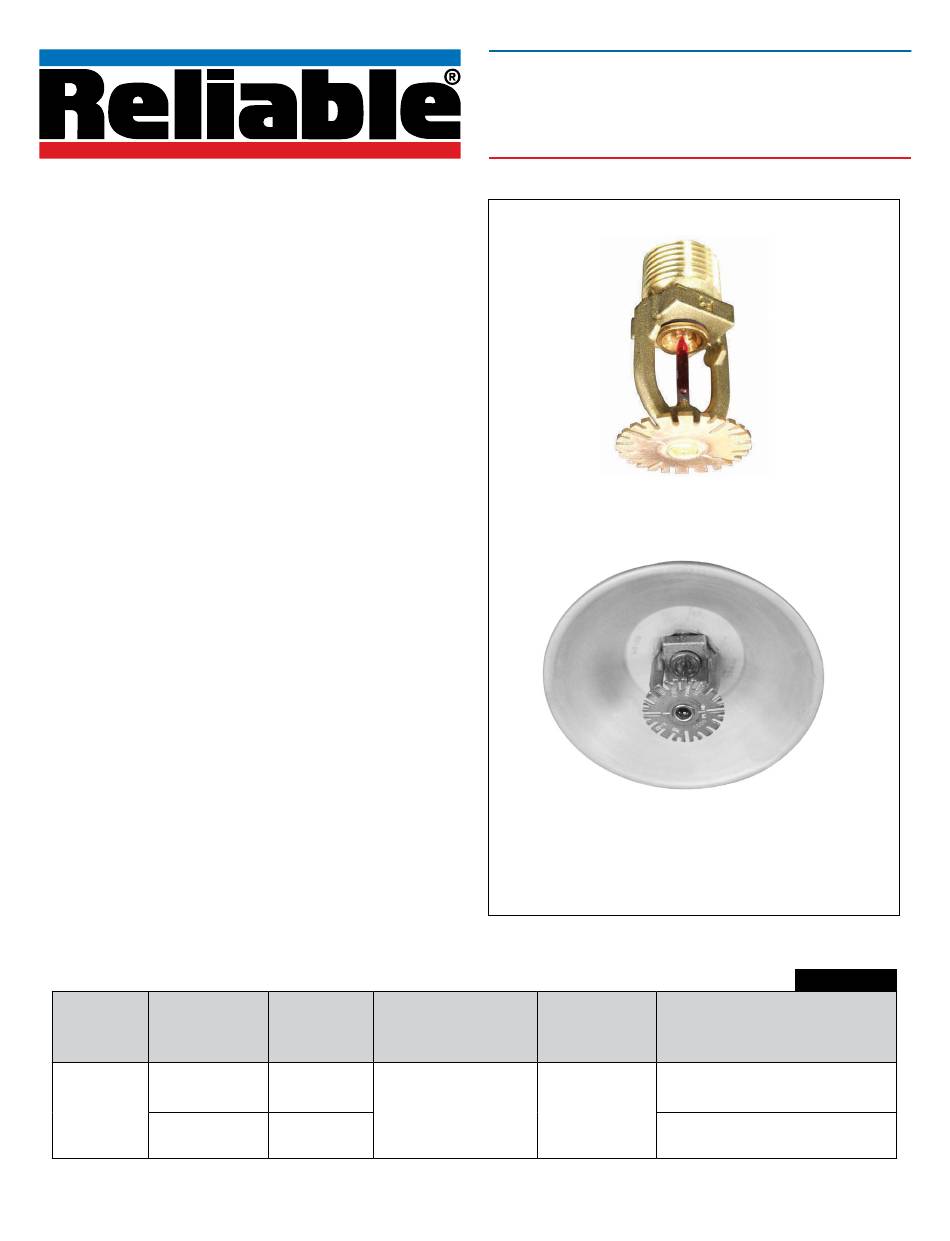

Model F1FR-FS with optional water shield. Water shields
are used in applications where there are multiple levels of
sprinklers. The shield will prevent lower level sprinklers
from being wetted by upper level sprinklers.
Max. Working
Pressure
°F (°C)
psi (bar)
135 (57)
155 (68)
175 (79) 175 (12.1)
200 (93)
286 (141)
www.reliablesprinkler.com
Bulletin 022 May 2023
Model F1FR-FS Series
Model F1FR-FS
Listings & Approvals
VdS: Certificate G414023
CE: Certificate 0786-CPD-40296
VdS: Certificate G4080047
CE: Certificate 0786-CPD-40242
Table A
