Direct pressurisation unit
Hide thumbs Also See for flowpress:
Table of Contents

Advertisement

Controller

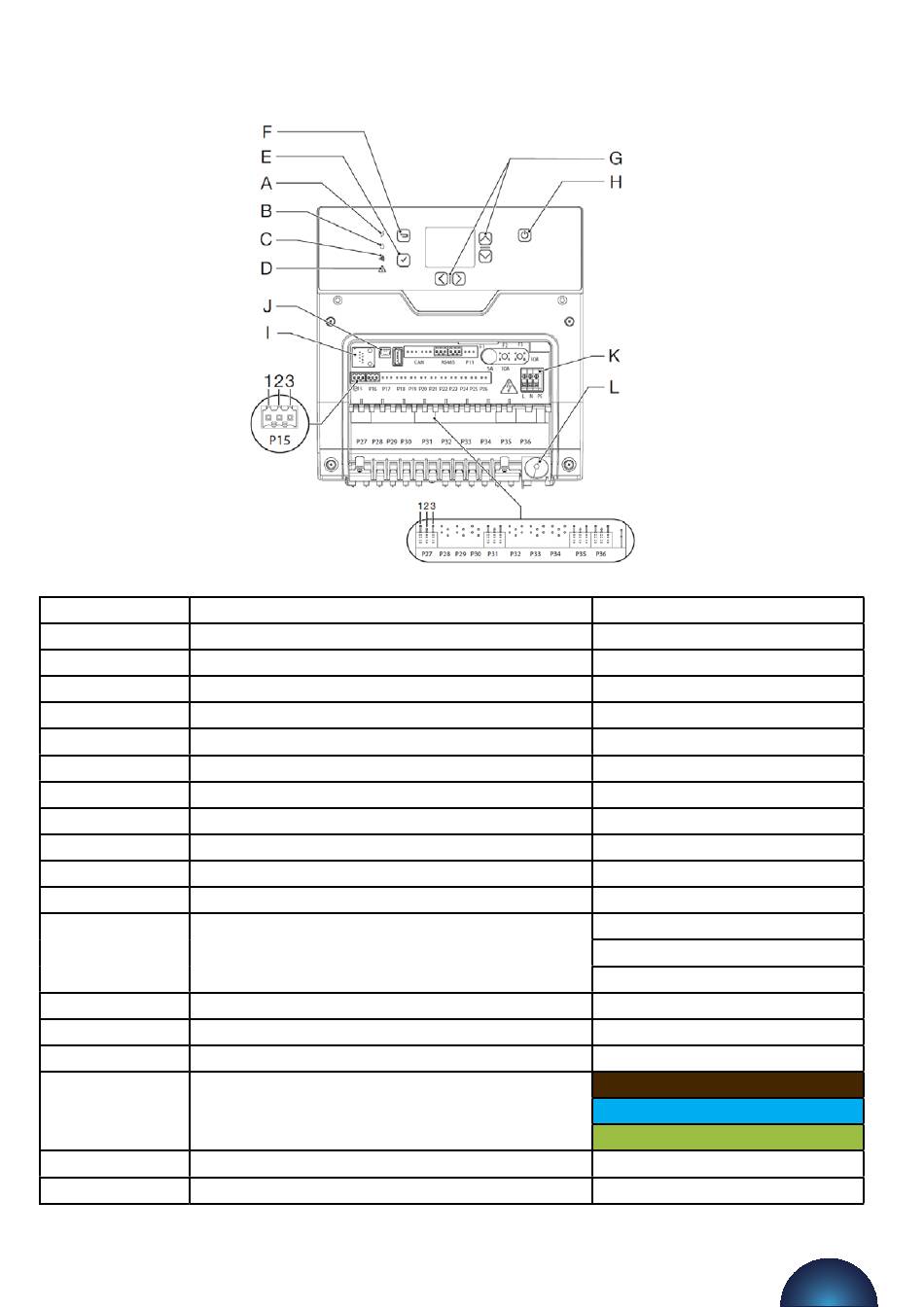

A clarification of menu icons, function and location can be found in Appendix 1: Icon library.
Identification
Description
A
Power indicator (orange=power)
B
Status indicator (green=ok automat running)
C
Bluetooth Not Availible
D
Error/alarm (red=alarm/error active)
E
Confirm button
F
Return button
G
Navigation buttons
H
Screen on/of (hold 8 sec for powerdown)
I
Not Availible
J
USB-A software update + logging
CAN
Not Availible
RS485
Modbus/Bacnet/HFC over RS485
F1
Fuse 1 (P31&P32) 5x20 5A
F2
Fuse 2 (P33&P35) 5x20 10AT
F3
Fuse 2 (P34&P36) 5x20 10AT
B
Mains power connector
L
Mains grommet
P11
Not Availible
flowpress
Direct O&M Manual
Pinout
1 B +
2 B -
3 GND
1 L
2 N
3 PE
