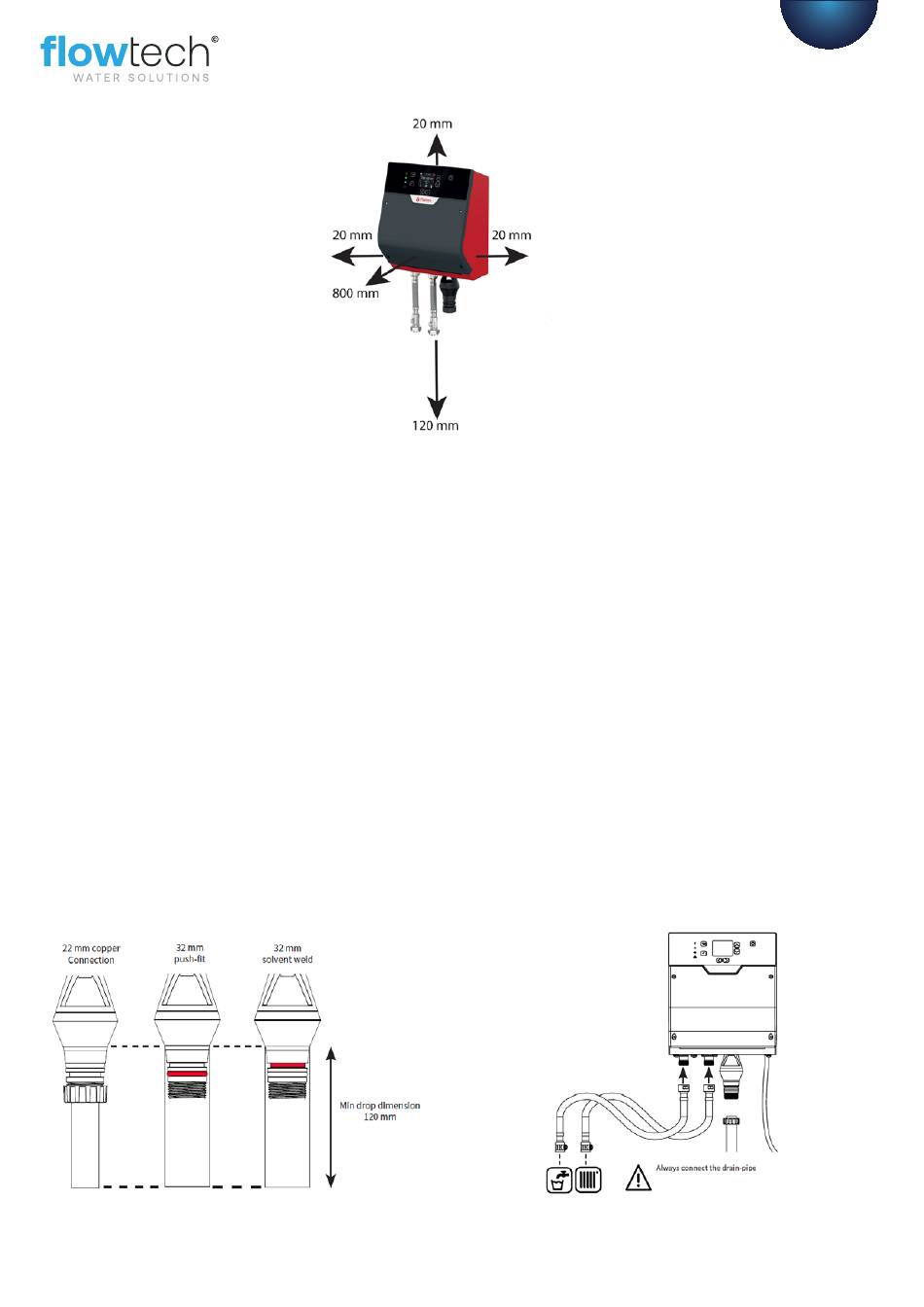

Clearance Requirements
Clearance guidelines for service and repair
Hydraulic Connections
From the "Manual-mode" in the controller menu, a testing routine can be triggered to check if the device
is set up correctly and working accordingly. Each actuator (valve) can be operated separately with a
maximum run-time of 2 minutes.
The mains water and sealed system connection to the unit must be made using the flexible hoses with
isolation valves provided.
The drain always has to be connected. There are 3 options to connect the drain:
•
With a 22mm copper pipe
The plastic nut provided will secure the pipe in place and create a sealed connection
•
With a 32mm push- fit PP pipe
The O-ring provided on the tundish will create a sealed connection with the pipe if positioned in the
lower groove on the tundish, see image below.
•
With a 32mm solvent weld PP pipe
The O-ring provided on the tundish will create a sealed connection with the pipe if positioned in the
higher groove on the tundish, see image below.
Drain Connection Options
