Quick start guide

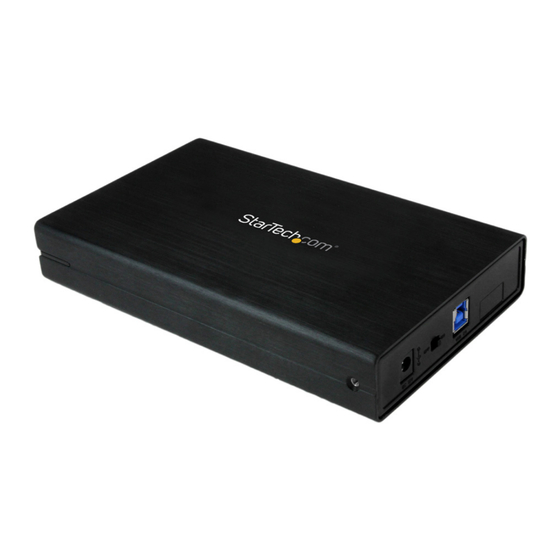

USB 3.1 (10 Gbps) enclosure for SATA drives
S351BU313
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging contents
• 1 x 3.5 in. USB 3.1 SATA HDD enclosure
• 1 x universal power adapter (NA/UK/EU/AUS)
• 1 x screw kit
• 1 x HDD stand
• 1 x USB A-to-B cable
• 1 x instruction manual
System requirements
• USB-enabled computer system with an available USB port
Note: To obtain the maximum USB throughput, StarTech.com
recommends that you use a PC with a USB 3.1 port.
Supported operating systems are subject to change. For the latest
requirements, please visit www.startech.com/S351BU313.
Product overview
For the latest information, technical specifications, and support for this
product, please visit www.startech.com/S351BU313.
Install the hardware
Warning! Hard drives and storage enclosures should be handled
carefully, especially when they're transported. If you're not careful
with your drives, you may lose data as a result. Make sure that you're
properly grounded by wearing an anti-static strap when you install
any computer component. If an anti-static strap isn't available, touch
a large grounded metal surface (for example, the computer case) for
several seconds to discharge any built-up static electricity.
1. To open the enclosure, slide the tray to the right.
2. Connect the 3.5 in. SATA hard drive to the SATA connector on the
hard drive tray.
3. To attach the SATA hard drive to the hard drive tray, insert the
included four drive screws into the bottom of the hard drive tray.
Use a screw driver to tighten the screws into place.
4. Slide the hard drive tray to the left, back into the enclosure.
5. To mount the hard drive tray to the enclosure, insert the included
two smaller screws into either side of the enclosure. Use a
screwdriver to tighten the screws into place.
6. Connect the power adapter from an available AC outlet to the
*actual product may vary from photos
Power adapter port USB 3.1 port
Power switch
