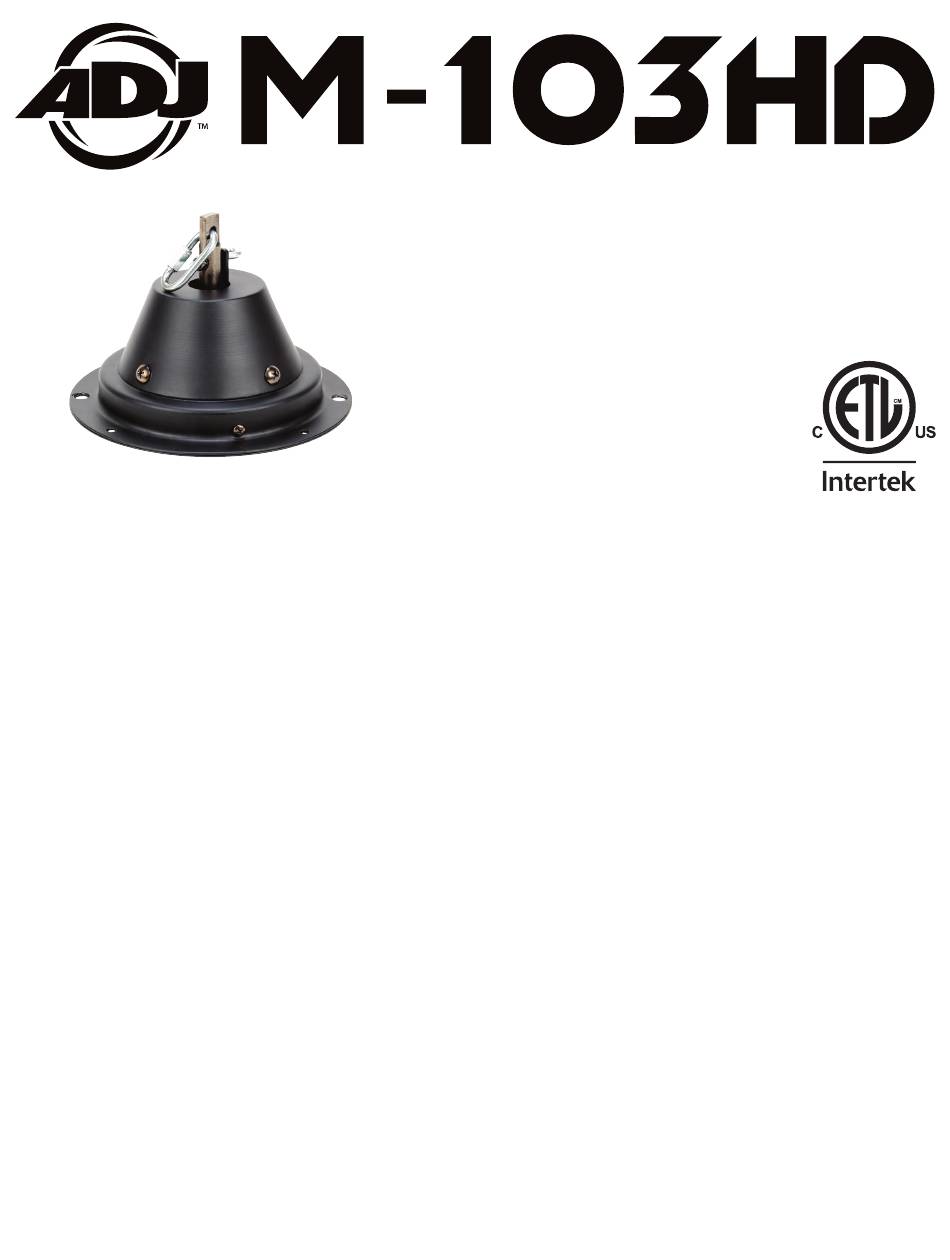

Introduction: The M-103HD is a heavy-duty 3 R.P.M. mirror ball motor from ADJ Products, LLC that
will work with mirror balls up to 20 inches (50cm) that weigh up to 22lbs (10 kg.). Just plug it in and
it will start to work immediately. The M-103HD is easy-to-use and is intended for indoor use for night
clubs and permanent installations or in mobile applications for mobile DJs or bands.
Unpacking: Thank you for purchasing the M-103HD by ADJ Products, LLC. Every M-103HD has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to be
damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to
operate the unit has arrived intact. In the case damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your
dealer without first contacting customer support.
In order to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruc-
tions and warning notes written in this user manual.
Important: Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.

SAFETY INSTRUCTIONS:

CAUTION: Be careful when operating. A dangerous voltage can give you a dangerous electric shock when
touching the wires!
• This device has left our building in an absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not it on im-
mediately. The arising condensation water might damage your device. Leave the device switched off until it
has reached room temperature.

ELECTRICAL PRECAUTIONS:

• The electric connection must only be carried out by a qualified electrician!
• Never let the power–cord come into contact with other cables! Handle the power-cord and all connections

SPECIFICATIONS:

Working Position: Upside Down
Power:
Weight:
Length:
Rotation Speed:
Max Load:
Warranty:
120V/60Hz or 230V/50Hz
2.5lbs./ 1.055Kgs.
5.5" (L) x 5.5" (W) x 3.25" (H)
136 x 136 x 80mm
2.5 - 3 R.P.M.
22 lbs/10Kgs
1 Year (365 days)
4005818

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-103HD and is the answer not in the manual?

Questions and answers

Summary of Contents for ADJ M-103HD

  • Page 1 20 inches (50cm) that weigh up to 22lbs (10 kg.). Just plug it in and it will start to work immediately. The M-103HD is easy-to-use and is intended for indoor use for night clubs and permanent installations or in mobile applications for mobile DJs or bands.
  • Page 2 with the mains with particular caution! • Make sure that the available voltage is not higher than the device’s stated voltage. • Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.
  • Page 3 • Insert the chain with the mirror ball in the screw-on chain link and lighten the fixation screw. • Make sure that the rotation of the mirror ball is never slowed down or stopped/obstructed. • Please check in regular intervals, if the key ring or chain links have been deformed/damaged. Remove the mirror ball installation immediately! CLEANING AND MAINTENANCE •...
  • Page 4 Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof. This warranty is void if the serial number has been altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, af- fects the reliability of the product;...
