DMX-protocol
L I

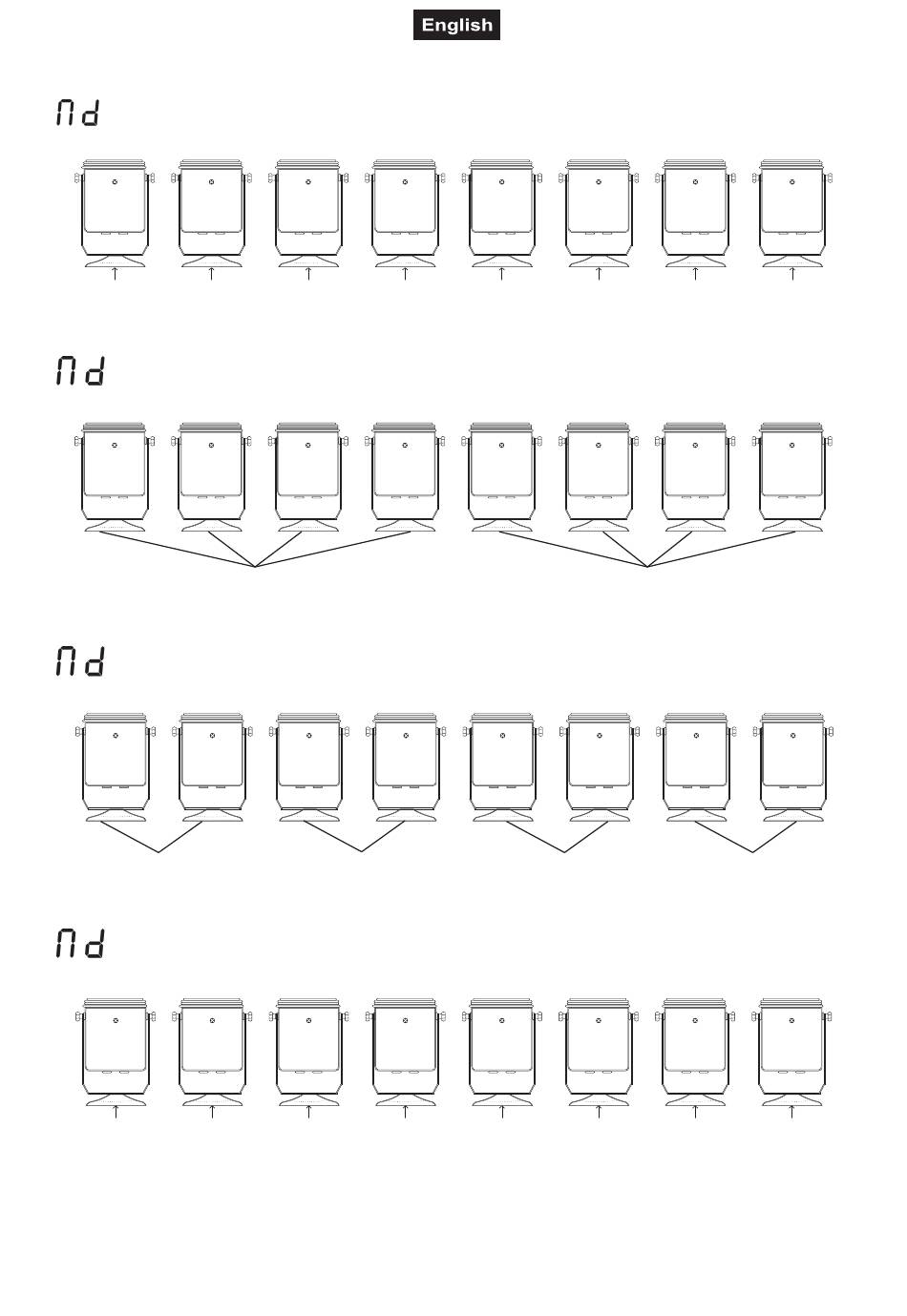

Control channel 1 – Each spot occupies the same 6 channels as every other. Eight spots
occupy 6 channels.
1~6
1~6
L2
Control channel 2 – Spots 1-4 and 5-8 occupy 6 channels. Eight spots occupy 12
channels.
L4
Control channel 3 – Every 2 spots occupy 6 channels. Eight spots occupy 24 channels.
1~6
L8
Control channel 4 – Each spot occupies 6 channels. Eight spots occupy 48 channels.
1~6
7~12
1~6
1~6
1~6
7~12
13~18 19~24
1~6
1~6
13~18
25~30 31~36 37~42 42~48
21/43
1~6
1~6
7~12
19~24
