Summary of Contents for EuroLite LED PARty

  • Page 2: Table Of Contents

    Diese Bedienungsanleitung gilt für die Artikelnummern / This user manual is valid for the article numbers: 42110193, 42110196 Das neueste Update dieser Bedienungsanleitung finden Sie im Internet unter: You can find the latest update of this user manual in the Internet under: www.eurolite.de 2/24 00102251.DOCX, Version 1.0...
  • Page 3: Einführung

    - sich die letzte Version der Anleitung im Internet herunter laden EINFÜHRUNG Wir freuen uns, dass Sie sich für einen EUROLITE LED PARty TCL Spot / LED Big PARty TCL Spot entschieden haben. Wenn Sie nachfolgende Hinweise beachten, sind wir sicher, dass Sie lange Zeit Freude an Ihrem Kauf haben werden.
  • Page 4 Das Gerät darf nicht in Betrieb genommen werden, nachdem es von einem kalten in einen warmen Raum gebracht wurde. Das dabei entstehende Kondenswasser kann unter Umständen Ihr Gerät zerstören. Lassen Sie das Gerät solange uneingeschaltet, bis es Zimmertemperatur erreicht hat! Der Aufbau entspricht der Schutzklasse II.
  • Page 5: Bestimmungsgemässe Verwendung

    BESTIMMUNGSGEMÄSSE VERWENDUNG Bei diesem Gerät handelt es sich um eine ortsfeste Leuchte für allgemeine Zwecke. Dieses Produkt ist für den Anschluss an 100-240 V, 50/60 Hz Wechselspannung zugelassen und wurde ausschließlich zur Verwendung in Innenräumen konzipiert. Dieses Gerät ist für den privaten Gebrauch vorgesehen und nicht für professionelle Anwendungen geeignet. Das Produkt ist kein Spielzeug.
  • Page 6: Gerätebeschreibung

    GERÄTEBESCHREIBUNG Geräteübersicht LED PARty TCL Spot, 42110193 vorne und hinten DMX OUT DMX IN MENU DOWN ENTER (4) DMX-Eingang Feststellschrauben (5) Netzanschluss Montagebügel (6) DMX-Ausgang TCL LEDs (7) LED-Anzeige mit Bedientasten LED Big PARty TCL Spot, 42110196 vorne und hinten...
  • Page 7: Features

    Features PARty-on! – handlicher TCL-LED-Farbwechsler mit DMX-Steuerung Ausgestattet mit 12 TCL-LEDs in den Farben rot, grün und blau (Artikel 42110193) • Ausgestattet mit 54 TCL-LEDs in den Farben rot, grün und blau (Artikel 42110196) • Flickerfreie Projektion • Funktionen: statische Farben, RGB-Farbmischung, interne Programme, Farbwechsel mit diversen •...
  • Page 8: Master/Slave-Betrieb

    Wenn Sie Controller mit dieser XLR-Belegung verwenden, können Sie den DMX-Ausgang des Controllers direkt mit dem DMX-Eingang des ersten Gerätes der DMX-Kette verbinden. Sollen DMX-Controller mit anderen XLR-Ausgängen angeschlossen werden, müssen Adapterkabel verwendet werden. Aufbau einer seriellen DMX-Kette: Schließen Sie den DMX-Ausgang des ersten Gerätes der Kette an den DMX-Eingang des nächsten Gerätes an.
  • Page 9 Menu Up / Down Enter Beschreibung d001. d001.-d512. Einstellen der DMX-Startadresse Feste Farben (Master-Modus) A1.01: R+G+B A1.02: R A1.03: G A1.04: B A1.05: R+G A1.06: G+B A1.07: R+B A1.08: R+G+B Programme A1.XX A1.09: R+G A1.01 - A1.18 A1.10: G+B A1.11: R A1.12: G+B A1.13: G A1.14: B...
  • Page 10 A4.15: R-G A4.16: R-B A4.17: G-B A4.18: R-G-B A4.19: R-G-B Farbwechsel „Strobing“ (Master-Modus) A5.01: R, G, B A5.02: R A5.03: G A5.04: B A5.05: R+G A5.06: G+B A5.07: R+B A5.08: R+G+B A5.01 – A5.32 Programme A5.09: R+G A5.XX (zunehmende A5.01 - A5.19 A5.10: R+B Geschwindigkeit) A5.11: R...
  • Page 11: Dmx-Gesteuerter Betrieb

    Drücken Sie die MENU-Taste bis auf dem Display "d001." erscheint. Sie können nun die gewünschte DMX- Startadresse über die UP- oder DOWN-Tasten auswählen. Drücken Sie die ENTER-Taste zur Bestätigung. Nachdem Sie die Startadresse definiert haben, können Sie den LED PARty TCL Spot / LED Big PARty TCL Spot über Ihren Controller ansteuern.
  • Page 12: Reinigung Und Wartung

    30130555 Zubehör für 42110193 und 42110196 Best.-Nr. EUROLITE FS-1 Floorstand, Stahl, schwarz 5900698A EUROLITE DMX Kabel XLR 3pol 3m schwarz 3022785H PSSO DMX Kabel XLR 3pol 3m schwarz Neutrik 30227810 SOMMER CABLE DMX Kabel XLR 3pol 3m schwarz Hicon 30307457...
  • Page 13: Introduction

    INTRODUCTION Thank you for having chosen a EUROLITE LED PARty TCL Spot / LED Big PARty TCL Spot. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time.
  • Page 14 If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. This device falls under protection-class II and features a protective insulation. The voltage and frequency must exactly be the same as stated on the device.
  • Page 15: Operating Determinations

    OPERATING DETERMINATIONS This device is a fixed general purpose luminaire. This product is allowed to be operated with an alternating voltage of 100-240 V, 50/60 Hz and was designed for indoor use only. This device is designed for private use and not suitable for professional use. This product is not a toy.
  • Page 16: Description Of The Device

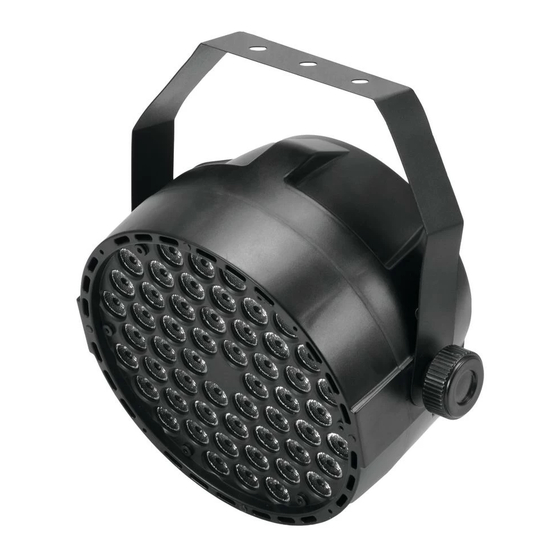

    DESCRIPTION OF THE DEVICE Overview LED PARty TCL Spot, 42110193 front and rear DMX IN DMX OUT MENU DOWN ENTER (1) Fixation screws (4) DMX input (2) Mounting bracket (5) Power supply (3) TCL LEDs (6) DMX output (7) LED Display with operating buttons...
  • Page 17: Features

    Features PARty-on! – handy TCL LED color changer with DMX control Equipped with 12 TCL LEDs in the colors red, green and blue (item 42110193) • Equipped with 54 TCL LEDs in the colors red, green and blue (item 42110196) •...
  • Page 18: Master/Slave Operation

    Set the DMX address d001 for all slave-devices. OPERATION After you connected the EUROLITE LED PARty TCL Spot / LED Big PARty TCL Spot to the mains, the device starts running. The LED display lights up and you can now choose the desired settings via the buttons MENU, UP, DOWN and ENTER.
  • Page 19 Menu Up / Down Enter Description d001. d001.-d512. DMX address setting Solid colors (Master-Mode) A1.01: R+G+B A1.02: R A1.03: G A1.04: B A1.05: R+G A1.06: G+B A1.07: R+B A1.08: R+G+B Programs A1.XX A1.09: R+G A1.01 - A1.18 A1.10: G+B A1.11: R A1.12: G+B A1.13: G A1.14: B...
  • Page 20 A4.14: B A4.15: R-G A4.16: R-B A4.17: G-B A4.18: R-G-B A4.19: R-G-B Color change „Strobing“ (Master-Mode) A5.01: R, G, B A5.02: R A5.03: G A5.04: B A5.05: R+G A5.06: G+B A5.07: R+B A5.08: R+G+B A5.09: R+G Programs A5.01 – A5.32 A5.XX A5.01 - A5.19 A5.10: R+B...
  • Page 21: Dmx-Controlled Operation

    DMX-controlled operation You can control the projectors individually via your DMX-controller. Every DMX-channel has a different occupation with different features. The individual channels and their features are listed under DMX-protocol. Addressing The Control Board allows you to assign the DMX starting address, which is defined as the first channel from which the device will respond to the controller.
  • Page 22: Cleaning And Maintenance

    EUROLITE SB-18 Soft-Bag 30130555 Accessories for 42110193 and 42110196 EUROLITE FS-1 Floorstand, Steel, black 5900698A EUROLITE DMX cable XLR 3pin 3m black 3022785H PSSO DMX cable XLR 3pin 3m black Neutrik 30227810 SOMMER CABLE DMX cable XLR 3pin 3m black Hicon...
  • Page 23 23/24 00102251.DOCX, Version 1.0...
  • Page 24 Eurolite is a brand of Steinigke Showtechnic GmbH Andreas-Bauer-Str. 5 97297 Waldbüttelbrunn Germany D00101490 Version 1.0 Publ. 20/09/2016...
