Self-removable counterweight
90 Ton Capacity (81.7 Metric Tons)
HYDRAULIC ROUGH TERRAIN CRANE

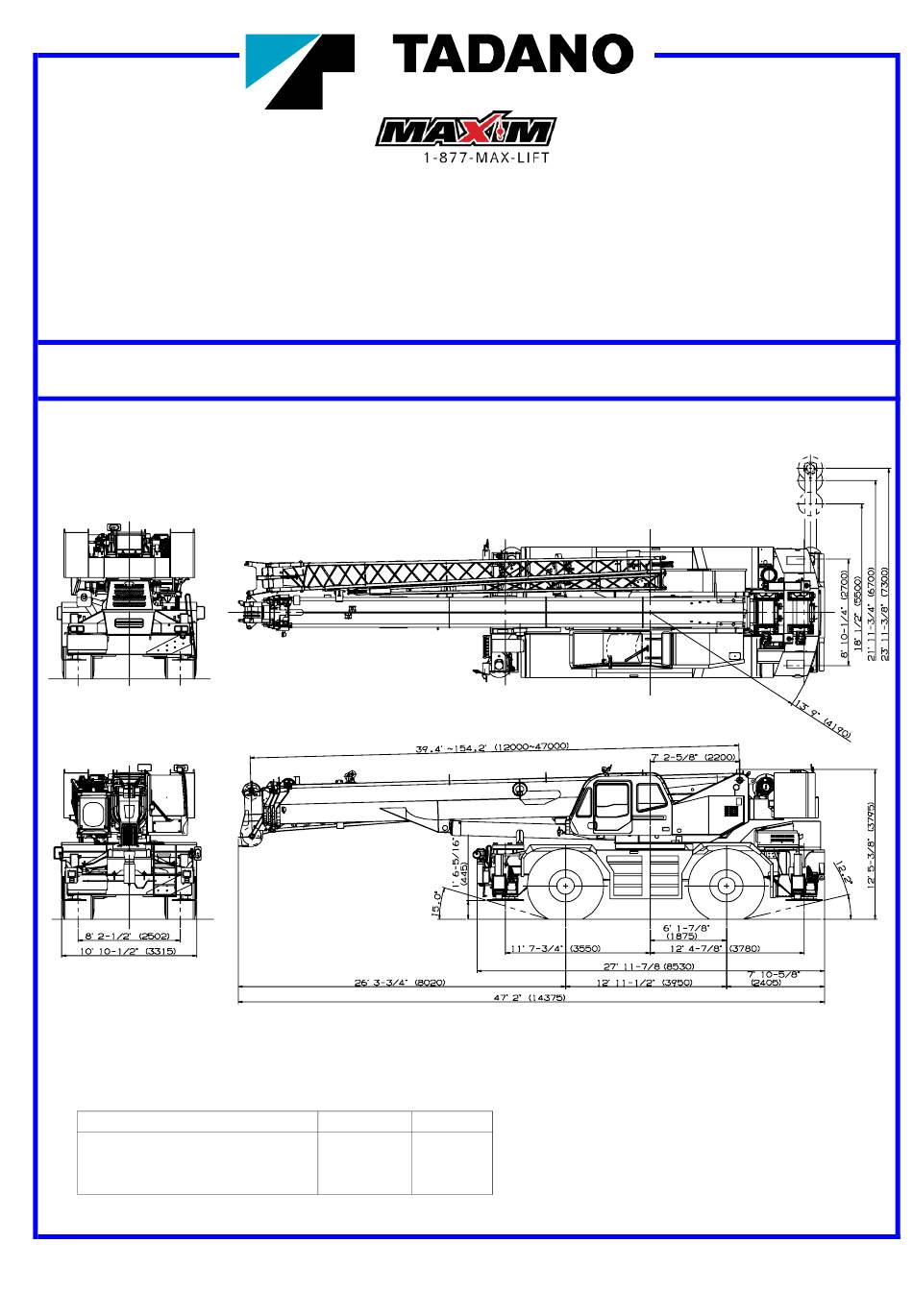

GENERAL DIMENSIONS
(29.5 - 25 Tires)
Turning radius
4 wheel steer
2 wheel steer
GR-900XL-2
DIMENSIONS
Feet
Meters
22' 4"
6.8
39' 1"
11.9
- 1 -
Note : Dimension is with boom angle at -1.5 degree.
( ) Reference dimensions in mm.
Specifications are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GR-900XL-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tadano GR-900XL-2

Summary of Contents for Tadano GR-900XL-2

  • Page 1 GR-900XL-2 Self-removable counterweight 90 Ton Capacity (81.7 Metric Tons) HYDRAULIC ROUGH TERRAIN CRANE DIMENSIONS Note : Dimension is with boom angle at -1.5 degree. ( ) Reference dimensions in mm. GENERAL DIMENSIONS (29.5 - 25 Tires) Feet Meters Turning radius 4 wheel steer 22' 4"...

  • Page 2: Crane Specifications

    CRANE SPECIFICATIONS BOOM WIRE ROPE - Non-rotating 3/4" (19 mm) 7X35 class. Five section full power synchronized telescoping boom, Breaking Strength 72,800 lbs (33,000 kg) 39.4'~154.2' (12.0 m~47.0 m), of round box construction with 7 sheaves, 17-5/16" (0.44 m) root diameter, at boom head. HOOK BLOCKS The synchronization system consists of two telescope cylinders, 100 ton (90.7 metric ton)-8 sheaves with swivel hook and safety latch, for...
  • Page 3 Tadano electronic LOAD MOMENT INDICATOR system TADANO AML-C monitors outrigger extended length and (AML-C) including: automatically programs the corresponding "RATED LIFTING Control lever lockout function with audible and visual CAPACITIES" table pre-warning Boom position indicator Operator's right hand console includes transmission gear Outrigger state indicator selector and sight level bubble.

  • Page 4: Standard Equipment

    STANDARD EQUIPMENT - Five section full power partially synchronized boom - Tadano electronic load moment indicator system (AML-C) 39.4'~154.2' (12.0 m~47.0 m) - Boom angle indicator - 33.2' or 58.1' (10.1 m or 17.7 m) bi-fold lattice jib (tilt type) - Outrigger extension length detector with 3.5...
  • Page 5 GR-900XL WORKING RANGE CHART - 5 -...
  • Page 6 GR-900XL WORKING RANGE CHART - 6 -...
  • Page 7 GR-900XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 11-3/8" (7.3 m) SPREAD ROTATION 39.4' 53.7' 68.1' (20.8 m) 82.4' (25.1 m) 96.8' (29.5 m) 111.1' (33.9 m) 125.5' (38.3 m) 139.8' (42.6 m) 154.2' (12 m) C (16.4 m) C (47 m) 73 180,000 102,700...
  • Page 8 GR-900XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 11-3/8" (7.3 m) SPREAD ROTATION 154.2' (47.0 m) Boom + 33.2' (10.1 m) Jib 154.2' (47.0 m) Boom + 58.1' (17.7 m) Jib Tilt Tilt Tilt Tilt Tilt Tilt 37.8' 10,800 51.5'...
  • Page 9 (12 m) (16.4 m) (47 m) 73 180,000 78 102,700 70 175,700 76 102,700 80 90,200 79 40,100 67 153,600 74 102,700 78 90,200 77 40,100 61 128,200 70 102,700 75 89,900 75 40,100 78 42,500 78 35,500 94,800 64 98,000 71 75,000 70 40,100 74 42,500 74 35,500 77 40,100 77 33,300 35,500 32,200...
  • Page 10 GR-900XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 21' 11-3/4" (6.7 m) SPREAD ROTATION 154.2' (47.0 m) Boom + 33.2' (10.1 m) Jib 154.2' (47.0 m) Boom + 58.1' (17.7 m) Jib Tilt Tilt Tilt Tilt Tilt Tilt 37.8' 10,800 51.5'...
  • Page 11 (12 m) C (16.4 m) (47 m) 73 180,000 78 102,700 70 164,000 76 102,700 80 90,200 79 40,100 67 142,400 74 102,700 78 90,200 77 40,100 61 113,500 70 102,700 75 89,900 75 40,100 78 42,500 78 35,500 75,400 64 73,400 71 67,200 70 40,100 74 42,500 74 35,500 77 40,100 77 33,300 35,500 32,200...
  • Page 12 GR-900XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 18' 1/2" (5.5 m) SPREAD ROTATION 154.2' (47.0 m) Boom + 33.2' (10.1 m) Jib 154.2' (47.0 m) Boom + 58.1' (17.7 m) Jib Tilt Tilt Tilt Tilt Tilt Tilt 37.8' 10,800 51.5'...
  • Page 13 ON OUTRIGGERS MIN EXTENDED 8' 10-5/16" (2.7 m) SPREAD ROTATION 39.4' 53.7' 68.1' (20.8 m) 82.4' (25.1 m) 96.8' (29.5 m) 111.1' (33.9 m) 125.5' (38.3 m) 139.8' (42.6 m) 154.2' (12 m) (16.4 m) (47 m) 143,900 102,700 94,900 93,000 80 90,200 79 40,100...
  • Page 14 1. RATED LIFTING CAPACITIES apply only to the machine as 10. When making lifts at a load radius not shown, use the next originally manufactured and normally equipped by TADANO longer radius to determine allowable capacity. LTD. Modifications to the machine or use of optional 11.
  • Page 15 GR-900XL RATED LIFTING CAPACITIES (IN POUNDS) ON-RUBBER STATIONARY Over Front Rotation 39.4' 68.1' 96.8' 39.4' 68.1' 96.8' (12 m) (20.8 m) (29.5 m) (12 m) (20.8 m) (29.5 m) 60,000 38,000 49,600 28,500 37,500 35,000 17,500 20,000 28,500 29,500 22,900 10,400 14,000 14,000...
  • Page 16 WARNING AND OPERATING INSTRUCTIONS FOR ON-RUBBER LIFTING CAPACITIES 1. Rated lifting capacities on-rubber are in pounds and do not exceed 6. Over front operation shall be performed within 2 degrees in front of 75 % of tipping loads as determined by SAE J765-Crane Stability chassis.
  • Page 17 MEMO TADANO LTD. TADANO AMERICA CORPORATION (INTERNATIONAL DIVISION) 4-12, Kamezawa 2-chome, Sumida-ku, 4242 West Greens Road. Tokyo 130-0014, JAPAN Houston, Taxas, 77066 U.S.A. PHONE: 81-3-3621-7750 PHONE: (281) 869-0030 FAX: 81-3-3621-7785 FAX: (281) 869-0040 http://www.tadano.com http://www.tadanoamerica.com Form No. GR-900-2-00103/US-01 - 17 -...
