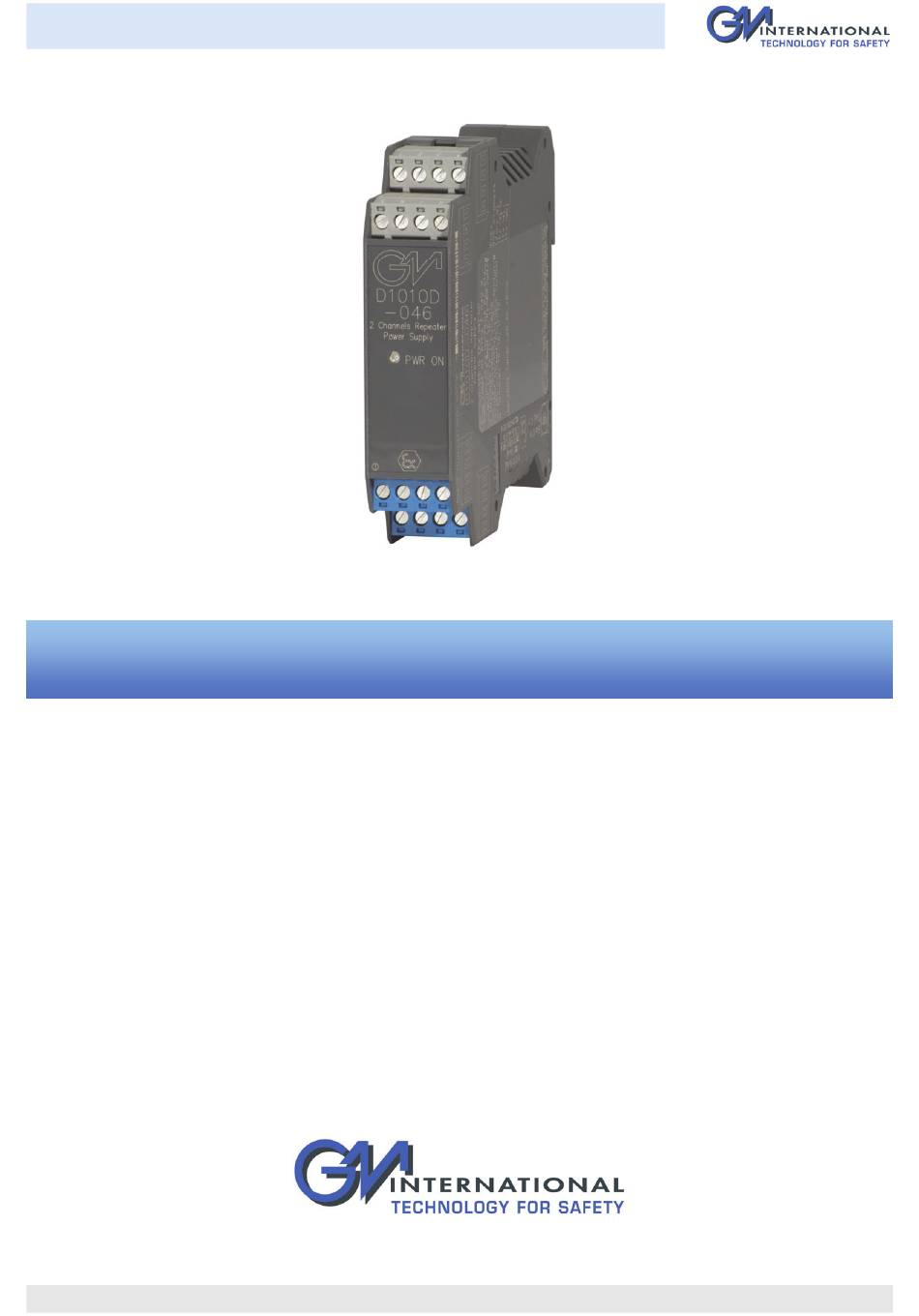

- Page 1 D1010S-046 - D1010D-046 INSTRUCTION & SAFETY MANUAL SIL 2 Repeater Power Supply Smart-Hart compatible DIN-Rail Models D1010S-046, D1010D-046 D1010-046 - SIL 2 Repeater Power Supply Smart-Hart compatible ISM0066-11...
-
Page 2: Technical Data
Characteristics General Description: The single and dual channel DIN Rail Repeater Power Supply, D1010S-046 and D1010D-046, provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA transmitters, or separately powered 3, 4 wires 4-20, 0-20 mA transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. -
Page 3: Hazardous Area
Ordering information Model: D1010 Power Bus and DIN-Rail accessories: DIN rail anchor MCHP065 DIN rail stopper MOR016 1 channel S-046 Terminal block male MOR017 Terminal block female MOR022 2 channels D-046 Power Bus enclosure Front Panel and Features SIL 2 according to IEC 61508:2010 Ed. 2 for Tproof = 7 / 10 years (≤10% / >10 % of total SIF) with active input. ... - Page 4 Parameters Table In the system safety analysis, always check the Hazardous Area devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area and gas group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D1010-046 series Associated Apparatus connected to it.
- Page 5 When used with separate powered intrinsically safe devices, check that maximum allowable voltage, current (Ui/Vmax, Ii/Imax) of the D1010-046 Associated Apparatus are not exceeded by the safety parameters (Uo/Voc, Io/Isc) of the Intrinsically Safe device, indicated in the table below: D1010-046 D1010-046 Associated Must...
-
Page 6: Function Diagram
Powered Tx Sink I In 2 Out 2 2 Wire Tx Source I Source V External Powered Tx Sink I MODEL D1010S-046 Supply 24 Vdc In 1 Out 1 2 Wire Tx Source I Source V External Powered Tx Sink I D1010-046 - SIL 2 Repeater Power Supply Smart-Hart compatible G.M. - Page 7 Function Diagram HAZARDOUS AREA ZONE 0 (ZONE 20), GROUP IIC SAFE AREA, ZONE 2, GROUP IIC T4 Connections for Duplication of 2 wires Transmitter Input Safety Description Restriction on specifications for 2 wires Transmitter Input: Terminals 14-11 Bidirectional communication for Smart Transmitter is provided only on channel 1 Uo/Voc = 27.4 V The minimum supply voltage available for Transmitter (Vtx) is 12.9 V at 20 mA input Io/Isc = 79 mA...
- Page 8 Safety Function and Failure behavior: D1010S-046 is considered to be operating in Low Demand mode, as a Type A module, having Hardware Fault Tolerance (HFT) = 0. The failure behaviour of the D1010S-046 (when the output current range is 4 to 20 mA) is described by the following definitions: □...
- Page 9 Safety Function and Failure behavior: D1010S-046 is considered to be operating in Low Demand mode, as a Type A module, having Hardware Fault Tolerance (HFT) = 0. The failure behaviour of the D1010S-046 (when the output current range is 4 to 20 mA) is described by the following definitions: □...
- Page 10 Functional Safety Manual and Application Application for D1010D-046, with active input (external powered Tx) Supply 24 Vdc Source I External Powered Tx Sink I In 1 Channel 1 Out 1 D1010D-046 Source I External Powered Tx Sink I In 2 Channel 2 Out 2 Description:...
- Page 11 Functional Safety Manual and Application Application for D1010D, with passive input (2 wires Tx) Supply 24 Vdc 2 wire Source I In 1 Sink I Channel 1 Out 1 D1010D-046 Source I In 2 Sink I Channel 2 Out 2 Description: For this application, enable 4 - 20 mA output current (source or sink) mode for each channel of D1010D, setting the internal dip-switches in the following mode (see page 13 for more information):...
-
Page 12: Operation
The wiring cables have to be proportionate in base to the current and the length of the cable. On the section “Function Diagram” and enclosure side a block diagram identifies all connec- tions and configuration DIP switches. Identify the number of channels of the specific card (e.g. D1010S-046 is a single channel model and D1010D-046 is a dual channel model), the function and location of each connection terminal using the wiring diagram on the corresponding section, as an example: Connect 24 Vdc power supply positive at terminal “3”... -
Page 13: Switch Positions
Configuration An output configuration DIP Switch is located on component side of pcb, by closing switch “ON” (1-2 for channel 1, 3-4 for channel 2) output signal is configured for 0/1-5 Volts (250 W internal shunt), opening the switch produces the conventional 0/4-20 mA. Dip switch configuration Side A Panel View Switch positions... - Page 14 Calibration instruction and Troubleshooting In case a calibration check or readjustment is necessary the following equipment is required: Equipment Required Instrument Identification Adjustable Power Supply Range 0-35 V Resolution 0.1 V, Agilent Accuracy 1% Output Capability 200 mA E3611A Current Meter range 20 mA, Resolution 1 µA Accuracy 0.01% Agilent or Voltage Meter Range 10 V, Resolution 1 mV Accuracy 0.01% 34410A...
