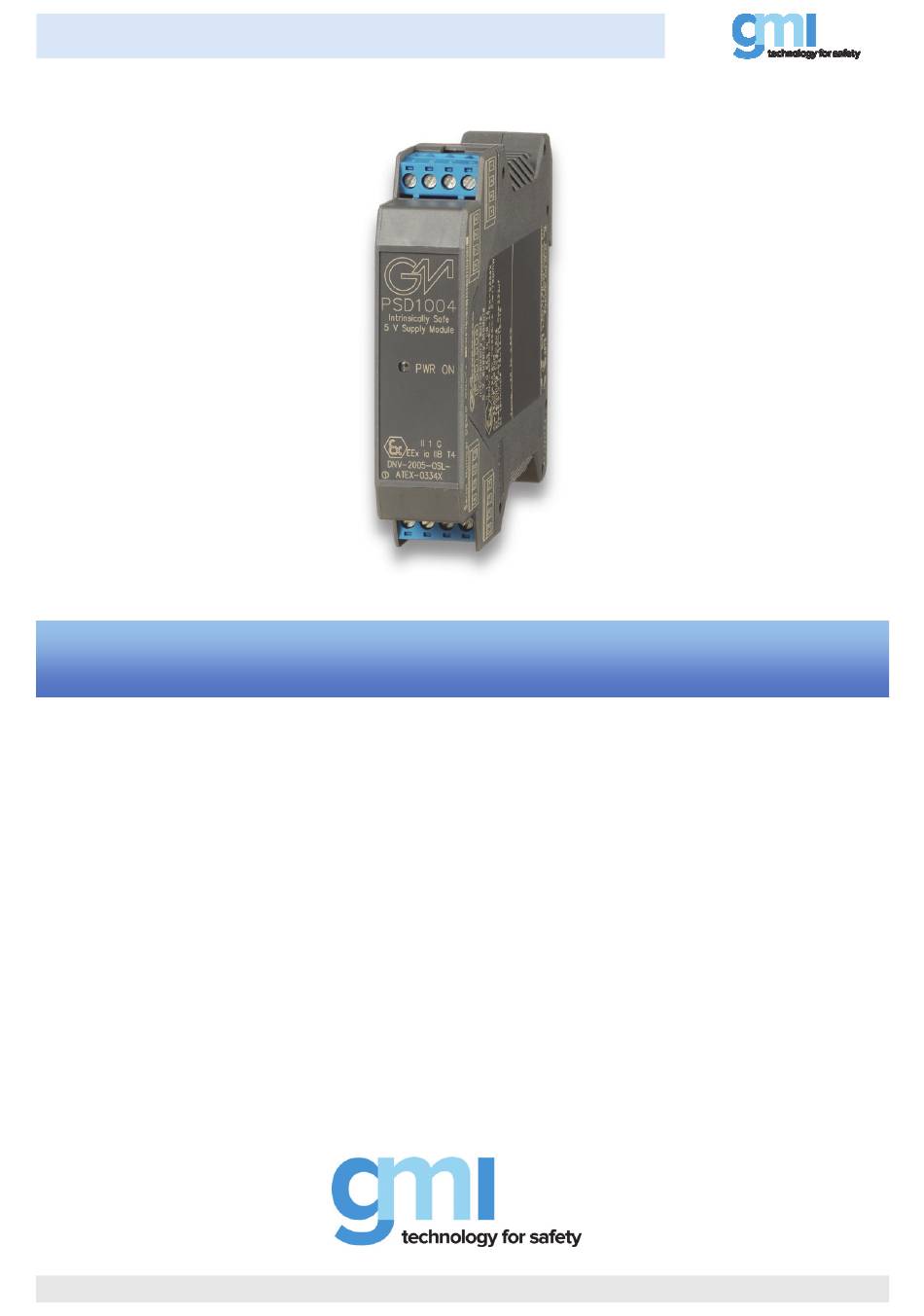

- Page 1 PSD1004 INSTRUCTION MANUAL Intrinsically Safe 5 V Supply Module DIN-Rail Model PSD1004 PSD1004 - Intrinsically Safe 5 V Supply Module ISM0074-5...

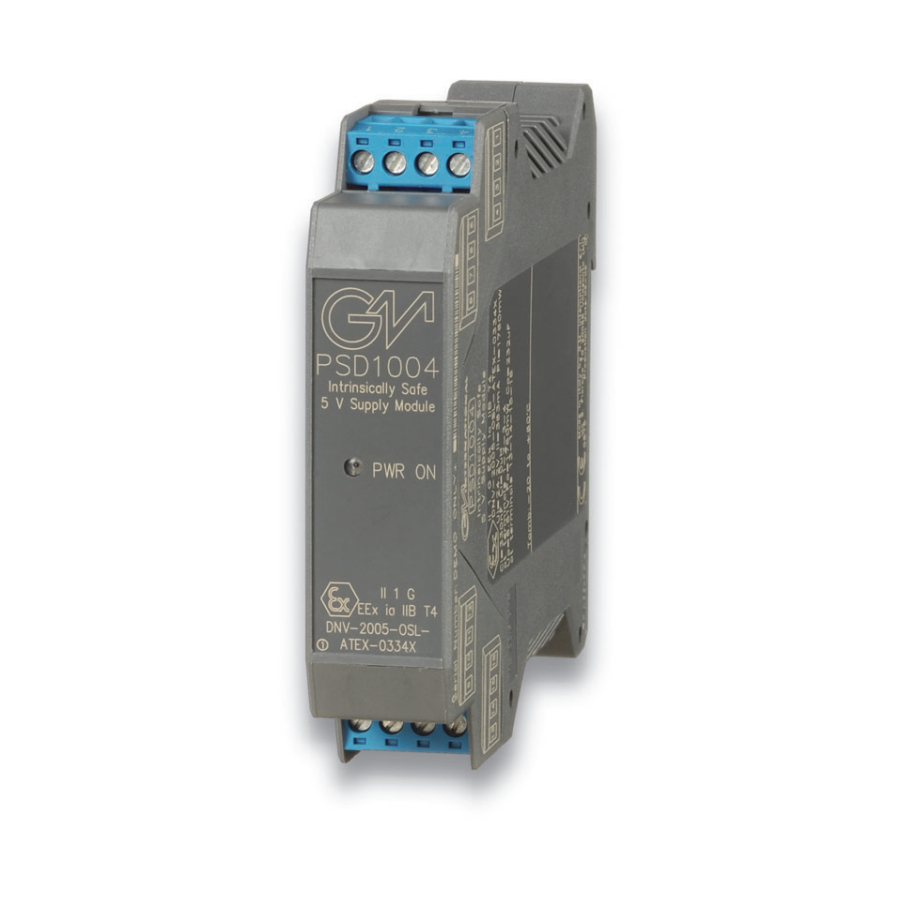

- Page 2 Characteristics General Description: The single channel DIN Rail Intrinsically Safe Power Supply PSD1004, is an intrinsically safe module that can be installed in Hazardous Area zone 0, gas group IIB, temperature classification T4. Powered at about 12 Vdc from the intrinsically safe associated apparatus PSD1001C supply module, it provides a stabilized 5 V, 160 mA supply with 500 V input/output isolation, short circuit and reverse input polarity protection, remote sensing capability and regulation.
- Page 3 Hazardous Area/Hazardous Locations and gas group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) indicated in this manual and enclosure side of the PSD1004 Intrinsically Safe Apparatus connected to it.
- Page 4 Identify the function and location of each connection terminal using the wiring diagram on the corresponding data sheet, as an example: Connect input power positive at terminal “1” or “3” and negative at terminal “2” or “4” (two terminals are provided for daisy chain connection if required to supply two PSD1004 with a single Associated Apparatus).
