Summary of Contents for GMI PSD5201

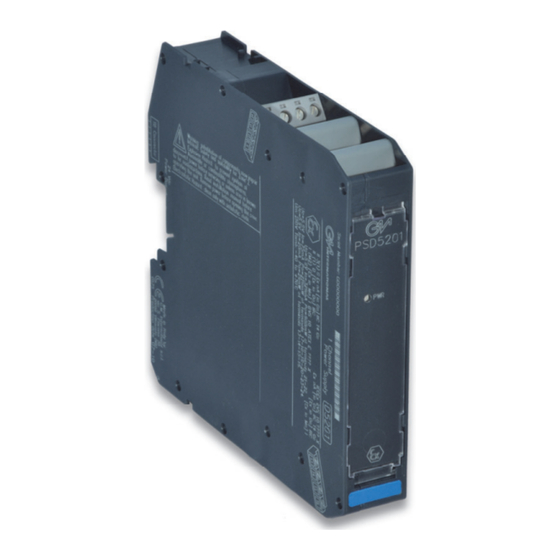

- Page 1 PSD5201 INSTRUCTION & SAFETY MANUAL SIL 3 Power Supply for Hazardous Area Equipment DIN-Rail, Model PSD5201 PSD5201 - SIL 3 Power Supply for Hazardous Area Equipment G.M. International ISM0186-3...
-
Page 2: Technical Data
Characteristics General Description: The PSD5201 is a single channel DIN Rail Power Supply able to drive measuring, process control equipment in IIB Group Hazardous Area, providing isolation between supply and output. A typical application is to drive high power devices, transmitters or other equipment with 14.5 V, 150 mA supply capability. -
Page 3: Ordering Information
HAZARDOUS AREA SAFE AREA 13/15 + Power Supply 24 Vdc + Output for high power device 14/16 - Power Supply 24 Vdc - Output for high power device G.M. International ISM0186-3 PSD5201 - SIL 3 Power Supply for Hazardous Area Equipment... - Page 4 Hazardous Area/Hazardous Locations and group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the PSD5201 series Associated Apparatus connected to it. Also consider the maximum operating temperature of the field device, check that added connecting cable and field device capacitance and inductance do not exceed the limits (Co/Ca, Lo/La, Lo/Ro) given in the Associated Apparatus parameters for the effective group.
- Page 5 HAZARDOUS AREA ZONE 0 (ZONE 20) SAFE AREA, ZONE 2 GROUP IIB T4 GROUP IIB MODEL PSD5201 2 wire Solenoid Device Valve 13/15 Supply 24 Vdc 14/16 10 - G.M. International ISM0186-3 PSD5201 - SIL 3 Power Supply for Hazardous Area Equipment...
- Page 6 Safety Function and Failure behavior: PSD5201 is considered to be operating in Low Demand mode, as a Type A module, having Hardware Fault Tolerance (HFT) = 0. The failure behaviour of PSD5201 for NE loads is described by the following definitions : □...
-
Page 7: Operation
Operation The PSD5201 module provides an output (see the output diagram in the “Technical Data” section for the details of the voltage and current provided to the load) in IIB Group Hazardous Area to drive IntrinsicallySafe loads, typically high power devices, transmitters or other measuring or process control equipment.
