¡IMPORTANTE!
IMPORTANT!
NO DESTRUIR
DO NOT DESTROY
Installation
Manual
and
de Instalación
Maintenance
y
Manual
Mantenimiento
con Información sobre Seguridad
with Safety Information
y Lista de Refacciones
and Parts List
LAS REFACCIONES RECOMENDADAS SE RESALTAN EN GRIS
RECOMMENDED SPARE PARTS HIGHLIGHTED IN GRAY
Effective June 2023

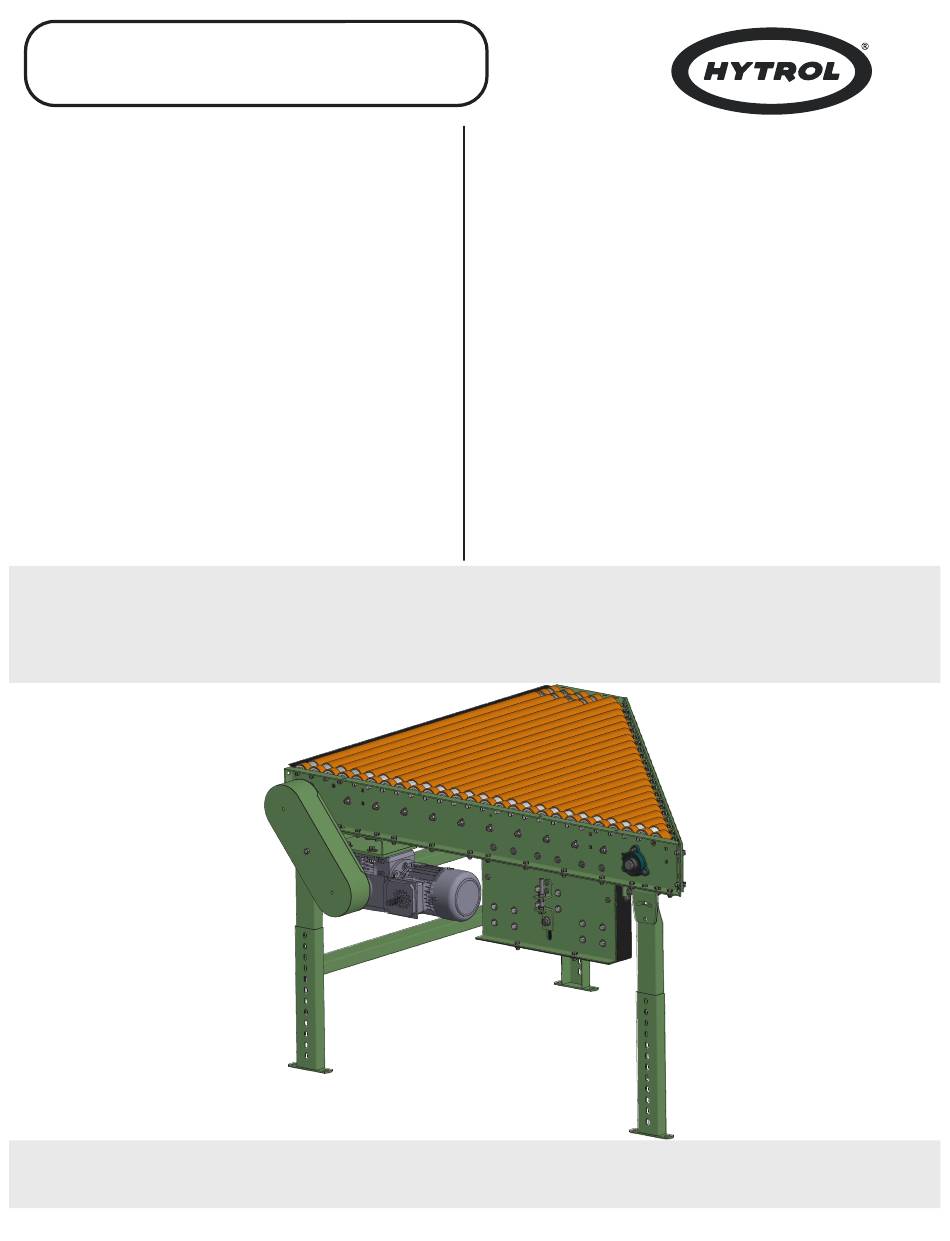

Model 199-LRSSP
Bulletin #753
HYTROL | Jonesboro, Arkansas
Copyright © 1947–2023 Hytrol. All rights reserved.
1

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 199-LRSSP and is the answer not in the manual?

Questions and answers

Summary of Contents for HYTROL 199-LRSSP

  • Page 1 Safety Information y Lista de Refacciones and Parts List LAS REFACCIONES RECOMENDADAS SE RESALTAN EN GRIS RECOMMENDED SPARE PARTS HIGHLIGHTED IN GRAY Effective June 2023 Model 199-LRSSP Bulletin #753 HYTROL | Jonesboro, Arkansas Copyright © 1947–2023 Hytrol. All rights reserved.
  • Page 2: Table Of Contents

    199-LRSSP Unit Side View . . . . . . . . . . . . . . . . . .8...
  • Page 3: Safety Information

    . In an effort to reduce the possibility of injury to personnel working around HYTROL conveying equipment, safety labels are placed at B) Where employee safety is dependent upon stopping and/or various points on the equipment to alert them of potential hazards .
  • Page 4: Installation

    INSTALLATION WARNING! Electrical controls shall be installed and wired by a qualified electrician . Wiring information for the motor and controls are furnished by • Conveyor Set-Up the equipment manufacturer . 1 . Mark a chalk line on floor to locate center of the conveyor . •...
  • Page 5: Operation

    . (TENSIÓN CORRECTA) 2% OF SPROCKET CENTERS (1/4" O 2% DE CENTROS Contact Hytrol for correct belt replacement part # . Refer to Factory Order ENTRE CATARINAS APROX.) Number on side of conveyor . TO REPLACE BELT: 1 .
  • Page 6: Troubleshooting

    3) Have electrician check and correct as necessary . 4) Low lubricant level in reducer . 4) Relubricate per manufacturer’s recommendations . For HYTROL 5) One or more V-belts too tight . reducer, refer to Installation and Maintenance Manual #684 (Speed Reducers 4A, 4AC, 5A, 5AC) .
  • Page 7: Extended Take-Up Exploded View

    • Extended Take-Up - Exploded View (Compensación extendida - Vista despiezada) 4 15 14 16 15 Note: 45"/ 49"BR Shown (Contact Factory For Other Options) Ref. # Description Angle Bracket - LRSSP Angle Bracket - LRSSP Spacer - .635" x 7/8" x 1-19/32" Snub Return Idler Bracket Sheave Mounting Channel Snub Return Idler Bracket...
  • Page 8: Extended Take-Up Side View

    / 49"BR Shown (Contact Factory For Other Options) Ref. # Description Underside Bed Cover Butt Coupling Angle Long Side Channel Weld 2 .5" Snub Idler Assembly - Inside Groove MSN-06 MSC-06 NORD Gearmotor • 199-LRSSP Unit - Side View (Unidad 199-LRSSP - Vista lateral)
  • Page 9: 199-Lrssp Unit Under View

    • 199-LRSSP Unit - Under View (Unidad 199-LRSSP - Vista inferior) Ref. # Description Spur Plate Gussett Bracket Gussett Bracket Underside Bed Cover V-Belt Guard USBC Mounting Angle Butt Coupling Side Channel - Short Side • Drive Assembly (Conjunto de accionamiento) Ref.
  • Page 10: Sheave Assembly Side View

    • Sheave Assembly - Side View (Conjunto de roldana - Vista lateral) Ref. # Description Sheave Retainer Cross Channel Flange Bearing Bracket Sheave - 1B, 4 .0" x 1-1/4" Bearing - Cast Iron, 2-Bolt, 1-1/4" Bearing - Cast Iron, 3-Bolt, 1-1/4" Drive/Slave Shaft - 9-7/16"...
  • Page 11: Spur Rollers Top View

    • Spur Rollers - Top View (Rodillos de espuela - Vista superior) DETAIL A SCALE 0.40 : 1 DETAIL B SCALE 0.40 : 1 Ref. # Description Support Channel Weld Support Angle Take-up Bolt Low Elevation Spur Roller Bracket 3/8-16" NC2B Hex Jam Nut Double Groove Spur Rollers Spur Rollers...
  • Page 12: Recepción Y Desembalaje

    Vista lateral de la unidad 199-LRSSP ....8 advertencia prominentes en el área o en el equipo en vez de la protección.
  • Page 13: Etiquetas De Mantenimiento Y Seguridad

    En un esfuerzo por reducir la posibilidad de lesiones del personal que funcionamiento. trabaja alrededor del equipo transportador HYTROL, se colocan etiquetas Antes de reiniciar un transportador detenido por una emergencia, se debe realizar una inspección del mismo y determinar la causa de la detención. El dispositivo de...
  • Page 14: Instalación Del Soporte

    (CONTRA TUERCA) Comuníquese con Hytrol para conocer el n.º de pieza correcto del repuesto de la correa. Consulte el Número de pedido de fábrica en el costado del transportador. LOCK BOLT...
  • Page 15: Alineación Y Tensado De La Cadena De Accionamiento

    5) Una o más correas en V están demasiado apretadas. 4) Vuelva a lubricar de acuerdo con las recomendaciones del fabricante. Para el reductor de HYTROL, consulte el Manual de instalación y mantenimiento n.º 684 (Reductores de velocidad 4A, 4AC, 5A, 5AC).
  • Page 16 • Planned Maintenance Checklist (Listado de comprobación de mantenimiento planificado) Schedule (Horario) Component Suggested Action (Componente) (Sugerencia) Weekly Monthly Quarterly (Semanal) (Mensual) (Trimestral) Check Noise (Revisar el Ruido) Motor (Motor) Check Temperature (Revisar la Temperatura) Check Mounting Bolts (Revisar los Tornillos de Montaje) Check Noise (Revisar el Ruido) Reducer (Reductor) Check Temperature (Revisar la Temperatura)
