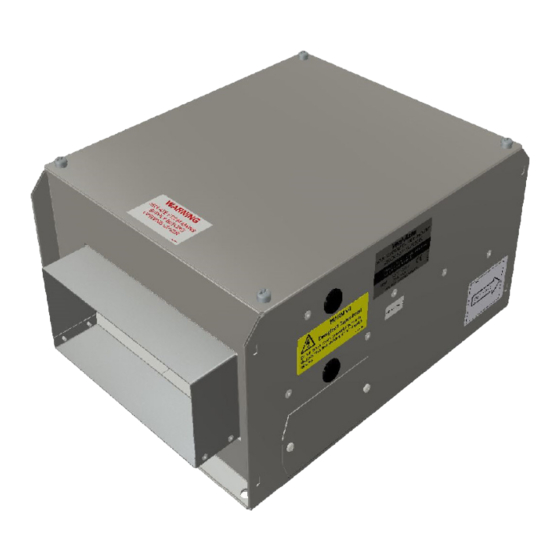

- Page 1 Acoustic Residential Purge Ventilator Installation and Wiring Instructions Instructions Stock Ref. No. Purge Ventilator 477988 Purge Ventilator XL 479829 PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. THESE INSTRUCTIONS SHOULD BE LEFT WITH THE END USER...
- Page 2 4. Certain applications may require the installation of sound attenuation to achieve the sound levels required. 5. The unit is designed and specified for use with Vent-Axia controls, dampers, grilles and accessories. 6. All mains connections to the unit using flexible wiring or any additional controls wiring must use cable glands sufficient to retain the IP rating of the unit and provide cable retention to the requirements of EN60335-1 Clause 25.15.
- Page 3 For floor or ceiling mounting Purge Ventilator Fixing locations Purge Ventilator XL...
- Page 4 Electrical connections Mains Terminals Mains Cable Entry Control Cable Entry Control Board Mains Terminals Note X not used...
- Page 5 Control board wiring for external speed control Move switch to EX position Internal speed control only Dimensions Purge Ventilator Dimensions (mm) Weight kg Dimensions (mm) Weight kg...
- Page 6 Purge Ventilator XL Dimensions (mm) Weight kg Compatiable Controllers 105206602 Remote Speed Control 475775 Trickle/Boost Controller Spare Parts Component Part Number Motorised Impeller 434597 Control PCB 475753...
- Page 7 Purge Fan Wiring...
- Page 8 SALES ENQUIRIES: Tel: 0844 8560591 Fax: 01293 534898 TECHNICAL SUPPORT: Tel: 0344 8560595 Fax: 01293 532814 For details of the warranty and returns procedure please refer to www.vent-axia.com or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX 477995 C 0319...
