Summary of Contents for Vent-Axia PureAir Sense

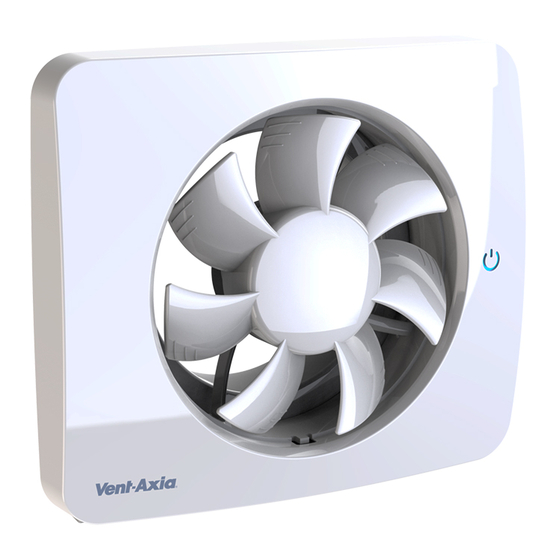

- Page 1 P U R E A I R S E N S E B a t h ro om Fa n w it h Od o ur Sens e Tec hnology A product by Instruction Manual...
-
Page 2: Read This First
See the ’Quick App Connection’ section in this manual rain/snow with a hood/exterior grille. (page 11) for initial set up, or visit the Vent-Axia website for detailed information and downloadable content on all fan functions with and without the app: www.vent-axia.com... -
Page 3: Dimensions (Mm)
+/- is provided for certain functions. Lit lamps next to each Hole size 105 - 130 mm symbol indicates the function is selected. Material ABS plast See the Vent-Axia website for detailed information on all Protection rating IP44 fan functions with and without the app: www.vent-axia.com Insulation class Voltage frequency... -
Page 4: Electrical Wiring
Electrical Wiring • Electrical installation must be carried out by an authorised electrician. • The fan is double insulated and should not be grounded. • The fan is fitted with a multi-pole switch and does not require a pre-wired external switch. Installation Options The fan can be connected in three different ways depending on the desired function. -
Page 5: Mounting Options
Mounting Options The fan is suitable for ceiling and wall mounting. EØ FØ EØ FØ EØ FØ 28.5 Capacity Curve Maximum flow and available pressure 140 m³ / 39l/s / h_57 Pa with Ø 118mm (125) adapter. Ø100 max speed Ø125 max speed Volume Flow l/s... - Page 6 Mounting Ø118 Ø98 Ø98-100 Ø108 Ø118 Ø127 Ø125 Ø133 1-2° Min 200 mm...
-
Page 7: Installation
(x4) (x1) Min 120mm (x4) (x4) Installation... - Page 8 100-240VAC 50/60Hz...
-
Page 9: Cleaning And Maintenance
On / 1 Cleaning & Maintenance The Vent-Axia PureAir Sense is designed to work efficiently for many years. For the fan to work correctly, it must be cleaned regularly. The cleaning interval is determined by how long the fan is operated and the air quality. -
Page 10: Warranty
Mounting of Magnetic Front Cover (accessory) Warranty We provide a 7-year warranty against manufacturing defects. For the warranty to be valid, proof of purchase is required and the fan: • must be assembled and installed in accordance with the installation guide in this manual •... - Page 11 Click the ’Finalise and fan are connected. Set Up’ button to finish. Please visit the Downloads section of the Pure Air Sense product page on our website for further instructions on using all the app functions: www.vent-axia.com/pureairsense...
- Page 12 Flashing yellow Reset The delay timer is counting (to factory settings) Activate Touch and down, flashing more 1 touch hold for 5 sec quickly towards the end. © Copyright Vent-Axia ® 0119 479563A 008752...
