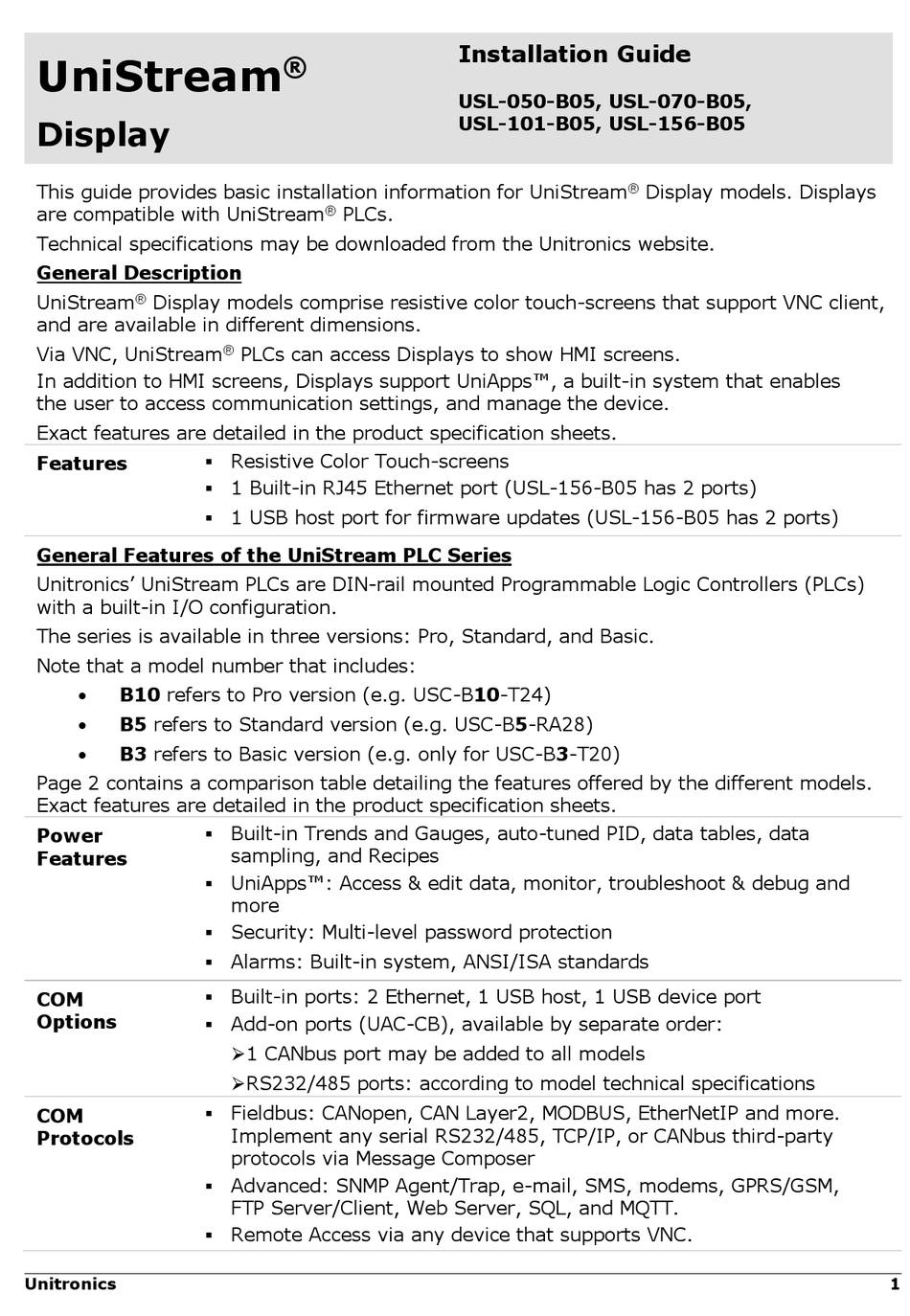

UniStream
Display
This guide provides basic installation information for UniStream
are compatible with UniStream
Technical specifications may be downloaded from the Unitronics website.
General Description
UniStream
®
Display models comprise resistive color touch-screens that support VNC client,
and are available in different dimensions.
Via VNC, UniStream
In addition to HMI screens, Displays support UniApps™, a built-in system that enables
the user to access communication settings, and manage the device.
Exact features are detailed in the product specification sheets.
Features
General Features of the UniStream PLC Series
Unitronics' UniStream PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs)
with a built-in I/O configuration.
The series is available in three versions: Pro, Standard, and Basic.
Note that a model number that includes:
B10 refers to Pro version (e.g. USC-B10-T24)
B5 refers to Standard version (e.g. USC-B5-RA28)
B3 refers to Basic version (e.g. only for USC-B3-T20)
Page 2 contains a comparison table detailing the features offered by the different models.
Exact features are detailed in the product specification sheets.
Power
Features
COM
Options
COM
Protocols
Unitronics
®
®
PLCs.
®
PLCs can access Displays to show HMI screens.
Resistive Color Touch-screens
1 Built-in RJ45 Ethernet port (USL-156-B05 has 2 ports)
1 USB host port for firmware updates (USL-156-B05 has 2 ports)
Built-in Trends and Gauges, auto-tuned PID, data tables, data
sampling, and Recipes
UniApps™: Access & edit data, monitor, troubleshoot & debug and
more
Security: Multi-level password protection
Alarms: Built-in system, ANSI/ISA standards
Built-in ports: 2 Ethernet, 1 USB host, 1 USB device port
Add-on ports (UAC-CB), available by separate order:
1 CANbus port may be added to all models
RS232/485 ports: according to model technical specifications
Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more.
Implement any serial RS232/485, TCP/IP, or CANbus third-party
protocols via Message Composer
Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM,
FTP Server/Client, Web Server, SQL, and MQTT.
Remote Access via any device that supports VNC.
Installation Guide
USL-050-B05, USL-070-B05,
USL-101-B05, USL-156-B05
®
Display models. Displays
1
Advertisement
Related Manuals for Unitronics USL-050-B05
Summary of Contents for Unitronics USL-050-B05
- Page 1 1 USB host port for firmware updates (USL-156-B05 has 2 ports) General Features of the UniStream PLC Series Unitronics’ UniStream PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs) with a built-in I/O configuration. The series is available in three versions: Pro, Standard, and Basic.
- Page 2 USB device (programming port) No** * Note that B3 models do not support features requiring SD cards. In addition, Alarm History is not retained after PLC reset. ** Note that B3 models may be programmed only via Ethernet cable. Unitronics...
- Page 3 Read and understand this document. Verify the Kit Contents. Throughout this document, images based on the USL-050-B05 apply to all models. Alert Symbols and General Restrictions When any of the following symbols appear, read the associated information carefully.
- Page 4 Provides the interface for system updates and system log access. Note that USL-156-B05 has 2 USB Host ports. Power Supply Connection point for the Display power source. Input Connect the Terminal Block supplied with the kit to the end of the power cable. Unitronics...
-
Page 5: Mechanical Dimensions
UniStream ® Display Installation Space Considerations Allocate space for: the device access to ports For exact dimensions, please refer to the Mechanical Dimensions shown below. Mechanical Dimensions USL-050-B05 Unitronics... - Page 6 UniStream ® Display USL-070-B05 Unitronics...
- Page 7 UniStream ® Display USL-101-B05 Unitronics...
- Page 8 UniStream ® Display USL-156-B05 Unitronics...
- Page 9 3. Push the mounting brackets into their slots on the sides of the panel as shown below. Note that USL-050-B05 and USL-070-B05 models have 4 brackets, USL-101-B05 has 8 brackets and USL-156-B05 model has 10 brackets. 4. Tighten the bracket screws against the panel. Hold the brackets securely against the unit while tightening the screws.
- Page 10 Note that the shield must be connected only at one end of the cable; it is recommended to earth the shield at the Display-side. Keep shield connections as short as possible. Ensure shield continuity when extending shielded cables. Unitronics...
- Page 11 ® Display For detailed information, refer to the document System Wiring Guidelines, located in the Technical Library in the Unitronics’ website. Wiring the Power Supply The device requires an external power supply. In the event of voltage fluctuations or non-conformity to voltage power supply specifications, connect the device to a regulated power supply.
- Page 12 Connect button is activated; tap it to initiate the VNC connection. With Exit Selecting the With Exit option places an Exit VNC button on screen during a VNC session. This can be tapped in order to exit to UniApps. Unitronics...
- Page 13 Software. The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
