UniStream
Display
This guide provides basic installation information for UniStream
are compatible with UniStream
Technical specifications may be downloaded from the Unitronics website.

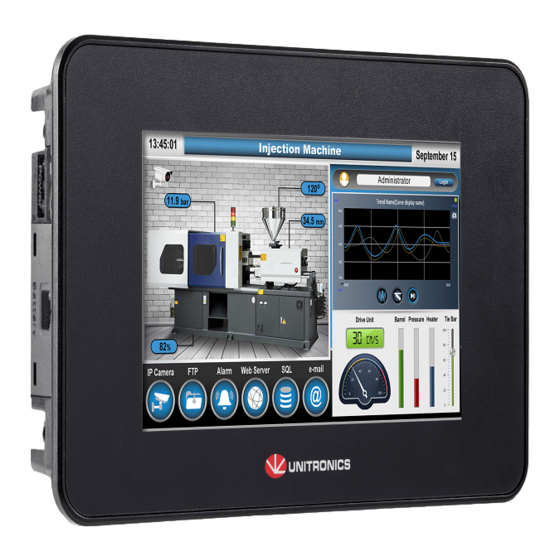

General Description
®
UniStream
Display models comprise resistive color touch-screens that support VNC client,
and are available in different dimensions.
Via VNC, UniStream
In addition to HMI screens, Displays support UniApps™, a built-in system that enables
the user to access communication settings, and manage the device.
Exact features are detailed in the product specification sheets.
Features
General Features of the UniStream PLC Series
Unitronics' UniStream PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs)
with a built-in I/O configuration.
The series is available in three versions: Pro, Standard, and Basic.
Note that a model number that includes:
B10 refers to Pro version (e.g. USC-B10-T24)
•
B5 refers to Standard version (e.g. USC-B5-RA28)
•
B3 refers to Basic version (e.g. only for USC-B3-T20)
•
Page 2 contains a comparison table detailing the features offered by the different models.
Exact features are detailed in the product specification sheets.
Power
Features
COM
Options
COM
Protocols
Unitronics
®
®
PLCs.
®
PLCs can access Displays to show HMI screens.
Resistive Color Touch-screens
1 Built-in RJ45 Ethernet port
1 USB host port for firmware updates.
Built-in Trends and Gauges, auto-tuned PID, data tables, data
sampling, and Recipes
UniApps™: Access & edit data, monitor, troubleshoot & debug and
more
Security: Multi-level password protection
Alarms: Built-in system, ANSI/ISA standards
Built-in ports: 2 Ethernet, 1 USB host, 1 USB device port
Add-on ports (UAC-CB), available by separate order:
1 CANbus port may be added to all models
RS232/485 ports: according to model technical specifications
Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more.
Implement any serial RS232/485, TCP/IP, or CANbus third-party
protocols via Message Composer
Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM,
FTP Server/Client, Web Server, SQL, and MQTT.
Remote Access via any device that supports VNC.
Installation Guide:
USL-050-B05, USL-070-B05
to download
®
Display models. Displays
SCAN
1
