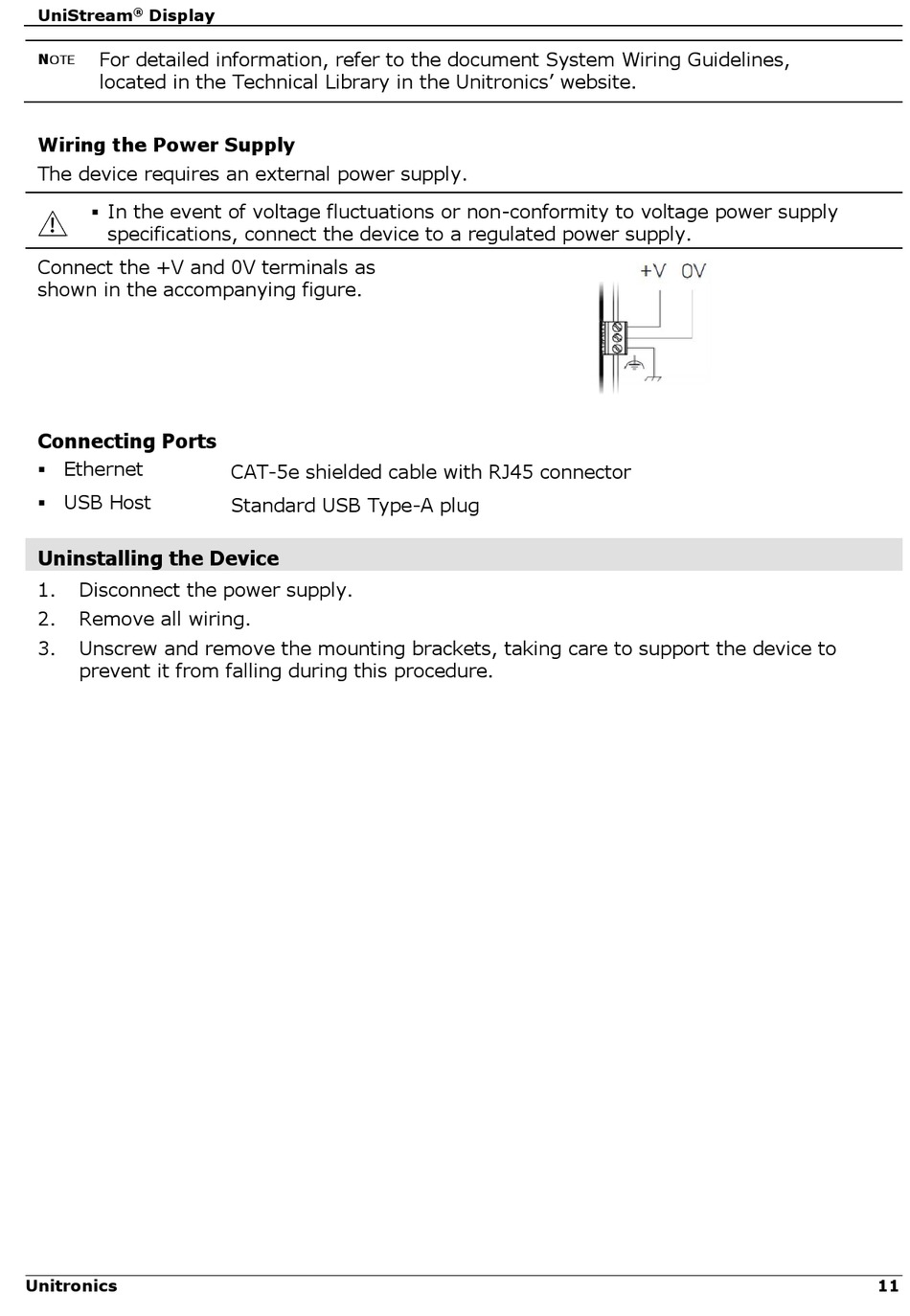

Unitronics USL-050-B05 Installation Manual page 11

UniStream ® Display
For detailed information, refer to the document System Wiring Guidelines,
N
OTE
located in the Technical Library in the Unitronics' website.
Wiring the Power Supply
The device requires an external power supply.
 In the event of voltage fluctuations or non-conformity to voltage power supply
specifications, connect the device to a regulated power supply.
Connect the +V and 0V terminals as
shown in the accompanying figure.
Connecting Ports
 Ethernet
 USB Host
Uninstalling the Device
1. Disconnect the power supply.
2. Remove all wiring.
3. Unscrew and remove the mounting brackets, taking care to support the device to
prevent it from falling during this procedure.
Unitronics
CAT-5e shielded cable with RJ45 connector
Standard USB Type-A plug
11
