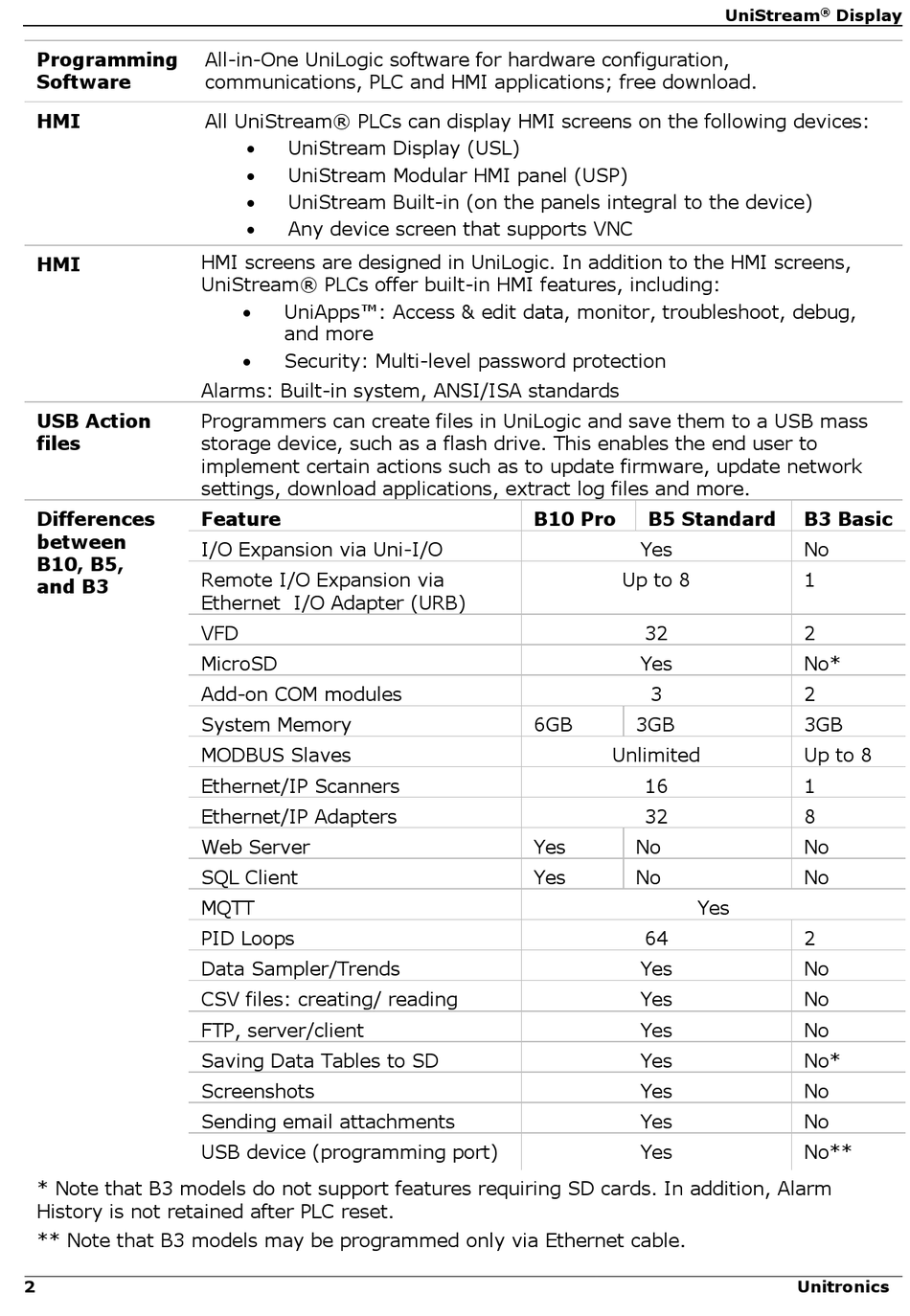

Unitronics USL-050-B05 Installation Manual page 2

Programming
Software
HMI
HMI
USB Action
files
Differences
between
B10, B5,
and B3
* Note that B3 models do not support features requiring SD cards. In addition, Alarm
History is not retained after PLC reset.
** Note that B3 models may be programmed only via Ethernet cable.
2
All-in-One UniLogic software for hardware configuration,
communications, PLC and HMI applications; free download.
All UniStream® PLCs can display HMI screens on the following devices:
 UniStream Display (USL)
 UniStream Modular HMI panel (USP)
 UniStream Built-in (on the panels integral to the device)
 Any device screen that supports VNC
HMI screens are designed in UniLogic. In addition to the HMI screens,
UniStream® PLCs offer built-in HMI features, including:
 UniApps™: Access & edit data, monitor, troubleshoot, debug,
and more
 Security: Multi-level password protection
Alarms: Built-in system, ANSI/ISA standards
Programmers can create files in UniLogic and save them to a USB mass
storage device, such as a flash drive. This enables the end user to
implement certain actions such as to update firmware, update network
settings, download applications, extract log files and more.
Feature
I/O Expansion via Uni-I/O
Remote I/O Expansion via
Ethernet I/O Adapter (URB)
VFD
MicroSD
Add-on COM modules
System Memory
MODBUS Slaves
Ethernet/IP Scanners
Ethernet/IP Adapters
Web Server
SQL Client
MQTT
PID Loops
Data Sampler/Trends
CSV files: creating/ reading
FTP, server/client
Saving Data Tables to SD
Screenshots
Sending email attachments
USB device (programming port)
B10 Pro B5 Standard
Yes
Up to 8
32
Yes
3
6GB 3GB
Unlimited
16
32
Yes No
Yes No
Yes
64
Yes
Yes
Yes
Yes
Yes
Yes
Yes
UniStream ® Display
B3 Basic
No
1
2
No*
2
3GB
Up to 8
1
8
No
No
2
No
No
No
No*
No
No
No**
