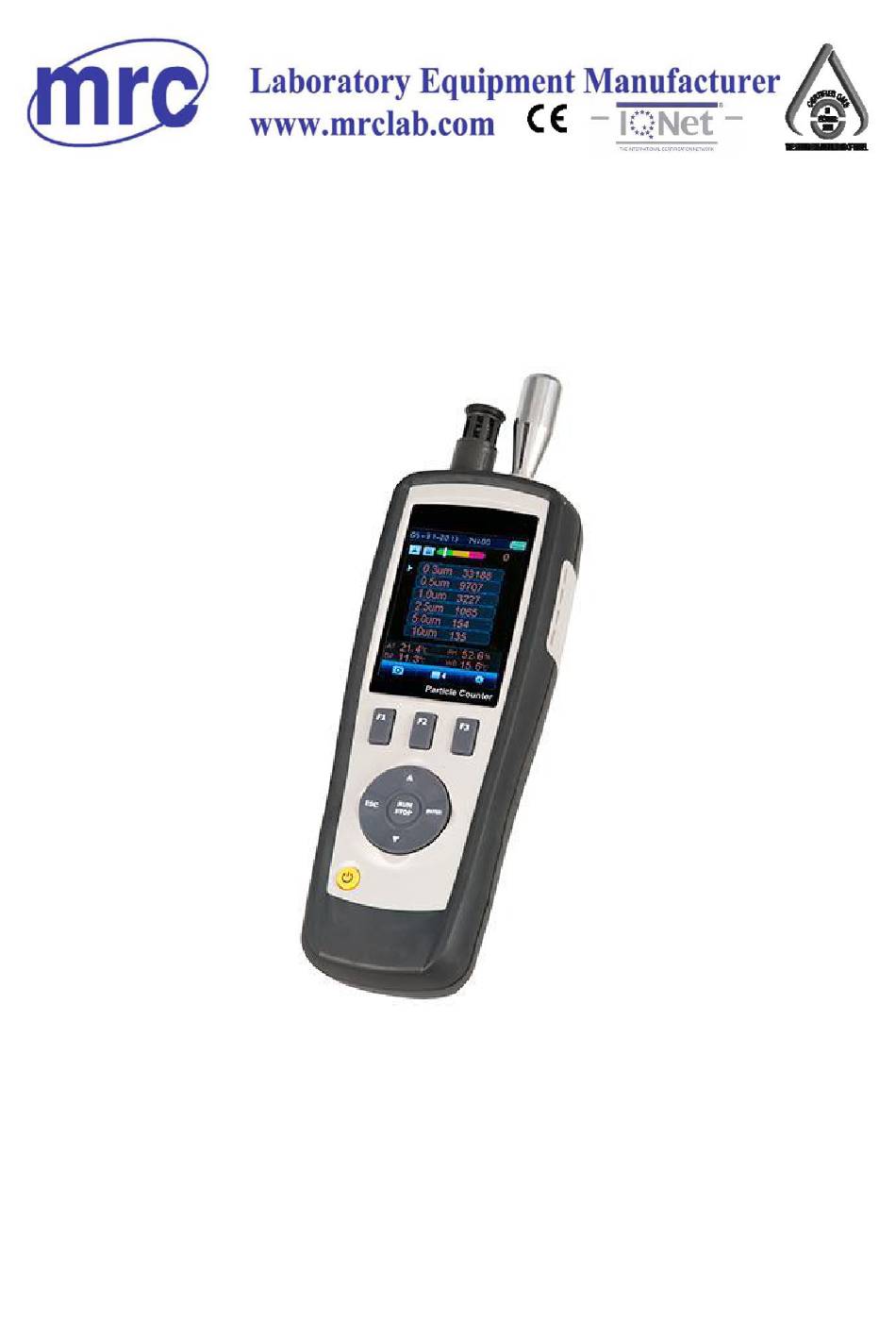

- Page 1 Manual Particle Counter PCE-PCO-1 / PCE-PCO -2 Hagavish 3 st. HOLON TEL: 972-3-5595252, FAX: 972-3-5594529 mrc@mrclab.com mrc.3.18...
-
Page 2: Table Of Contents
Manual Contents Introduction ......................3 Safety notes ......................3 Specifications ......................4 Delivery ............................4 System description ....................5 Switching on / off ........................5 Menu structure ..........................6 Symbols explanation ........................6 Instructions ......................6 Photo recording function ......................7 Video recording function ...................... -
Page 3: Introduction
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by MRC personnel. There is no warranty of damages or injuries caused by non-observance of the manual. -
Page 4: Specifications
PM 2.5 & PM 10 0 … 2000 ug/m³ Measurement range Resolution 1 ug/m³ Delivery 1 x particle counter PCE-PCO-1 or PCE-PCO-2 1 x zero filter 1 x battery 1 x charger 1 x USB cable 1 x user manual... -
Page 5: System Description
Manual System description 1. Display 9. Particle sensor 2. Function buttons 10. Temp. / RH sensor 3. Arrow up 11. Camera sensor 4. Enter 12. CO Sensor 5. Start / Stop button 13. USB Interface 6. ESC button 14. AC / DC connection 7. -
Page 6: Menu Structure
Pause measurement Alarm active Camera mode Video mode Instructions PCE-PCO-1 PCE-PCO-2 Select the menu item "particle measurement" and confirm with Enter. The following image (picture on the left side) appears on the display. The picture on the right-hand side appears depending on your settings (PCE-PCO-2 only). -
Page 7: Photo Recording Function
Press F3 while you are in the menu item „particle counters“ to enter the settings menu. Use the arrow button to navigate and confirm your choice by pressing Enter. Press ESC to terminate the function. PCE-PCO-1 PCE-PCO-2... -
Page 8: Sample Time
Start the input with Enter. Use the arrow keys to adjust the measurement time. Confirm your entry with Enter PCE-PCO-1 & PCE-PCO-2 5.3.2 Start Delay Start the input with Enter. Use the arrows to adjust the start delay. -
Page 9: Sample Cycle
Manual 5.3.5 Sample Cycle In this menu you can set the number of measurements. PCE-PCO-1 & PCE-PCO-2 5.3.6 Sample Mode In this menu you can adjust the display mode of the particle counter. Cumulative - Differential - Concentration - PCE-PCO-1 & PCE-PCO-2 5.3.6.1... -
Page 10: Interval
Manual 5.3.7 Interval In this menu you can set the pause between two measurement test runs. PCE-PCO-1 & PCE-PCO-2 5.3.8 Level Indication In this menu you can set which particle sizes you wish to be displayed. Use the arrow buttons to choose between the particle sizes. -
Page 11: Date / Time
Manual Menu item Description Date / Time Set time and date Font Colour Set font colour Language Set language Brightness Set display brightness Auto Power Off Set automatic power off Display Timeout Set automatic display timeout Alarm Select Alarm on / off Memory Status Shows (remaining) memory capacity of the memory card... -
Page 12: Brightness
Manual 5.5.4 Brightness Use the arrow to set the required brightness. Press ESC to save the settings and exit the menu. 5.5.5 Auto Power Off Use the arrow to set the automatic power off time. Select „Disable“ to switch off the function. ... -
Page 13: Factory Settings
Manual 5.5.9 Factory Settings Use the arrow to choose between „Yes“ and „NO“. Press ESC to save the settings and exit the menu. 5.5.10 Units (°C / °F) Use the arrow to choose between „°C“ and „°F“. ... -
Page 14: Disposal
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact MRC.
