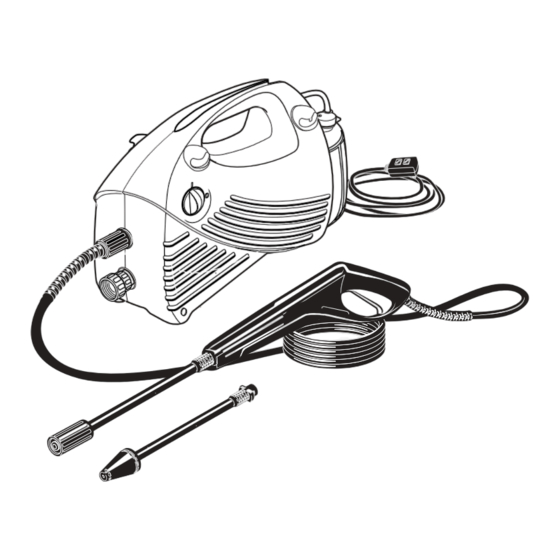

Kärcher K 2.40 Operator's Manual
  1. Manuals
  2. Brands
  3. Kärcher Manuals
  4. Pressure Washer
  5. K 2.40
  6. Operator's manual

Kärcher K 2.40 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model K 2.40
High Pressure Washer Operator Manual
Overview ........................................................................ 2
Precautions ................................................................. 2-4
Assembly Instructions .................................................... 4
Operating Instructions ................................................... 5
GFCI Instructions ........................................................... 6
Using the Accessories ................................................... 6
Working with Detergents ................................................ 7
Shut Down and Clean-Up .............................................. 8
Taking a Break ................................................................ 8
Winterizing and Long-Term Storage .............................. 8
Cleaning Tips ............................................................ 9-10
Optional Cleaning Accessories .................................... 10
Troubleshooting ...................................................... 11-12
Specifications
Operating pressure
Water volume
Voltage
Amp draw
In USA Call:
1-800-537-4129
or visit our website:
www.karcher-usa.com
5.961-056.0
(2006403-08/03)
1400 PSI
1.3 GPM
120 V
14 AMPS
Part No. 1.223-585.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K 2.40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kärcher K 2.40

Summary of Contents for Kärcher K 2.40

  • Page 1: Table Of Contents

    Model K 2.40 Part No. 1.223–585.0 High Pressure Washer Operator Manual Overview ................ 2 Precautions ..............2-4 Assembly Instructions ............ 4 Operating Instructions ........... 5 GFCI Instructions ............6 Using the Accessories ........... 6 Working with Detergents ..........7 Shut Down and Clean-Up ..........8 Taking a Break ..............

  • Page 2: Overview

    Model K 240 plus OVERVIEW Item Description 1. On/Off switch 2. High pressure outlet 3. Water inlet with internal water filter 4. Dirtblaster spray wand 5. High/Low spray wand 6. Trigger gun 7. Trigger gun safety lock 8. High pressure hose 9.
  • Page 3 IMPORTANT PRECAUTIONS – Read First! IMPORTANT SAFETY INSTRUCTIONS GROUND FAULT CIRCUIT INTERRUPTER PROTECTION WARNING – When using this product basic This pressure washer is provided with a precautions should always be followed, ground-fault circuit-interrupter (GFCI) built into including the following: the plug of the power-supply cord.

  • Page 4: Assembly Instructions

    IMPORTANT PRECAUTIONS – continued Water Supply (Cold Water Only) • Water hose must be at least 3/4 inch in • The water supply temperature must not diameter. exceed 104°F/40°C. • Flow rate of water supply must not fall • Never use the pressure washer to draw in below 2.5 GPM (gallons per minute).

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS Step 1 Step 2 Insert the spray wand of your Connect the high pressure hose to the unit’s high choice into the trigger gun. Push in and pressure outlet. turn clockwise to lock spray wand in place. Step 3 Step 4 Connect garden hose to unit’s water inlet.

  • Page 6: Gfci Instructions

    GFCI INSTRUCTIONS Note: The actual appearance of the GFCI may be different from this illustration. Step 1 Plug the Ground Fault Circuit Step 2 Press “TEST”, then press “RESET” Interrupter (GFCI) into a working outlet to assure proper connection to power. USING THE ACCESSORIES ®...

  • Page 7: Working With Detergents

    WORKING WITH DETERGENTS Karcher Pressure washers operate at two pressures. The high pressure setting is used for cleaning, you cannot apply detergents when working at high pressure. To apply detergents you must be operating at low pressure. For best results see Cleaning Tips on pages 8 &...

  • Page 8: Shut Down And Clean-Up

    SHUTTING DOWN & CLEAN-UP Step 1 Step 2 Step 3 Step 4 Remove detergent Turn the switch to “0” Turn off the water Press trigger to suction tube from source. release water position and unplug container and insert into pressure. cord from outlet.

  • Page 9: Cleaning Tips

    CLEANING TIPS Deck Cleaning Cement Patios, Brick and Stone (with or without detergent) Pre-rinse deck and surrounding area with (with or without detergent) fresh water. If using Kärcher Deck Wash, Pre-rinse cleaning surface with fresh water. If place detergent suction tube directly into using Karcher All Purpose Cleaner, place cleaning solution and apply to surface at low detergent suction tube directly into cleaning...

  • Page 10: Optional Cleaning Accessories

    CLEANING TIPS – continued Barbecue Grills, Outdoor Patio & Lawn Furniture Power Equipment & Gardening (with or without detergent) Pre-rinse furniture and surrounding area Tools with fresh water. If using Kärcher All (with or without detergent) Purpose Cleaner, place detergent suction Pre-rinse cleaning surface with fresh water.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Disconnect the machine from the power source before making any repair. Symptom Cause Solution Motor will not start On/Off switch is in the “OFF” Turn switch to the “ON” position position. Power cord is not plugged in. Plug in power cord. Extension cord is too long.
  • Page 12 TROUBLESHOOTING – continued Symptom Cause Solution Detergent suction tube not properly No detergent. Check connection. connected to the machine. Detergent is too thick. Dilute detergent, for best results use Kärcher detergent. Filter on detergent suction tube is Run warm water through filter to clogged.
