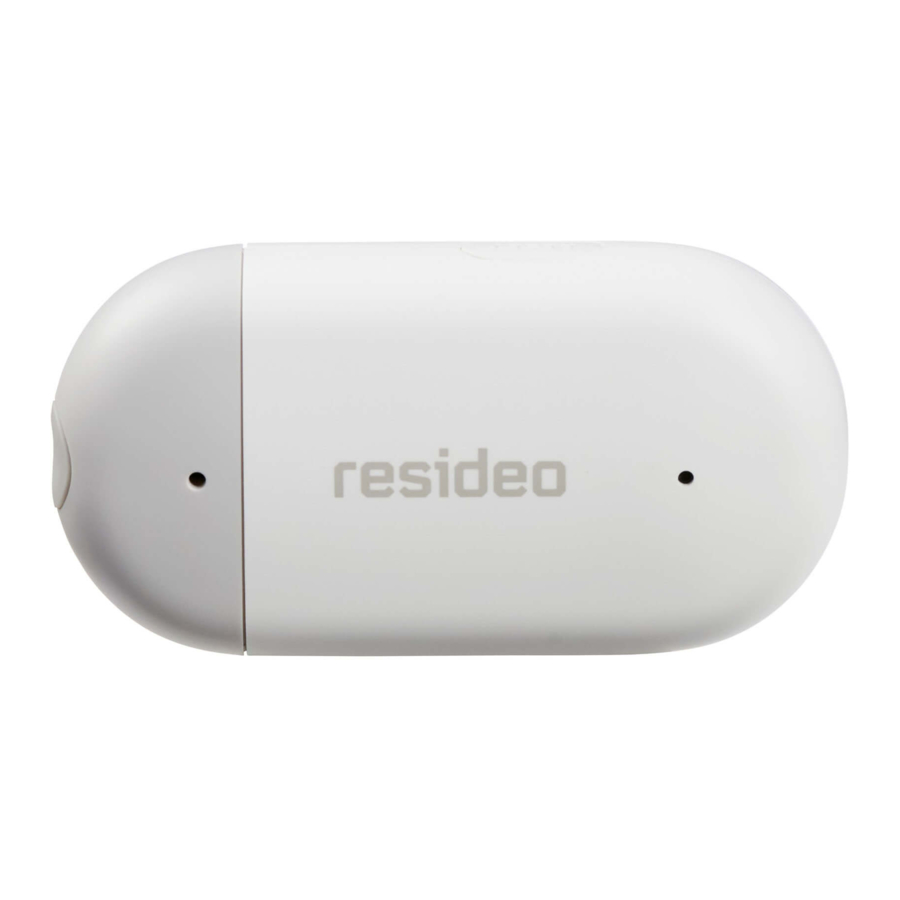

Resideo L1 - WiFi Water Leak And Freeze Detector Installation Manual

Included in the Box

Installation

Download Resideo App

1. Download the Resideo app onto your mobile device.


2. Launch the app and sign up for an account. Select L1 WiFi Water Leak and Freeze Detector from the device list.
   Note: If you already have an account, tap the add button and select your device from the list.

Connect to App

Follow instructions in app to complete setup.

Install Batteries

The leak detector is powered by 2 AA batteries (included). Open the battery cover on the detector and install batteries.

Water Leak Detector Diagram

Placement and Sensing

Do not submerge leak detector in water

Wall Mounting

Device can be installed on a wall while using the optional cable sensor.

Floor Placement

Device can be placed on the floor using the on-device water sensing contacts and the optional cable sensor.

Optional Cable Sensor

To install the cable sensor, remove the plug at the bottom of the device and plug in the cable sensor.

Accessory cable sensors (WLD3CABLE sold separately) can be connected to extend the cable and increase water sensing area. The entire length of the cable is a water sensor.

Note: The cable sensor jack is NOT for plugging in an adaptor. Doing so could damage the leak detector.

When a Leak is Detected

To Silence Alerts

Press the leak detector's button or tap the mute button in the app to mute the siren.

After you've addressed the cause of the alert, remove detector and cable sensor from water and wipe dry. Replace batteries if they were removed.

Troubleshooting

Device not Powering On

Ensure batteries have sufficient power and are inserted in the correct orientation. If batteries deplete completely, replace with 2 AA batteries.

Bluetooth Pairing Failed

If Bluetooth pairing fails at any stage, perform a factory reset.

Factory Reset

To factory reset for any reason, hold the reset button for 15 seconds.

Lighting Functions

Specifications

Part Number: RWLD3001-001, CHW3610W8001, YCHW3000W3003

Operating Temperature: 32°F to 131°F (0°C to 55°C)

Operating Humidity: 5 to 95% Non-Condensing

Shipping Temperature: -22°F to 158°F (-30°C to 70°C)

Shipping Humidity: 10 to 95% Non-Condensing

Buzzer Alarm: 100 DBA

Physical Dimensions: 3.9 x 2 x 1.1in (99.4 x 52.4 x 28.6mm)

Color: Grey/White

Power Input: 2x AA batteries

Weatherproofing: IP44

Action: Type 1

Rated Impulse Voltage: 71 V

Control Pollution Degree: 2

Purpose of Control: Operating electronic appliance control

Construction of Control: Independently mounted control

Frequency Range (Wi-Fi): 2412-2472MHz (2462 for FCC, ISED), max. EIRP: 20dBm

Frequency Range (Bluetooth): 2402- 2480MHz, max. EIRP: 10dBm
