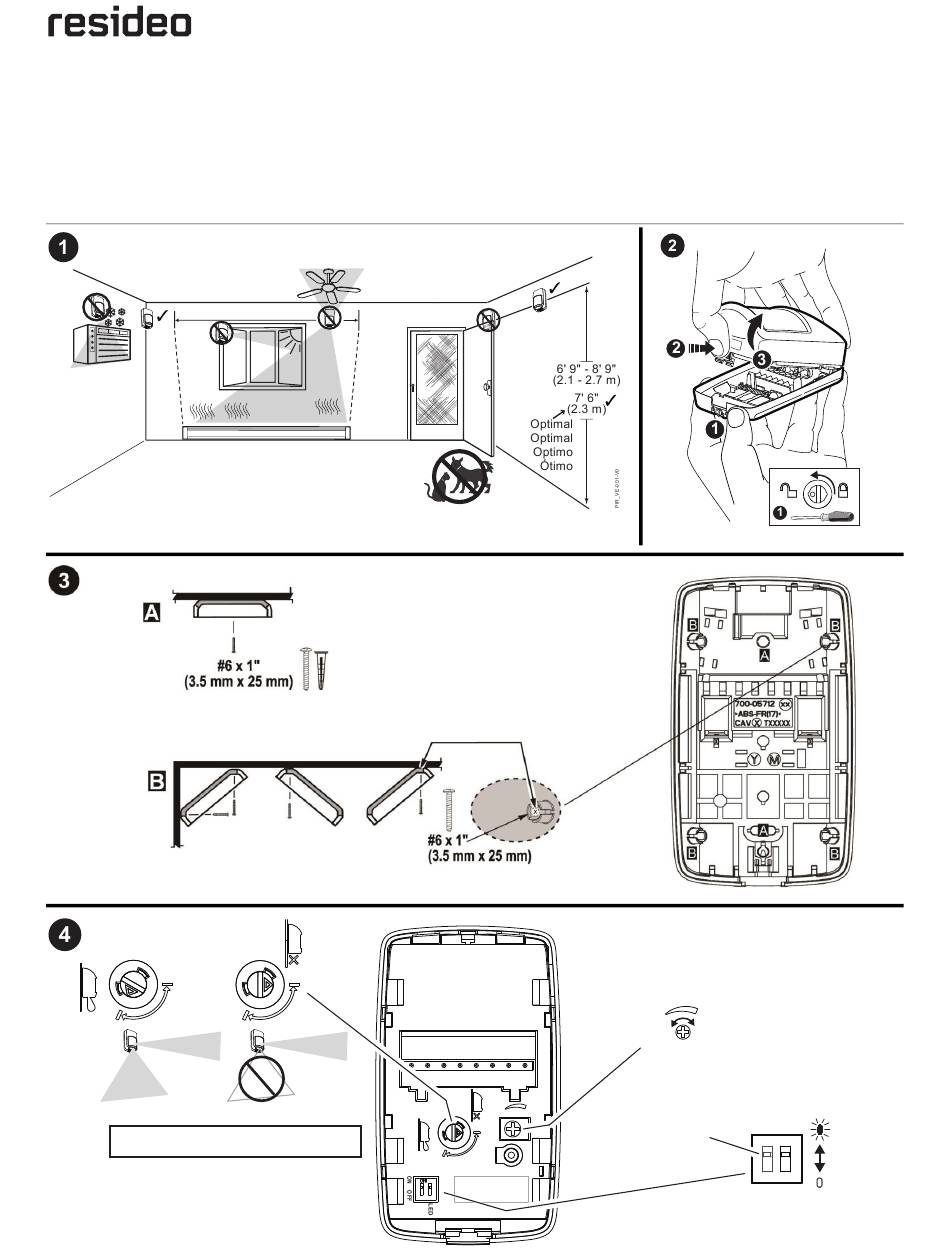

DT8050V
Dual Technology Motion Sensor
Détecteur de mouvement à double technologie
Sensor de movimiento de tecnología dual
Sensor de movimento de tecnologia dupla
Quick Installation Guide
Guide d'installation rapide
Guía Rápida de instalación
Guia rápido de instalação
*
Microwave Range Adjustment
DT8050V
Réglage de la portée des micro-ondes
Ajuste del rango de detección Microondas
OFF
Ajuste de Alcance Microondas
*
ON
MIN
MAX
(Sensibilité micro-ondes)
(Sensibilidad de Microonda)
MW
(Sensibilidade da Microonda)
SENSITIVITY
MIN
MAX
Not Used
LOOKDOWN
*
MW
Non utilisé
OFF
*
No utilzado
Factory default / Valeurs par défaut du fabricant /
ON
Defecto de fábrica / Padrão de fábrica
Não usado
ON
OFF
LED
DT8050V_004_V0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for resideo DT8050V
Summary of Contents for resideo DT8050V
- Page 1 DT8050V Dual Technology Motion Sensor Détecteur de mouvement à double technologie Sensor de movimiento de tecnología dual Sensor de movimento de tecnologia dupla Quick Installation Guide Guide d’installation rapide Guía Rápida de instalación Guia rápido de instalação Microwave Range Adjustment DT8050V Réglage de la portée des micro-ondes...
- Page 2 Tamper Alarm Power 30 mA 30 mA 17 mA Panel / Panneau / Panel / Controle 25 VDC 25 VDC 9-15 VDC (UL: 9.5-15 VDC) Zone Zone Zone Zone Ground +12V Sensor / Détecteur / Sensor / Sensor Walk Test Reset 30 sec <...
- Page 3 SPECIFICATIONS Operating Temperature: ..............................14° to 131° F / -10° to 55° C Relative Humidity: ..........................5 to 93% (UL tested at 93%); non-condensing Dimensions: ................................ 3.86 x 2.24 x 1.69in / 98 x 57 x 43mm Tamper: ..................................Cover and Wall Tamper Protection Electrical Power: ............................
- Page 4 Any attempt to reverse-engineer this device by decoding proprietary protocols, de-compiling firmware, or any similar actions is strictly prohibited. To protect the environment, a detailed installation guide is available on the Resideo website – Please consider before printing the document! SUPPORT &...
