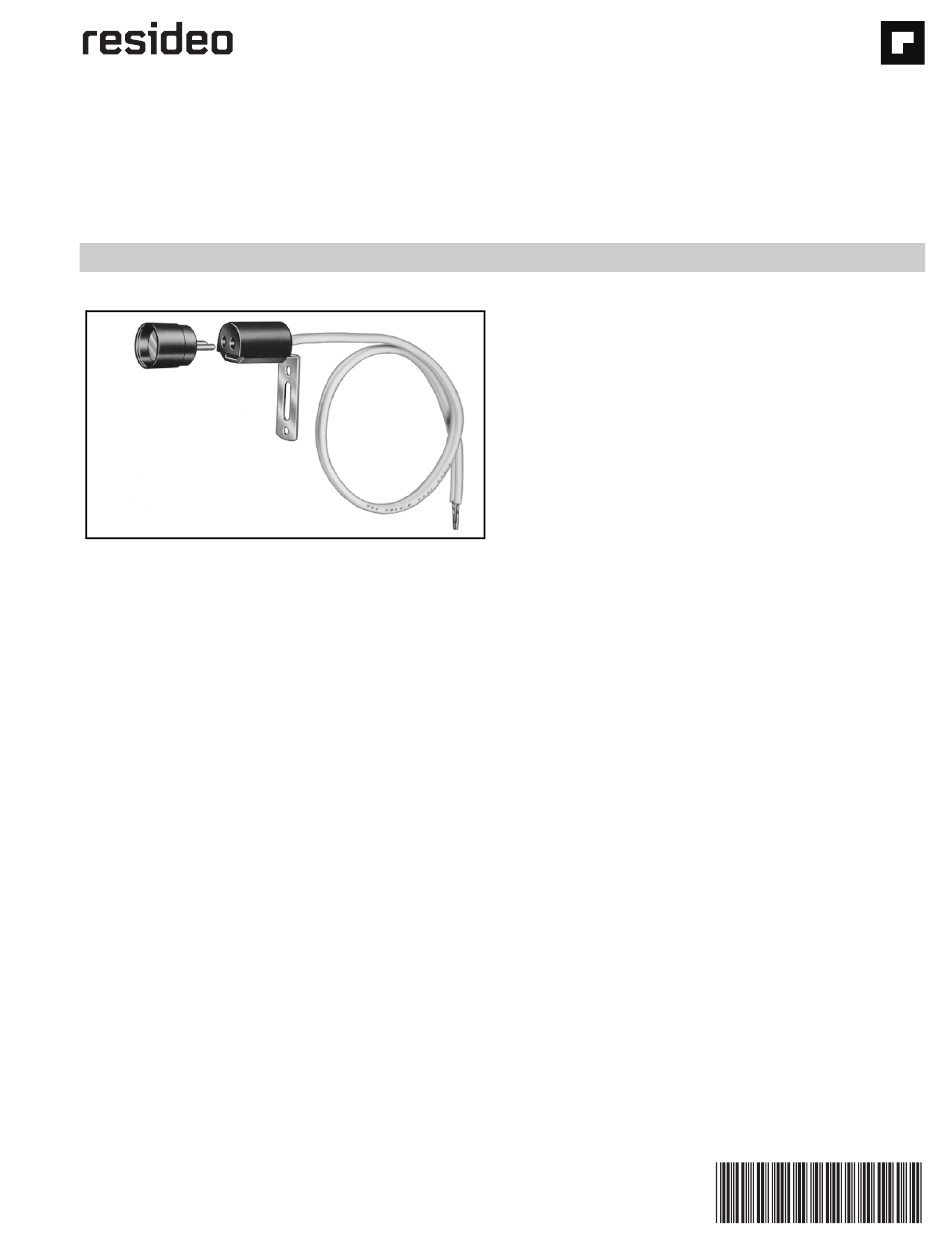

C554A

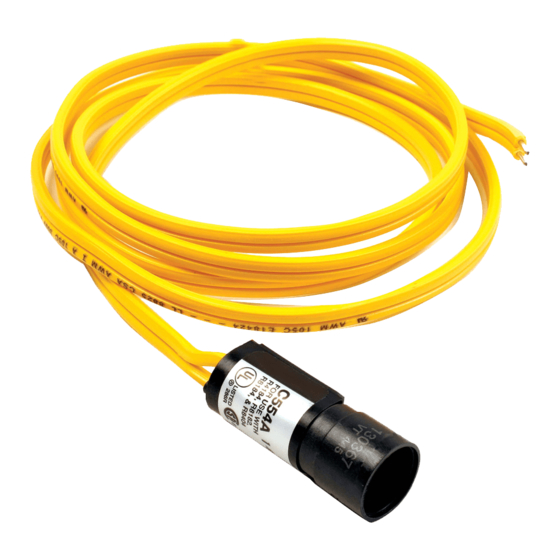

Cadmium Sulfide Flame Detector
APPLICATION
The C554A Cadmium Sulfide Flame Detector (cad cell) is a
photoconductive flame detector used with oil primary
controls such as R4166, R4184, R8182, R8184, R8185, R8404
and R8991.
FEATURES
• Cadmium sulfide sensing element provides faster
response than bimetal sensors.
• On flame failure, the cad cell causes the oil primary
control to shut down the main burner.
• Mounting brackets available to fit all applications.
• Entire cell is hermetically sealed (glass to metal) to reduce
cell deterioration by humidity, soot, or oil fumes.
• Plug-in cell for easy replacement.
• Recessed cell provides more accurate flame sighting and
prevents accumulation of dirt and soot on cell face.
PRODUCT DATA
60-2148-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C554A and is the answer not in the manual?

Questions and answers

Related Manuals for resideo C554A

Summary of Contents for resideo C554A

  • Page 1 • Recessed cell provides more accurate flame sighting and prevents accumulation of dirt and soot on cell face. APPLICATION The C554A Cadmium Sulfide Flame Detector (cad cell) is a photoconductive flame detector used with oil primary controls such as R4166, R4184, R8182, R8184, R8185, R8404 and R8991.

  • Page 2: Specifications

    Models: Leadwire: C554A Cadmium Sulfide Flame Detector two-wire, two-piece Yellow, single-molded, dual-cord, number 18 stranded wire. plug-in cell for use with oil primary controls such as R4166, NEC Class 1. Varied lengths available on request.

  • Page 3: Installation

    C554A CADMIUM SULFIDE FLAME DETECTOR 1/2 (13) 1/4 (6) 1/4 (6) 5/8 (16) 3/16 1 5/16 1-5/16 1-5/32 15/16 (24) (33) (33) (29) 11/32 (9) 1/4 (6) 9/16 (14) 1 (25) 1 (25) TYPE A TYPE B TYPE E 5/8 (16) 29/32 50°...
  • Page 4 C554A CADMIUM SULFIDE FLAME DETECTOR Mounting Oil Line Mounting If desired, mount the C554A on the oil line using the oil line Direct Replacement adapter bracket and the mounting bracket that give the C554A the best view of the flame or use the mounting ³...

  • Page 5: Operation

    Wiring Disconnect power supply before beginning wiring to prevent electrical shock or equipment damage. All wiring must comply with local electrical codes and ordinances. See Fig. 6 for a typical C554A hookup to the oil burner primary control. 60-2148—05...

  • Page 6: Service And Replacement

    Resistance should be greater than 20,000 ohms. If the C554A is damaged, replace the plug-in part of the cell. Order part no. 130367 Replacement Cad Cell.
  • Page 7 C554A CADMIUM SULFIDE FLAME DETECTOR 60-2148—05...
  • Page 8 Resideo Technologies, Inc. 1985 Douglas Drive North, Golden Valley, MN 55422 1-800-468-1502 60-2148—05 M.S. Rev. 07-21 | Printed in United States www.resideo.com © 2021 Resideo Technologies, Inc. All rights reserved. This product is manufactured by Resideo Technologies, Inc. and its affiliates.
