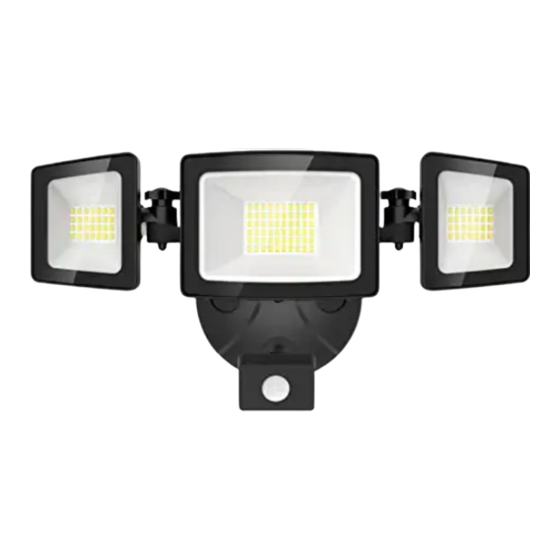

- Page 1 PIR LED WALL LIGHTS WITH MOTION SENSOR Quick Start Guide MODEL: BDB55G-3 BDI45G-2 BDC80G-3 BDD100G-3...
- Page 2 COMPONENTS AND STRUCTURE BDB55G-3 BDI45G-2 BDC80G-3 BDD100G-3 1. Cover 2. LED Light Source 3. Lamp Bracket 4. Sensor Head...
-
Page 3: Parts List
PARTS LIST Machine Screw Expansion Rubber Plug EVA Gasket Mounting Bracket QTY: 3 QTY: 3 QTY: 1 QTY: 1 Wire Nuts Long Machine Screw Silicone Gasket Machine Screw QTY: 3 QTY: 1 QTY: 1 QTY: 2 Machine Screw QTY: 2... -
Page 4: Specifications
SPECIFICATIONS LED WALL LAMP Model BDB55G-3 BDI45G-2 BDC80G-3 BDD100G-3 0.38A 0.83A Input Current 0.5A 0.58A Rated Power 100W Luminous Flux 5500lm 4000lm 6200lm 9000lm Input Voltage 100-120V～60Hz 6500K ≥80 Power Factor ≥0.9 lifetime 30000hours L @25° Beam Angle 120° -20-40°C/-4°F-104°F... - Page 5 SPECIFICATIONS DIMENSIONS Model BDC80G-3 BDD100G-3 365x195x118 mm / 455x182x120 mm / Dimensions（LxHxW） 14.4x7.67x4.64in 17.9x7.16x4.72 in 1.28kg / 2.82lb 1.53kg / 3.37lb Weight 0.044m² / 0.47ft² 0.049m² / 0.52ft² Max Projected Area 115m² / 1237ft² 160m² / 1722ft² Max. Lighting Coverage Note: The testing standard of the product's luminous flux:Place the three/two lights...
- Page 6 Operation Instructions 1. SENS adjustable: It can be adjusted according to using location; low sensitivity with 5m for detection distance; high sensitivity with 10m, it fits for large room. 2. Can identify day and night: The consumer can adjust work ambient light.
- Page 7 PREPARATION NOTE: Before beginning assembly of product,make sure all parts are present.Compare parts with parts list.If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time:30-60 minutes. Recommended to be installed on the ground above 2.5m (8.2 ft) and no higher than 5 m (16.4 ft).
- Page 8 PREPARATION RISK OF SHOCK: BEFORE BEGINNING INSTALLATION,TURN OFF ELECTRICITY AT THE CIRCUIT BREAKER BOX OR THE MAIN FUSE BOX. NOTE: BE SURE TO USE WIRE NUTS/CONNECTORS RATED FOR THE CORRECT GAUGE AND NUMBER OF WIRES USED. MAKE SURE THERE ARE NO EXPOSED WIRE BUNDLES OUTSIDE THE WIRE NUT/CONNECTOR (IF APPLICABLE).
-
Page 9: Installation Steps
INSTALLATION STEPS FOR WET LOCATION, MAKE SURE FILL FULL THE GAP OF EVA GASKET AND MOUNTING SURFACE WITH SEALING COMPOUND OR SILICON GLUE. WHITE WHITE NEUTRAL LINE NEUTRAL LINE FROM HOUSE FROM FIXTURE BLACK BLACK LIVE WIRE LIVE WIRE FROM HOUSE FROM FIXTURE GREED GREED... - Page 10 Note： The raised part (RA) of the metal plate must be engaged with the recessed part (RE) of the base, otherwise it cannot be installed.
-
Page 11: Troubleshooting
Troubleshooting Malfunction Cause Remedy LED senses a 1. The light is not energized 1. Check power-on status movement, the light 2. Other surrounding light 2. Turn off the nearby lights or does not light up sources make the light sensor head to other directions misjudge it as daytime 3. - Page 12 Manufacturer / Hersteller: Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si Address: qian wan yi lu 1 hao A dong 201 shi qian hai shen gang he zuo qu Shen Zhen, Guang Dong, 518000, CN support@onforuled.com www.onforuleds.com EU REP MDH LIGHTING LTD Suite 302, 292 Strovolos Avenue, 2048 Strovolos Nicosia, Cyprus | support@onforuled.com UK REP MDH LIGHTING LTD 69 Aberdeen Avenue, Cambridge CB2 8DL, United Kingdom | support@onforuled.com Made in China...
