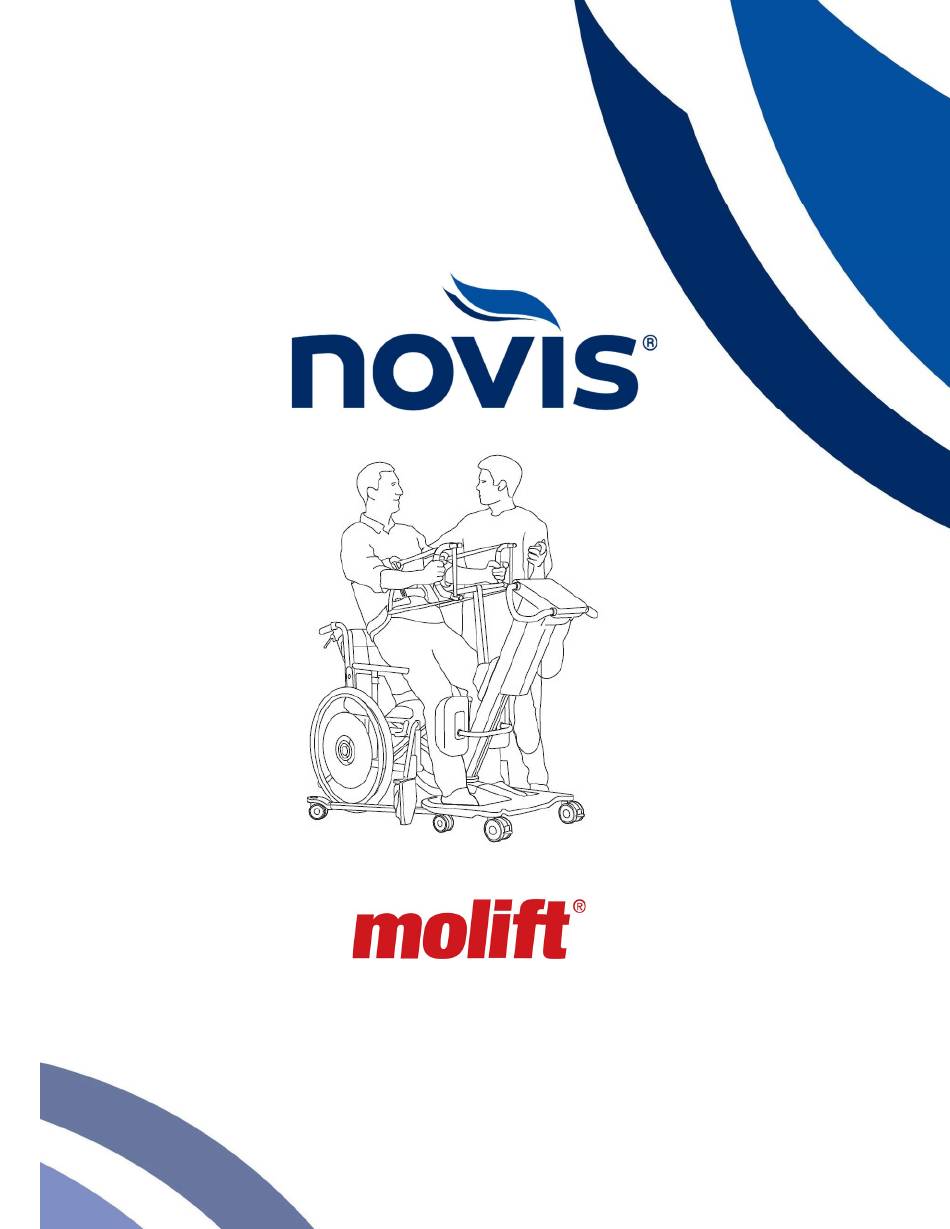

- Page 1 Lifter & Sling Use Guide MARCH 2022...
- Page 2 Novis Healthcare novis.com.au | 1300 738 885...
-
Page 3: Table Of Contents
Contents ASSESSING FOR MOVEMENT FUNCTIONAL INDEPENDENCE MEASURE (FIM) REQUIREMENTS FOR PATIENT HANDLING EQUIPMENT RAISER PRO ESCRIPTION OMPONENTS ECOMMENDED CCESSORIES QUICKRAISER 205 ESCRIPTION OMPONENTS Suspension type – Sling attachment ECOMMENDED QUICKRAISER 2 ESCRIPTION OMPONENTS Suspension type – Sling attachment ECOMMENDED SMART 150 ESCRIPTION OMPONENTS ECOMMENDED... - Page 4 SAGE Sling Application Lifting/Transfer from Sitting Sling Safety and Checkpoints RGoSling Amputee Lowback RgoSling Amputee Highback Sling Removal RGOSLING COMFORT SLING ESCRIPTION ECOMMENDED SAGE Sling Application Lifting/Transfer Sling Safety and Checkpoints Sling Removal Novis Healthcare novis.com.au | 1300 738 885...
- Page 5 AMBULATING SLING ESCRIPTION ECOMMENDED CCESSORY ROIN TRAP ECOMMENDED SAGE Sling Application Transfer/Mobilisation Sling Safety and Checkpoints Sling Removal REPOSITIONING SLING ESCRIPTION OMPONENTS Sling Positioning Lateral transfer or repositioning in bed Turning in Bed Sling Safety and Checkpoints STRETCHER SLING ESCRIPTION ECOMMENDED SAGE Sling Application...
-
Page 6: Assessing For Movement
The FIM is used by healthcare practitioners to assess and grade the functional status of a person based on the level of assistance he or she requires Novis Healthcare novis.com.au | 1300 738 885... -
Page 7: Requirements For Patient Handling Equipment
Requirements for Patient Handling Equipment LATERAL INDEPENDENT STAND AID ACTIVE LIFTER PASSIVE LIFTER TRANSFER No assistance, Assists a person who Assists transfer of a assistance with Assists a person who Assists a person who only requires minimal person who needs to assistive technology requires moderate to requires maximum to... -
Page 8: Raiser Pro

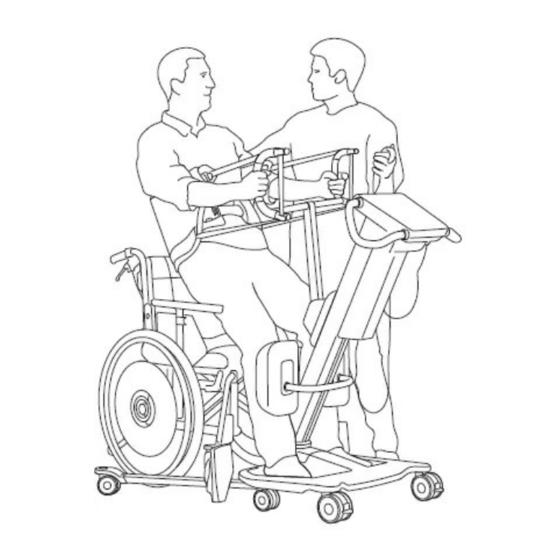

Raiser Pro Description Molift Raiser Pro is a sit-to-stand transfer aid used indoors on flat surfaces for shorter transfer from one sitting position to another sitting position. Transfer between wheelchair and bed/toilet or chair. Can also be used for repositioning farther back in the wheelchair. Users must be active, able to grip and pull up their own body weight. -
Page 9: Accessories
1. Lock both wheels by pressing down the brake on one side. Both wheels lock regardless of which side assistant steps on. Place one foot on the edge of the base plate. Choose a grip on the handle that is comfortable for both assistant and the user. -
Page 10: Quickraiser 205
The shape of the lifter and geometry of the lifting movement imitates the natural pattern of movement of a person. Components Suspension type – Sling attachment See sling instructions “RgoSling Active” Novis Healthcare novis.com.au | 1300 738 885... -
Page 11: Recommended Use
Recommended Use 1. Fit the sling to the user and secure sling belt to hold sling 2. If required: Extend the width of the wheel base prior to lifting using the button for base width adjustment on the Hand control. 3. -
Page 12: Quickraiser 2
The lifter is only intended for lift and transfer to and from a sitting position. Molift Quick Raiser 2 has a lifting capacity of 200 kg Safe Working Load (SWL) Components Novis Healthcare novis.com.au | 1300 738 885... -
Page 13: Suspension Type - Sling Attachment
Suspension type – Sling attachment See sling instructions “RgoSling Active” Recommended Use Fit the sling to the user and secure sling belt to hold sling If required: Extend the width of the wheel-base prior to lifting using the button for base width adjustment on the Hand control. -
Page 14: Smart 150
The lifter is made out of light materials, it has castors and a battery and a lifting capacity of 150 kg . It is therefore ideal for mobile care units, such as home care personnel who has a need for lifting capabilities without fixed or stationary lifting devices present in every home. Components Novis Healthcare novis.com.au | 1300 738 885... -
Page 15: Recommended Use
Recommended Use Assembly 1) The battery must not be in the battery holder during assembly 2) Remove the transport elastic band 3) Engage the brake and use the left foot pedal to spread the legs to working position (maximum width) 4) Lift up the lifting column and slide it into the bracket on the chassis. -
Page 16: Disassembly
5) Fasten the hand control to the driving handle 6) Press the legs together and secure legs and lifting column/-arm with the transport elastic. 7) Put the lifter into the bag, case or storage. Novis Healthcare novis.com.au | 1300 738 885... -
Page 17: Mover Range
Mover Range Description Mover 180 Molift Mover 180 is a mobile lifter intended for lifting and transferring a person from/to bed, floor, chair, wheelchair or toilet with a sling. The lifter is made of light-weight materials, has castors and electric actuator and is powered by a battery. It has electrically adjustable legs and a lifting capacity of 182 kg. -
Page 18: Components
Components Handset Safety Features Novis Healthcare novis.com.au | 1300 738 885... - Page 19 Emergency stop The emergency stop shuts off the power when pushed in. Turn clockwise to reset (OK to operate when the green ring is visible). Electrical emergency lowering Push and hold button for electrical emergency lowering to lower lifting arm. The electrical emergency lowering function does not work when the emergency stop is activated.
-
Page 20: Partner 255
Push the Allen key through the hole on the top of the column and turn until the patient is lowered down. Remember to remove the Allen key from the hole immediately after lowering. Novis Healthcare novis.com.au | 1300 738 885... -
Page 21: Battery Charging
Battery Charging Battery capacity The LED on the hand control and on the battery, holder will illuminate when the battery power falls below a certain level, indicating that charging is needed. A sound signal will also be heard. If the battery goes flat in the middle of a lifting manoeuvre, there will always be sufficient power to... -
Page 22: Molift Slings
Molift Slings Rgo Sling Range Novis Healthcare novis.com.au | 1300 738 885... -
Page 23: Sling Care Instructions
Sling Care Instructions Read the care instructions on the product. 6. Water washable slings can be washed at temperatures ranging from 60 to 85º C degrees. Washing at higher temperatures wears out the material faster. 1. Tumble drying, max 45º C. Can be autoclaved at 85 degrees for 30 minutes 2. -
Page 24: Rgosling Active
Measurements in table should be used as a reference. Correct size depends on the user’s weight, function and body shape. Measure user’s waist size when they are in a sitting position. Choose the sling with the most correct measurements to make sure it fits. Novis Healthcare novis.com.au | 1300 738 885... -
Page 25: Recommended Usage
Recommended Usage Sling Application Ask the user to lean forward, support them, if necessary, with one hand. Slide the sling down behind the user’s back. Place the sling approximately at waist height on the back. Place the belt around the waist of the user, connect the buckle and tighten the belt. -
Page 26: Removing The Sling
3. Stand next to the chair and ask the user to lean forward. Support the user with one hand if necessary. Pull the sling away with one hand, and ask the user to lean back in the chair Novis Healthcare novis.com.au | 1300 738 885... -
Page 27: Rgosling Standup
RgoSling StandUp Description Etac Molift RgoSling StandUp (Standard) Molift RgoSling StandUp is a sit to stand sling designed for active movements in combination with the sit to stand lifter Molift Quick Raiser. The user can move from one sitting to another sitting position, the product even works for the transfer to a toilet. -
Page 28: Sling Size Guidelines
This is easier if the patient can lean forward. The support should hang loosely behind his back. Tighten the support so much that it acts as a support when lifting. It must not be tightened so that it takes up the whole load. Novis Healthcare novis.com.au | 1300 738 885... -
Page 29: Transfer
Place RgoSling Standup around the waist of the user and tighten the belt. Place the lifter in position for fastening the sling to the suspension Fasten the sling to the suspension on the U-shaped suspension by pulling the rope down into connection point. -
Page 30: Sling Adjustments And Checkpoints
If you pull the sling up hard, the user may fall forwards and be injured. Always hold one hand around the user. Novis Healthcare novis.com.au | 1300 738 885... -
Page 31: Rgosling Padded & Net
RgoSling Padded & Net RgoSling Padded Medium & High Back RgoSling Net Medium & High Back Recommended Usage Sling Application - Sitting 1. Padded slings can be folded as shown with the leg sections folded on the back section. 3. Hold the sling with one hand and use the other hand to support the user. Slide the folded sling down behind the user’s back until it reaches the seat. -
Page 32: Listening/Transfer
A. Position the user with the help of the steering handle B. Push gently on the users knees C. Tilt the seat backwards Novis Healthcare novis.com.au | 1300 738 885... -
Page 33: Sling Safety And Checkpoints
Sling Safety and Checkpoints ArgoSling MediumBack 6. Make sure suspension is away from the users face 7. Cross suspension loops 8. Leg support placed correctly 9. Backrest placed in correct height RgoSling HighBack 10. Make sure suspension is away from the users face 11. -
Page 34: Removing The Sling - Sitting
Then turn the user over on the opposite side and pull the sling away. Be careful when repositioning the user over to the other side. Make sure he/she does not flip over and rolls out of Novis Healthcare novis.com.au | 1300 738 885... -
Page 35: Rgosling Amputee
RgoSling Amputee Etac Molift RgoSling Toilet LowBack has a low back, split leg support with a wide opening. The sling can be used for lifting to and from a sitting position. Etac Molift RgoSling Toilet HighBack has a high back, split leg support with a medium opening. The sling has head support. -
Page 36: Lifting/Transfer From Sitting
8. When transferring the user into sitting, the following techniques can be used when lowering the user as far back into the seat as possible: A. Position the user with the help of the steering handle B. Push gently on the users knees C. Tilt the seat backwards Novis Healthcare novis.com.au | 1300 738 885... -
Page 37: Sling Safety And Checkpoints
Sling Safety and Checkpoints RGoSling Amputee Lowback 1. Make sure suspension is away from the users face 2. Waist belt locked and tightened 3. Cross suspension loops 4. Leg support placed correctly 5. Backrest placed in correct height RgoSling Amputee Highback 6. -
Page 38: Sling Removal
If you pull the sling up hard, the user may fall forwards and be injured. Always hold one hand around the user. Novis Healthcare novis.com.au | 1300 738 885... -
Page 39: Rgosling Comfort Sling
RgoSling Comfort Sling Description Is an unpadded sling that shapes itself to the body. The sling is intended to remain beneath the user after the lift and the move have been completed. It is made from a polyester mesh material that allows body moisture and heat to pass through. -
Page 40: Lifting/Transfer
A. Position the user with the help of the steering handle B. Push gently on the users knees C. Tilt the seat backwards Novis Healthcare novis.com.au | 1300 738 885... -
Page 41: Sling Safety And Checkpoints
Sling Safety and Checkpoints 1. Make sure suspension is away from the users face 2. Make sure head support is not to low, sling should be placed higher than users head. 3. Make sure sling is placed well under thighs. 4. -
Page 42: Ambulating Sling
2. Fix the waist belt and tighten. The belt can be retightened after the patient is raised up. 3. The lifting Straps shall be placed in front of the arms Novis Healthcare novis.com.au | 1300 738 885... -
Page 43: Transfer/Mobilisation
4. Put the groin strap under the thigh. 5. Connect the buckles. The groin strap can be retightened after the patient is raised up. Transfer/Mobilisation 6. The suspension must always be positioned across the user 7. Suspend the sling in the suspension’s hooks. 8. -
Page 44: Sling Safety And Checkpoints
3) Use one hand to support and lean the user forward while removing the sling from the back with the other hand. Make sure not to pull to hard or fast, this may cause the user to fall out of the chair. Novis Healthcare novis.com.au | 1300 738 885... -
Page 45: Repositioning Sling
Repositioning Sling Description The Molift Repositioning Sheet is designed as an in-bed system for maximum patient comfort. Since the sheet is always positioned in the bed, a multitude of care situations are made faster and easier for both carer and patient. Bariatric care in particular places distinct demands on patient comfort and dignity that are supported by the Repositioning Sheet. -
Page 46: Lateral Transfer Or Repositioning In Bed
To reposition patient up in bed, use the same hook technique. Turning in Bed 1) Lift the patient and offset to one side if possible, as shown. Lower and hook off the straps from the bedside of the sling Novis Healthcare novis.com.au | 1300 738 885... -
Page 47: Sling Safety And Checkpoints
2) Hook all four straps to the suspension. Prepare the patient for the turning, put the pillow into the place for the new position. Prepare leg and arm for the turning. Raise the suspension and make sure patient is turning gently to side. Unhook head strap #1 and foot and strap #4 from sling bar, and tuck straps under mattress in to prevent staff and user tripping over. -
Page 48: Stretcher Sling
Make sure he/she does not flip over and rolls out of bed. If User cannot be rolled: If the user cannot be turned over sideways, the application of the sling can be facilitated with Etac Slingon. Novis Healthcare novis.com.au | 1300 738 885... -
Page 49: Lifting/Transfer
Lifting/Transfer The suspension must always be positioned along the user with the smallest part above the users head. 2) Suspend the sling in the suspension’s hooks. 3) Stretch the sling straps without lifting the user. Check that the sling is correctly fitted around the user and that the strap loops are correctly fitted to the suspension hooks. -
Page 50: Scoop Stretcher
If the lock is hard to open, push the stretcher parts down on both sides in a way the makes the stretcher even and unloads the locking mechanism. It may help to turn the patient over on one side as well. Novis Healthcare novis.com.au | 1300 738 885... -
Page 51: Closing The Stretcher Locks
Closing the Stretcher Locks Push the stretcher part together until the lock clicks in place. If the lock is hard to close, push the stretcher parts down on both sides in a way the makes the stretcher even. It may help to turn the patient over on one side as well. -
Page 52: Applying The Stretcher In A Bed
4. Tilt the patient slightly on the side and push carefully one part of the stretcher underneath the patient. 5. Tilt the patient slightly on the opposite side, and push carefully the other part of the stretcher underneath the patient. 6. Secure the lock in the head section. Novis Healthcare novis.com.au | 1300 738 885... -
Page 53: Lifting From Floor With Molift Partner 205/230/255
Lifting from floor with Molift Partner 205/230/255 1. Adjust the legs of the lifter to maximum width. 2. Place the lifter in the head section of the stretcher, as close as possible. 3. Attach the straps in the head section of the stretcher in a diagonal pattern on the 4-point suspension. -
Page 54: Cleaning Instructions
11. Check that the locks works properly and secure, with no loose parts. 12. Check that there is no water trapped inside the stretcher. 13. Max user weight (SWL) is 300 kg for Molift Stretcher Novis Healthcare novis.com.au | 1300 738 885... -
Page 55: Evosling Flexistrap
EvoSling FlexiStrap Description Molift FlexiStrap is a lifting band designed for different uses such as lifting up and holding a body part and providing support to the user. It may be used in situations such as treatment or examination of ulcers or foot care. Molift EvoSling Flexistrap is available in two sizes, Standard and Wide, in padded polyester. -
Page 56: Sling Application
2. Start lifting until the lifting straps are stretched without lifting the users body part. Ensure that both loops of the sling are securely fastened. 3. Lift the users body part Novis Healthcare novis.com.au | 1300 738 885... -
Page 57: Removing Limb Sling
Removing Limb Sling 1. Lower the users body part. Release the lifting band from the suspension. 2. Remove the sling by folding the lifting band under the sling itself and and pull out 3. Remove the sling gently to avoid injuring the user. - Page 58 Notes: __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ Novis Healthcare novis.com.au | 1300 738 885...
- Page 59 __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ Lifter and Sling Use Guide 2023...
- Page 60 Novis Healthcare novis.com.au | 1300 738 885...
