Summary of Contents for Novis ProCair Prime

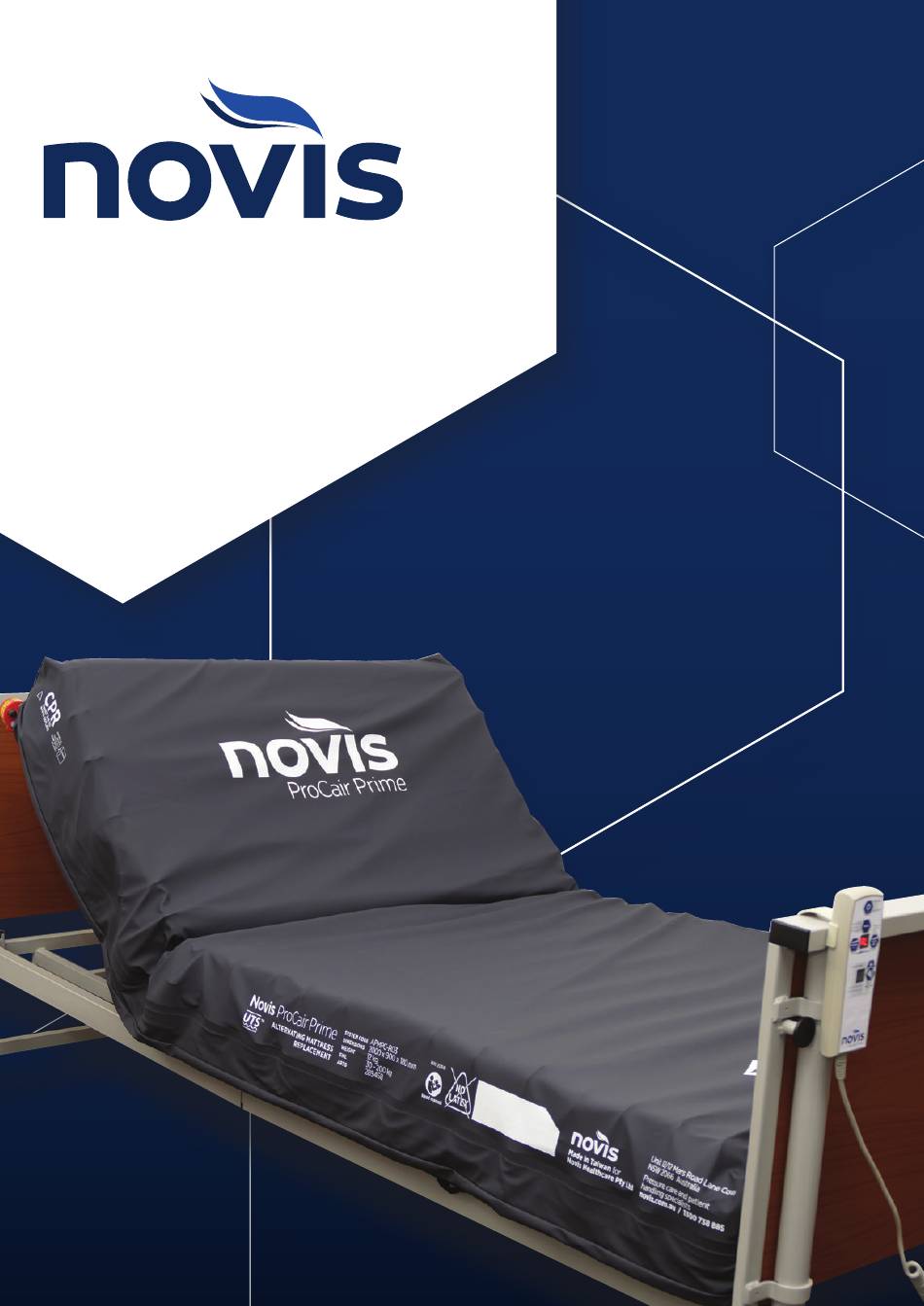

- Page 1 ProCair Prime U S E R G U I D E...
-
Page 2: Important Notice
If you have any questions, please contact Type BF Applied Part Novis Healthcare on 1300 738 885. Alternating Current Novis Healthcare has a policy of continuous product Manufacturer improvement and reserves the right to amend Manufacturing Date specifications presented in this guide. Information Serial Number correct at time of production (May2018) . -
Page 3: Table Of Contents
Operation – Control Handset Operation – Modes of Operation Operation – Quick Twist CPR Operation – Transport Mode Operation – Deflation / Storage Care and Cleaning 18 - 19 Troubleshooting Technical Specifications 21 - 25 Warranty Statement ProCair Prime User Guide... -

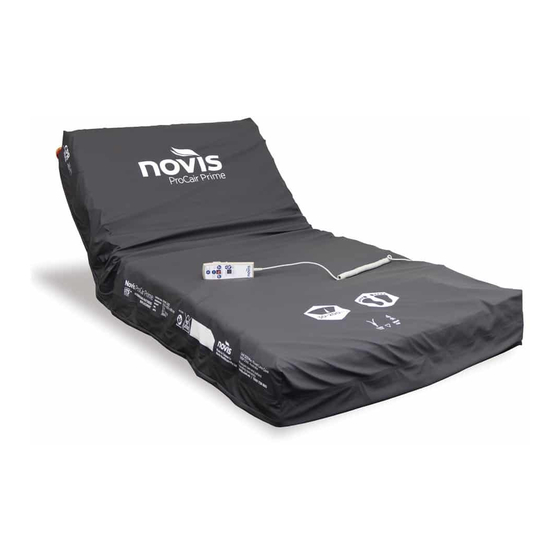

Page 4: System Overview
(UTS) features an integrated control unit within the mattress, cyclically inflating and deflating the air cells The ProCair Prime can be easily operated by the in an alternating pattern, to help prevent arterial and caregiver as well as the patient (subject to advice by a venous capillary occlusion in the patient’s surface... - Page 5 Mattress replacement with integrated control of storage and/or transport. unit, control handset, power cord and CPR release ⬡ User Guide ⬡ Carry bag HEAD END LEFT RIGHT FOOT END RIGHT HEAD END FOOT END LEFT MATTRESS BASE PRESS STUDS X4 ProCair Prime User Guide...
-
Page 6: Intended Use
User Guide. Refer to our Warranty ⬡ Instable spinal cord injury Statement for more details. ⬡ Cervical traction Intended Care Setting Intended care settings for the ProCair Prime mattress replacement systems are: ⬡ Home healthcare ⬡ Professional healthcare Intended Users ⬡... -
Page 7: Safety Precautions
Only the control unit and mattress combination ensure the power is switched off and disconnect as indicated by Novis Healthcare should be the power cord from the control unit. Novis used, otherwise the correct function of the Healthcare recommends using the cord product cannot be guaranteed. - Page 8 Ensure there is no moisture in or near the power heated surfaces. Should the power cord be found to inlet, control handset and power cord before be worn or damaged, contact Novis Healthcare for a reconnecting the power supply. replacement.
-
Page 9: System Preparation
Carefully unpack the system and inspect each item for any damage that may have occurred during transit and handling. Any damage or missing components should be reported to Novis Healthcare as soon as possible. Confirm there are no sharp objects in the immediate area which may risk damage to the mattress replacement. - Page 10 The Standby indicator on the handset will glow amber, confirming the control unit is connected to a power source. Ensure the power cord is not under strain; is free from obstruction; and is secured safely so as not to be a trip hazard. User Guide ProCair Prime...
- Page 11 This feature can be deactivated for manual pressure setting (see page 14 for details). Hybrid Mode The ProCair Prime is initially configured as a full dynamic mattress, with the patient in direct contact with the air cells for maximum therapeutic benefits.
- Page 12 Universal Therapy System™ Mattress Configuration Dynamic Mode The ProCair Prime is initially configured as a full dynamic mattress, the patient is placed in direct contact with the air cells for optimum pressure offloading during alternation, and the foam sheet is positioned in its storage compartment at the bottom of the mattress to provide bottoming out protection.
-
Page 13: Patient Set-Up
Secure sheets loosely enough to ensure they do other set is deflated. not interfere with cell alternation. You may need to unzip the cover to feel the cells Place the patient on to the ProCair Prime for inflation. mattress. With the patient lying supine, unzip one side... -
Page 14: Operation Control Handset
02 30mmHg an amber LED indicator above will illuminate. 03 40mmHg To unlock panel, long press for 3 seconds again. 04 50mmHg After 5 minutes of inactivity, the panel will re-lock 05 60mmHg automatically. User Guide ProCair Prime... -
Page 15: Operation - Modes Of Operation
Mode for patient safety. CPR IN THE CLOSED POSITION. TWIST IN EITHER DIRECTION TO OPEN During power failure/outage, the ProCair Prime To reinflate the system after the Quick Twist CPR Universal Therapy System will stop functioning valve has been released, turn the tab and align the and PF arlam code will be displayed on the arrows with the the ‘CLOSED’... -
Page 16: Operation - Transport Mode
Tuck hoses under an air cell. Air will remain in the system for up to 24 hours, depending on patient and environmental circumstances. TUCK HOSES UNDER AN AIR CELL User Guide ProCair Prime... -
Page 17: Operation - Deflation / Storage
It may be easier to turn the open carry bag upside down, and then wrap the bag around the rolled up mattress, turn over bag, then tuck in the mattress as you zip up the bag. ProCair Prime User Guide... -
Page 18: Care And Cleaning
This could result in damage to the equipment and may result in damage to the polyurethane coating, or negate the biocompatibility properties of the fabric. Cleaning and Infection Control It is recommended that the ProCair Prime system is cleaned every two weeks if in constant use. Top Cover Cleaning Control Unit /Handset Cleaning... - Page 19 Repeat with other zipper. The top cover can now be detached from the mattress base. To reattach the top cover to the mattress base, reattach the zippers, then run them along the sides of the mattress back towards the centre of the foot end. ProCair Prime User Guide...
-
Page 20: Troubleshooting
Uninterrupted Power Supply (UPS) unit between the system and the mains power supply to stabilise power. Restart system by power OFF and then powering ON again. If the problem persists, move patient to another mattress and contact Novis Healthcare. User Guide ProCair Prime... -
Page 21: Technical Specifications
AIR HUMIDITY Storage 30% to 90% non-condensing Operation 15° C to 35° C AMBIENT TEMPERATURE OPERATING Storage 5° C to 60° C ENVIRONMENT 700 hPa to 1060 hPa ATMOSPHERIC PRESSURE RANGE ALTITUDE -310 metres to 3000 metres ProCair Prime User Guide... - Page 22 (landfills) that are not appropriate according the ProCair Prime system or any of its components. legislation. Please be environmentally responsible and contact your local authority on available options to recycle this product at its end of life.
- Page 23 The ProCair Prime Universal Therapy System M31 control unit is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ProCair Prime Universal Therapy System M31 control unit can help prevent electromagnetic interference by maintaining a...
- Page 24 FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the ProCair Prime Universal Therapy System M31 control unit is used exceeds the applicable RF compliance level above, the ProCair Prime Universal Therapy System M31control unit should be observed to verify normal operation.
- Page 25 Test specifications for Enclosure Port Immunity to RF wireless communications equipment The ProCair Prime Universal Therapy System M31 control unit is intended for use in the electromagnetic environment (for home healthcare and professional healthcare) specified below. The customer or the user of the control unit should assure that it is used in such an environment.
-
Page 26: Warranty Statement
To Novis will undertake at its option, to repair or replace, obtain compensation, you will need to provided free of charge, each product or part thereof on the... - Page 27 Notes ProCair Prime User Guide...
- Page 28 Pressure care and patient handling specialists novis.com.au 1300 738 885...
