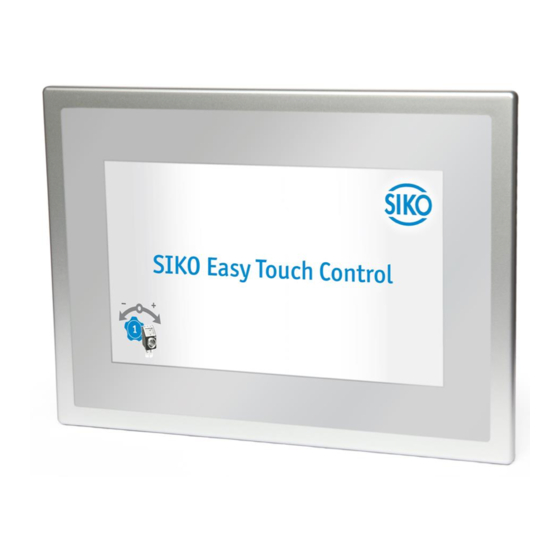

- Page 1 User manual Easy Touch Control ETC5000...
-
Page 2: Table Of Contents
Safety indication ........................... 3 System design ..........................3 General Information ........................3 ............................3 ............................4 ECIPE ....................4 PERATION PAGE NAVIGATION Login ............................. 5 Main functions / start screen ......................5 Set Positioning ..........................6 ........................6 ECIPE SELECTION ........................ -
Page 3: Safety Indication
Safety indication None of the inputs or outputs of ETC5000 and IO20 are intrinsically safe NOTICE inputs or outputs. Therefore, do not use the ETC5000 system for safety- relevant applications! System design ETC5000 (Easy Touch Control) is a complete system for the control of format adjustment. It is suitable for controlling up to 31 bus-compatible position indicators and actuators via SIKONETZ5. -
Page 4: Recipe
Recipe The setpoints associated with a product or a format are united in a recipe in ETC5000, i. e., every recipe represents a product or a format. Additionally, the name of the recipe as well as a job-related instruction can be saved besides the target values. For more detailed information refer to chapter 8.2: Recipe management –... -
Page 5: Login
Login A safety level protects nearly all functions of ETC5000. Therefore, the user should log in (1) before starting. The login area is situated on the start screen and in the settings menu item. The user can log in or off via this button. A window (2) opens where you select the user and log in with a password. -
Page 6: Set Positioning
Set Positioning This function constitutes the core function of ETC5000. The stored recipes can be selected under Set Positioning. Afterwards, positioning of all axes is monitored and started. Recipe selection Under Set Positioning you can obtain a previously defined recipe (definition of Recipes see chapter 8.2.1: Add recipe). -
Page 7: Recipe Positioning
Recipe positioning The relevant functions and details of the set recipe are all indicated on the order page. When leaving this page (also when switching over to the Details page), all drives will stop automatically. This is the only page where you can take over a selected recipe for positioning solely via IO20. The function must have been selected under the IO20 settings (see recipe number, accept recipe). -
Page 8: Axis Positioning
Axis Positioning The Axis positioning function can be used for positioning an individual axis. Via the "Axis Positioning" button on the start screen you get to an overview of all connected devices. First select an axis to be able to specify the target value of that axis. You need only tap on the device symbol of the desired axis for this purpose. -
Page 9: Settings
Settings A few settings must be made in order to enable ETC5000 to monitor and control positioning based on specified recipes. The setting menu is subdivided into 6 sub-menus: (1) The individual setpoints of a products or formats axes are united in a recipe. Recipes can be created, deleted or edited under the "Recipe Editing"... -
Page 10: Device Manager
Device manager 8.1.1 Bus-Scan The SIKONETZ5 bus is scanned before you actually get to the device manager. ETC5000 checks independently whether new devices were connected or whether all configured devices are still correctly connected. A Pop-up (1) message indicates any new devices found or discrepancies between the configuration file and the connected devices. -
Page 11: Device Manager
The device found during the bus scan is displayed on the left side and the one last configured on the right side. By actuating either button, the user can decide for every single device (5) found in the bus scanning procedure whether to take it over or maintain the old configuration (6). -
Page 12: Change The Parameters Of An Axis/Device
The device manager does not necessarily show the devices actually NOTICE connected, but the ones set by the user! Click on the button (device symbol) of the relevant axis for manual configuration of a new device. A pop-up (9) opens where you can select the device type via a drop-down menu (10). The device selected appears in the pop-up and is taken over via the "Save"... -
Page 13: Functions Of Io20
Before you can access the parameter page you should carry out alignment of the parameters stored in ETC5000 and in the connected devices. A pop-up opens in case of discrepancies, and the user must determine the valid value. The user is also informed by a pop-up if an error occurs during the processes of saving the parameters and transmission to the connected device. - Page 14 drives enable The drives enable function is an enable input of the connected drives. The drives cannot be started unless the setpoint (High/Low) is applied to this input. For this, the Start button on the recipe-positioning page is enabled or disabled depending on the status. The drives cannot be started via this input.
-
Page 15: Recipe Management - Editing Recipes
Recipe management – Editing recipes Management of recipes occurs in this area. Here you can create a recipe for a new format or product or edit existing recipes. A recipe contains four different pieces of information. The user selects the recipe at different places in the ETC5000 via the recipe name. For the internal management and the selection via the IO20, each recipe is automatically given a recipe number. -
Page 16: Edit Recipe
8.2.2 Edit recipe Select the desired recipe via the drop-down box (2.1) and access the editing interface of the individual recipes via the "Edit" button (2.2). In this menu you can adjust the recipe name (3) and define a job-related instruction (4). When entering a work instruction note that display errors may occur with instructions exceeding 70 characters. -
Page 17: Software Update
8.3.1 Software Update You can execute software update via the "SW Update" button (5). When you press the button, you are forwarded to the "Control Center". Connect to ETC5000 a USB mass memory with the new software (6). To return to the current software version without making any changes click on NOTICE "Run"... - Page 18 Please tap on the "Project" function (8). The programming window will open. Subsequently, check again that the USB stick with the software is correctly stuck in. In order to start the programming process, tap on the "Load" button (9), afterwards answer "Yes" (10) when you are asked "Do you want to load project from removable disk".
-
Page 19: User Accounts
User accounts User accounts are managed, deleted or added under this menu item. A safety level (SL) higher than 7 is required to be able to edit user accounts. There are five qualitatively different safety levels for ETC5000. Since the user name is logged with recording it makes sense to create a unique user account for every operator of ETC5000. -
Page 20: Security Level
Security level Five user accounts are predefined on ETC5000 with the following authorizations: SIKO This account is reserved for service technicians of the SIKO (*SL9) company SW Update This account is intended exclusively for software updates and (*SL8) should only be used for this purpose... -
Page 21: Log File
Log file ETC5000 records all relevant events and saves them with a time stamp and the currently logged-in user information in a log file (1). Under this item you can view all recorded events. Furthermore, you can determine whether the log file shall be exported to a USB stick when ETC5000 memory is nearly full (free memory <20 %) (2). -
Page 22: Commissioning Etc5000
A special program must be used for evaluating the log file exported to a USB stick. You can download the program at www.siko-global.com under the name "Historical Viewer". Commissioning ETC5000 1) Check that all system components (ETC5000 and SIKONETZ5 devices) are correctly mounted and connected and no device address has been assigned twice. -
Page 23: Data Backup And System Maintenance
10 Data backup and system maintenance 10.1 Prevent data loss – Data backup An important serious tip: The best insurance against data loss is and remains a regular backup of your data! Just make sure you understand what important data are dormant on your system! Data are the digital gold of the modern era and increasingly the foundation of value creation as well as a very relevant factor for the long-term success for companies of all sizes.
