CG0M19 Intermediate Pivot
3/4" Offset, Handed
Installation Instructions
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm. For more information go to
www.P65warnings.ca.gov.
IMPORTANT: It is responsibility of door
and frame manufacturers to check
hardware schedule and prepare doors
and frames. The following instructions
cover field prep.

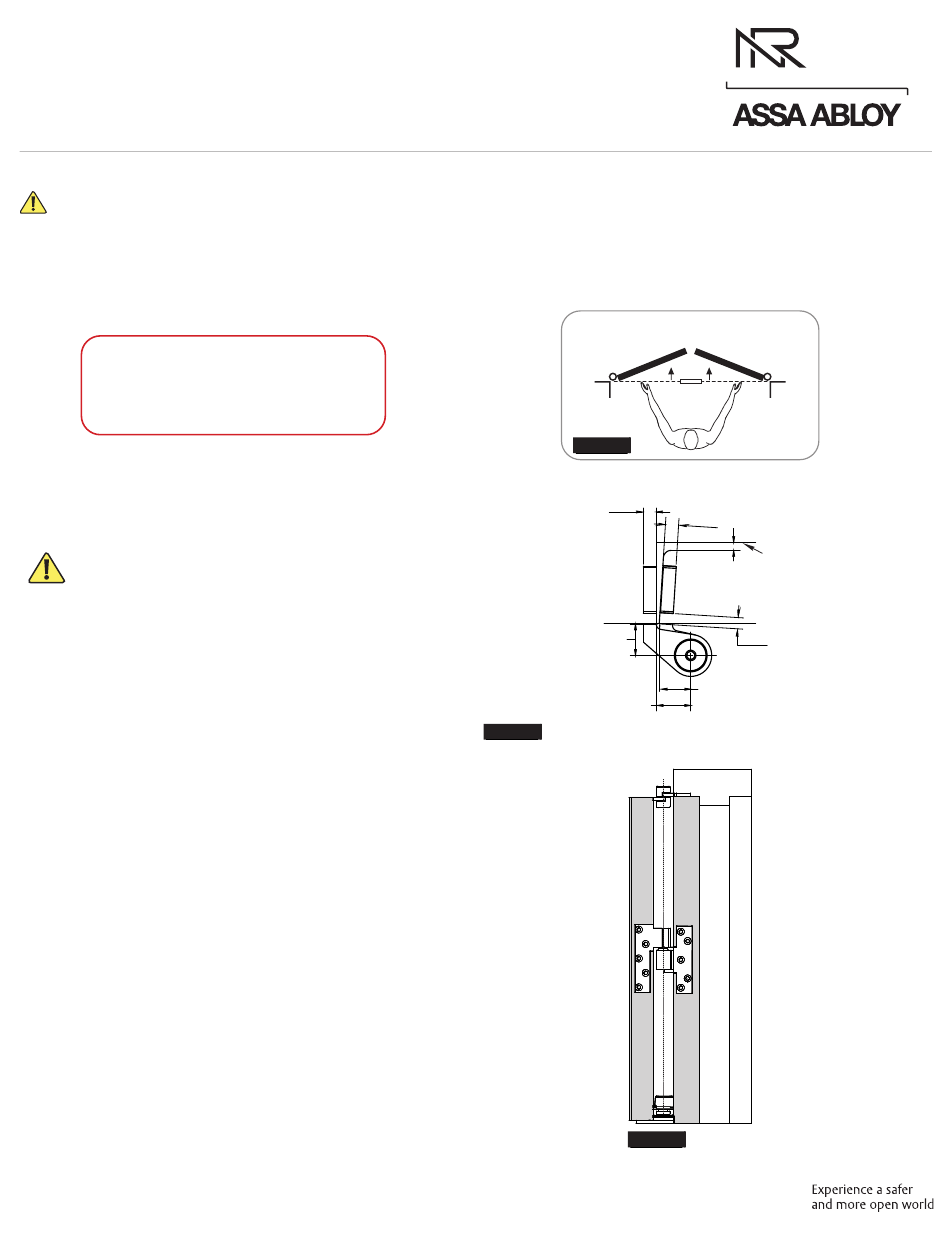

1. Install intermediate pivot.
1. Determine hand of door for proper placement of
intermediate pivot. (Figure 1)
NOTE:
Door should already be hung with top pivot and
bottom pivot or floor closer.
Doors 60" - 90" (152.4cm - 228.6cm) in height
should use one Intermediate pivot; each
additional 30" (76.2cm) warrants an additional
Intermediate pivot.
2. Locate pivot(s) so that it is vertically in alignment
with centerpoint of top pivot and bottom spindle
and mark pivot leaf locations on door and frame.
(Figure 2)
3. Mortise door and frame. (Figure 3) Refer to
template IP50051.
4. Using pivot leaf as a template mark and prepare
mounting holes on door and frame. (Figure 3)
5. Install jamb portion of pivot in frame using five
(5) 1/4-20 x 5/8" FHMS or #14 x 1-1/2" FHWS screws
provided.
6. Install door portion of pivot in door using five (5)
1/4-20 x 5/8" FHMS or #14 x 1-1/2" FHWS screws
provided.
Copyright © 2022, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in part
without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
IS-CG0M19 Rev 2 05/22
Approved 2022-05-16
Ce produit peut vous exposer au plomb qui, dans l'état de la
Californie, est reconnu pour causer le cancer, des anomalies
congénitales ou d'autres problèmes de reproduction. Pour plus
d'informations, visitez: www.P65warnings.ca.gov.
To Determine Your Hand of Door:
LH
Figure 1
5/16
(7.9)
Door
Jamb
3/4" (19) From Face of
Door t o C of Pivot Pin
L
13/16" (20.6) From Face of
C L
Jamb to of Pivot Pin
Figure 2
Figure 3
NORTON
RIXSON
RH
1/8" (3.2) Minimum From
5/16
Face of Door to Door Stop
(7.9)
Door Stop
R R i i g g h h t t H H a a n n d d D D o o o o r r
1/4
(6.8)
3/4" (19) From Door
Edge t o C of Pivot Pin
L
