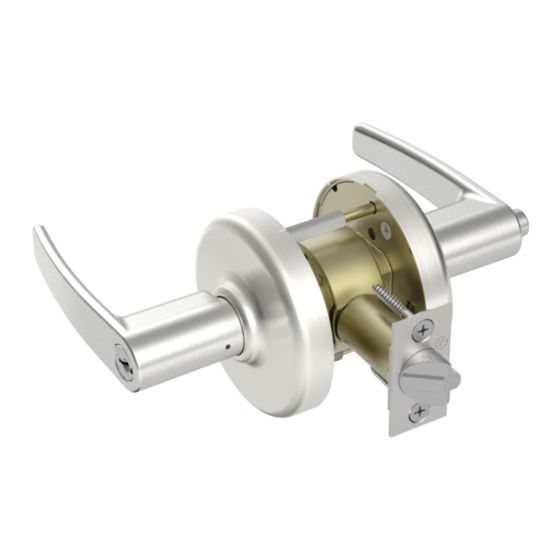

CLX3300 Cylindrical Lockset
Tools Required
1
• #2 Phillips screwdriver • Lever release tool (provided)
Package Contents
2
11
9
12
16
Door Preparation
3
1. Use template FM567 to mark the door (See Figure 1).
2. Drill the door according to the template.
3. Verify the dimensions (See Figure 2).
4. Install the strike (See Figure 3)
Template
Backset must
match latch
Desired
height
above
DOOR
floor
FRAME
Figure 1
IMPORTANT
• The accuracy of door preparation is critical for proper functioning and security of this lever handle lock. Misalignment can
cause premature wear and a lessening of security.
• Be sure to verify backset before marking and drilling door.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com •www.corbinrusswin.com
Copyright © 2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
10
2
8
7
15
13
3
14
1" (25mm)
hole
2-1/4"
(57mm)
Door bevel
1-1/8"
(29mm)
Figure 2
• 5/16" drill bit • 1/8" drill bit
6
4
5
5/16" (8mm) hole
2-3/4"
(70 mm)
2-1/8"
(54mm)
hole
5/32" (4mm)
IMPORTANT: Deadlocking latch must stop on
strike when door is closed.
• 5/32" drill bit • 2-1/8" Bore
Fig.
1 Inside lever handle
2 Rose/Scalp (2)
3 Screws - latch (2) #8-32 x 3/4"
4 Inside spring housing assembly
Screws - through-bolt (2) #12-24
5
x 1-1/2"
6 Lockbody assembly with rose liner
7 Outside spring housing assembly
8 Cylinder spacer
9 Cylinder
10 Outside lever handle
11 Key
12 Lever release tool
13 Latch
14 Screws - strike (2) #12-24 x 1"
15 Strike
2
16 Strike box (Optional)
1
Strike Box
Attaching Screws
#12 -24 x 1"
Strike
FM566 05/21
•1" Bore
Description
Strike Box
Attaching Screws
#8 -32 x 3/4"
Figure 3
