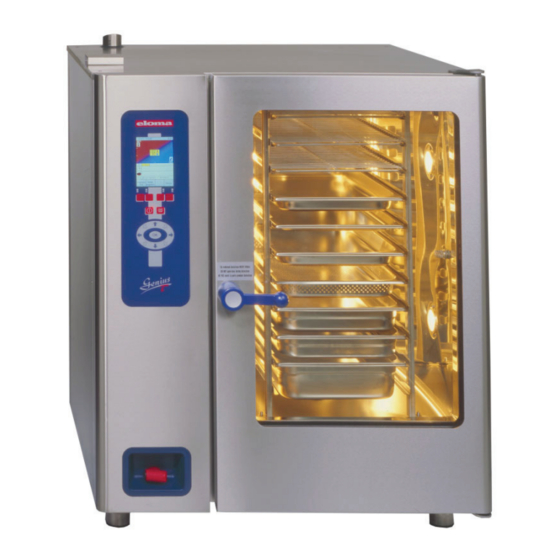

Eloma Genius T 6-11 Installation And Technical Connections
Combi steamer
Hide thumbs
Also See for Genius T 6-11:
- Brochure (16 pages) ,
- Operation manual (52 pages) ,
- Installation and operation manual (46 pages)
Related Manuals for Eloma Genius T 6-11
Summary of Contents for Eloma Genius T 6-11
- Page 1 Eloma Combi Steamer Multimax B, Genius T Electric units Genius T 6-11 Genius T 10-11 Genius T 20-11 Genius T 12-21 Genius T 20-21 Installation and Technical Connections...
- Page 3 Dear Customer, These installation instructions apply to Eloma’s Multimax B and Genius T electrical appliances. Please read the installation and operating instructions in full before starting up the appliance and make sure to pay particular attention to the safety information.
-
Page 4: Table Of Contents
Table of contents Safety information ......................... 4 Equipment set up .......................... 6 Installation instructions: ....................... 6 Hints for setting up ......................7 Removal of protecting film from the floor models ............... 7 Noise level ........................... 7 Exhaust air .......................... 7 Heat emission into the area .................... - Page 5 Pictograms/symbols used Warning Attention Danger! Immediate dangerous situation, Possibly dangerous situation, Possibly dangerous situation, that can endanger severe injury that possibly can endanger severe that can endanger minor injury. or death. or death. Corrosive substances! Caution: Risk of burns! Caution: Hot steam! Fire hazard! Danger! High voltage...
-
Page 6: Safety Information
Read the installation and operating instructions for the combi steamer through carefully before starting it up. Use for intended purpose Eloma combi steamers may only be used for preparing food in commercial kitchens. Every other usage is against definition and therefore dangerous. Method of operation The combi steamer enables you to prepare food goods using the best possible cooking chamber environment. - Page 7 Only authorised customer service personnel may open the side wall and carry out repairs and maintenance work. Risk of injury Installation Please refer to the installation instructions for precise information on how to install the appliance. Only authorised customer service personnel may install appliances, put them into operation and perform maintenance work on them.
-
Page 8: Equipment Set Up
The machine may only be set up in a location with adequate lighting for users. Recommended minimum clearance We recommend to install the ovens on top of original Eloma lower racks/supports or else Eloma warming cabinets WU 14. In case of installations on top of worktables, ensure sufficient stability and load capacity. -
Page 9: Hints For Setting Up
2052. Condensation hood (option only for units with connection 208 V) An optional condensation hood is available for Eloma combi steamers. The condensation hood is controlled fully automatically via the combi steamer. During the cooking process, steam is condensed as it passes over air-cooled plate condensers. -
Page 10: In Coming Water Supply Quality
Regular maintenance on every type of water treatment unit is vitally necessary. Damages to Eloma machines resulting from neglect of maintenance will void warranty claims. -
Page 11: Hard Water / Cold Water Connection
Hard water / cold water connection Cold water connection for cooling down the condensed water. Diagram of connection 1. Drain 2. Tap (raw) water 3. Softened water 4. Power supply 5. Connection kitchen control system 6. Energy optimising 7. Connection cleaner 8. -
Page 12: Water Pressure
Other cleaning products can possibly cause irreparable rust damages in the cooking chamber, as well as damage pumps and seals. Eloma GmbH cannot assume liability for any damages resulting from the use of alternative products. This will void the Eloma warranty. -
Page 13: Drain Connection
It is not permitted to taper the cross-section of the drain. Slope of at least 5% is necessary. Waste water temperature 80°C Fixed connection without trap Fixed connection with trap Drain fannel The Eloma GmbH bears no liability for any damages caused by a not proper installation. -
Page 14: Electrical Connection Potential Equalisation
Electrical connection Potential equalisation Follow the installation instructions and the information on the rating plate when connecting the unit. Comply with all local regulations and standards. Do not connect the unit to the mains if it has just been transported from a cold environment into a warm room. -
Page 15: Dimensioned Sketch Combi Steamer
Dimensioned sketch Combi Steamer Genius T 6-11 Housing dimensions and technical connections of models Multimax B und Genius T are identical Exhaust pipe Drain DN 50 EWk Softened water G 3/4A Tap (raw) water G 3/4A Power supply EZEo Energy optimising... - Page 16 Dimensioned sketch Combi Steamer Genius T 10-11 Housing dimensions and technical connections of models Multimax B und Genius T are identical Exhaust pipe Drain DN 50 EWk Softened water G 3/4A Tap (raw) water G 3/4A Power supply EZEo Energy optimising Potential equalisation Adjustment + / -20 Connection cleaner...
- Page 17 Dimensioned sketch Combi Steamer Genius T 12-21 Housing dimensions and technical connections of models Multimax B und Genius T are identical Exhaust pipe Drain DN 50 EWk Softened water G 3/4A Tap (raw) water G 3/4A Power supply EZEo Energy optimising Potential equalisation Adjustment + / -20 Connection cleaner...
- Page 18 Dimensioned sketch Combi Steamer Genius T 20-21 Housing dimensions and technical connections of models Multimax B und Genius T are identical Exhaust pipe Drain DN 50 EWk Softened water G 3/4A Tap (raw) water G 3/4A Power supply EZEo Energy optimising Potential equalisation Adjustment + / -20 Connection cleaner...
- Page 19 Dimensioned sketch Combi Steamer Genius T 6 + 6 Housing dimensions and technical connections of models / Multimax B und Genius T are identical Exhaust pipe Drain DN 50 EWk Softened water G 3/4A Tap (raw) water G 3/4A Power supply EZEo Energy optimising Potential equalisation Adjustment + / -20...
- Page 20 Dimensioned sketch Combi Steamer Genius T 6 + 10 Housing dimensions and technical connections of models Multimax B und Genius T are identical Exhaust pipe Drain DN 50 EWk Softened water G 3/4A Tap (raw) water G 3/4A Power supply EZEo Energy optimising Potential equalisation Adjustment + / -20...
- Page 21 Notes:...
- Page 22 Notes:...
- Page 24 Art. Nr.: ins_ EL L L 0 973017_mb_gt_ e_ 1v 6 _ en us...
