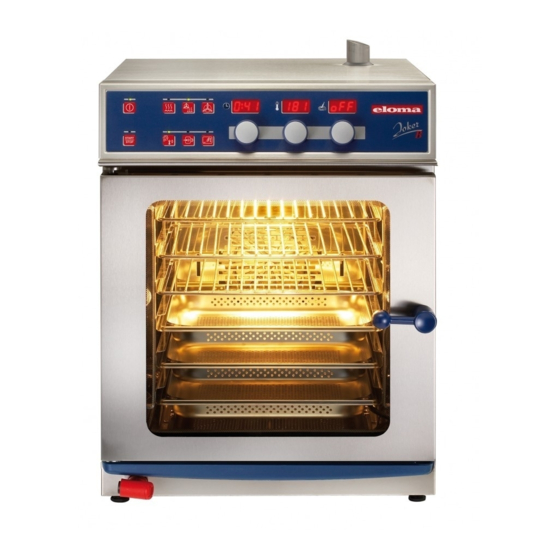

Eloma Joker B 6-23 Installation And Technical Connections

Installation and Technical Connections
Joker B, Joker C 6-23

Place of Installation:

Follow the local regulations and observe the instructions for
the installation of kitchen and shop equipment.
•
It is mandatory to set up the appliance in horizontal position. True up minor
unevenness with the vertically adjustable feet.
We recommend to install the ovens on top of original eloma lower
racks/supports or wall brackets. In case of installations on top of worktables,
ensure sufficient stability and load capacity, (weight of an empty oven approx.
100 kg).
The equipment must be secured against tilting and falling down.
Install no heat or steam sources (for instance deep fat fryers or cooking kettles)
underneath the oven.
Minimum clearance:
Distance to walls on right, left and back side at least 50 mm. In case of
installations near to materials that risk burning, observe the instructions of fire
protection.
Avoid to have any other heat and/or steam sources behind or next to the unit.
If this is impossible, ensure sufficient clearance or provide for appropriate
protection. No heat or humidity must penetrate through the cooling slots into the
unit.

Noise Level :

The emission value of the noise is less than 70 dB/A.

Exhaust air Lrg

A built-in cooling function cools down water and steam of condensation, which then
runs down the drain. It is therefore not imperative, however recommended, to install
the appliance under a ventilation hood.
If such a hood is installed, its design and power rates should comply with the
German VDI regulation 2052.
Latent heat emission
Sensible heat emission
Combi Steamer
Connected load 5,9 kW
3,82 MJ/h
2,55 MJ/h
1
Article No. 900646 10/05
Connected load 3,6 kW
2,33 MJ/h
1,56 MJ/h
