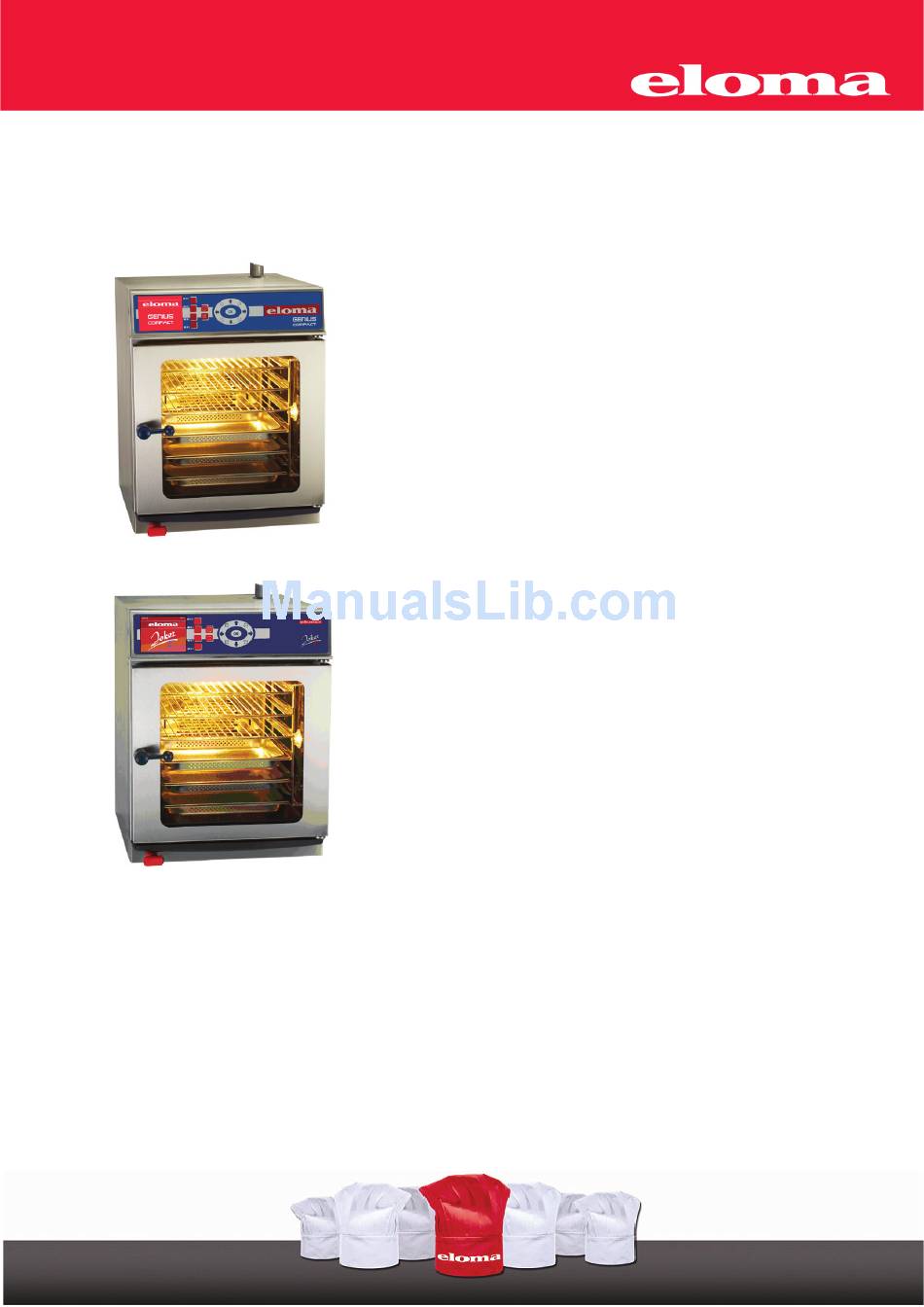

- Page 1 Combi-Steamer GENIUS Compact Combi-Steamer Joker T Operation Manual...
- Page 3 You have chosen an Eloma combi-steamer. Thank you for your confidence. This operation manual is for the combi steamer model Genius compact and Joker T. Please read the installation and operating instructions in full before starting up the appliance and make sure to pay particular attention to the safety information.
-
Page 4: Table Of Contents
Combi cooking ........... 28 Control panel and functional description ..7 Preheat – Cool Down Active Temp ....29 2.1 Control panel Joker T, Genius compact ..7 10. HACCP .............. 30 2.2 Operation with Joker Scout ....... 8 10.1 Serial Interface –... - Page 5 Pictograms/symbols used Warning Caution Danger! Indicates a situation presenting an Indicates a potentially dangerous Indicates a potentially dangerous immediate danger, which, if situation, which, if situation, which, if if not avoided, will result in not avoided, could result in not avoided, could result in minor or serious injury or death.
-
Page 6: Safety Information
Temperature settings range from 30 to 300°C and the chamber humidity levels from 0° to 100%. Many functions offer optimum utilisation for steaming, poaching, baking, roasting, grilling, stewing, blanching, thawing, preserving, regenerating and a lot more. The Genius compact, Joker T will certainly become your reliable partner. Extremely easy to operate, offering unlimited possibilities. Operation Keep this manual in a place where it can be accessed by all users of the appliance at any time. - Page 7 The door must not be opened whilst Autoclean is running (risk of chemical burns). Only use Eloma Multi-Clean special cleaning agents and Eloma Multi-Clean rinse agents. Eloma GmbH accepts no liability for damage caused by using non-Eloma cleaning agents or rinse agents; use of such agents will also invalidate any warranty claims.
- Page 8 Remove the sensor from the food before taking the batch out. Condensation hood (option) An optional condensation hood is available for Eloma combi steamers. The condensation hood is controlled fully automatically via the combi steamer. During the cooking process, steam is condensed as it passes over air-cooled plate condensers.
-
Page 9: Control Panel And Functional Description
Control panel and functional description Control panel Genius compact, Joker T Operation system ON/OFF key Scout Climatic monitor Sensor key Joker direction arrows Climatic cursor Info line Start/Stop key OK to confirm Menu selection... -
Page 10: Operation With Joker Scout
Press OK to confirm every input or setting. Manual operation As soon as the unit is connected to the mains, the Eloma standby screen appears. Touch master key to switch on, the start-up screen appears. The red part of the screen represents dry heat, the blue one Program moist heat. -
Page 11: Start-Up In Manual Operation
Start-up in manual operation Prior to start : Open water tap. Press key ON/OFF, a start-up screen appears. The appliance is ready for work. LED is lit. Eloma Standby-screen Start-up screen Program List Menu group Cooking process Special program ... -
Page 12: Manual Operation - Input Of One Step
After selection of a cooking procedure and OK, you must set – time – or core temperature. 1. Input time 2. Input core temperature 3.Input lines Menu Menu Menu back back back Save Save Save Next Next Next Step Step Step Preheat... -
Page 13: Manual Operation - Input Of Two Steps
Manual operation – Input of two steps ( Steptronic ® ) Example 1 step Input 190°C, 50%, Time 10 minutes step Input 220°C, 20%, Time 15 minutes Input 1 step Input 2 step Manual operation Menu Menu Manual back back Steam... -
Page 14: Manual Operation - Input Of Several Steps
Manual operation – Input of several steps ( Steptronic ® ) (Steptronic ® allows to combine several steps, also time and core temperature combined.) Input of the first cooking step as described in Sec. 4. To proceed to a second step, press touch key Next step and repeat input as described before. ... -
Page 15: Display Of Actual Values
Display of actual values ( Steptronic ®) While a program is running down, touch one of the direction arrows and the actual values for temperature and humidity are displayed for 5 seconds. Then the display returns to the desired set values. ... -
Page 16: Additional Functions
Additional functions Go to Additional functions to select further functions. Enter manually temperature/humidity and time or core temperature, confirm with OK. Go to “Additional“, using arrow and proceed as described. Manual input Additional functions Additional function active Manual Input Menu Menu... -
Page 17: Cooking Procedures
Cooking procedures For a shortcut to the temperature/moisture parameters necessary for the desired cooking procedure, you can use the screen "Selection cooking procedures". To select preset temperature/humidity parameters press cooking process. Once in the cooking process, press the Joker Scout arrow keys to select the desired cooking procedure. Once you selected and entered your choice, the interface for the cooking procedure definition opens. -
Page 18: Program Storage
Program Storage Program number Menu Program name Input field name back Confirm Program name / No. Input field number Symbol Favourite << Cursor to the left Save >> Cursor to the right Field : Delete characters to the left ... - Page 19 Select and edit a program name out of the name proposals Menu Menu Menu back back back Save Save Save Next A -> a A -> a Step a -> A a -> A Preheat Help Help Use Joker direction arrows to bring up the first letter, confirm with OK. ...
- Page 20 Select a program to be a Favourite Symbol Favourite Menu Menu back back Save Save A -> a A -> a a -> A a -> A Help Help We recommend to mark programs that are frequently used to be Favourites. It is then possible to create the list of favourites, facilitating a quick search.
-
Page 21: Delete A Program
Delete a Program Bring up the program from the program list and confirm with OK . Manual Manual Manual Input Input Input Menu- Delete Delete group program program Favourites Preheat Preheat Preheat Set the time or the core temperature to ”0” “ and press sensor key Delete program. ... -
Page 22: Select And Start A Program From The Program List
Select and start a Program from the Program List Touch sensor key Program List to bring up all saved programs, maximum 300. Display 1 step Manual Steam Change Step Select a program Next Step Manual Input Menu- group Favourites Program indication Preheat Menu... -
Page 23: Delayed Start In Program Operation
Delayed start in program operation The start of a program can be delayed for up to 24 hours. Select a program from any list and confirm with OK. Press sensor key Start time. Use the Joker Scout arrows to set the start time and start pressing key. -
Page 24: Menu Groups In Fully Automatic Operation
Menu groups in fully automatic operation Select and start a program via menu group With the sensor keys Program List, Favourites and Menu Group, you can open the display Menu Group. Use the arrow keys to select the desired menu group, the middle is selected with the OK key. ... -
Page 25: Special Programs
Special Programs Touch sensor key Special Program to bring up further special programs and functions. Regenerating Program Manual Menu Menu List Input back back Menu Autoclean Save Save group Cooking Next Next HACCP process Step Step Special Preheat Preheat Special program ... -
Page 26: Lt-Cooking (Low Temperature)
7.2. LT-Cooking (Low temperature) Menu Manual Menu back Input back Save Autoclean Save Next Next HACCP Step Step Preheat Preheat Special Touch sensor key Special program, use Joker arrow to select LT cooking and confirm with OK. The Climatic monitor indicates below the striped field the LT cooking range for temperature/humidity. -
Page 27: Cook & Hold
Cook & Hold Manual Menu Menu Input back back Autoclean Save Save Next Next HACCP Step Step Preheat Preheat Special Touch sensor key Special Program , use Joker arrow to select Cook & Hold and confirm with OK. ... -
Page 28: Delta-T- Cooking
Delta-T- Cooking Manual Menu Menu Input back back Autoclean Save Save Next HACCP Next Step Step Preheat Special Preheat Touch sensor key Special Program, use Scout arrow to select T-Cooking and confirm with OK. The Climatic monitor indicates the T-Cooking range for temperature/humidity. Standard setting for T-Cooking is 40°C and 40% humidity. -
Page 29: Baking
Baking Manual Menu Menu Input back back Autoclean Save Save Next Next HACCP Step Step Preheat Preheat Special Touch sensor key Special programs. Use the Scout arrow to select “Baking” and confirm with OK. With the Climatic Cursor the temperature/steam quantity can be set. ... -
Page 30: Combi Cooking
Combi cooking Combi cooking can be selected manually or while running a program. Different cooking program can be started at different times. The sensor key Combi Cooking is available: 1. during cooking 2. if you have pressed Preheating, after the Active Temp procedure. 3. -
Page 31: Preheat - Cool Down Active Temp
Preheat – Cool Down Active Temp For all cooking programs and for the special programs: Banquet, LT-Cooking, Cook&Hold, ∆T-Cooking, it is possible to add the function “Active Temp“. When selecting the function “Active temp“ the temperature in the oven cavity is brought to a pre-set nominal temperature. -
Page 32: Haccp
10. HACCP An annular memory can save up to 200 programs. All processing data is recorded continuously and automatically. Once a cooking program is terminated with “Start/Stop” or through automatic switch off at program end, its protocol is stored. The cleaning program Autoclean is also stored. 10.1 Serial Interface –... -
Page 33: Selection And Printing Of Recorded Cooking Processes
10.2 Selection and printing of recorded cooking processes The connecting cable shall only be plugged or unplugged if both, the steamer and the printer, are switched off, otherwise the control unit or the printer may be damaged The appliance must be switched on with no program in progress. Any exact HACCP recording presupposes the correct setting of the real time. -
Page 34: Special Programs
Special programs 11.1 Weekly program Use the function weekly program for stored programs that are supposed to be started at a certain day and time of the week. Manual Menu Menu Input back back Autoclean HACCP Special Help Touch sensor key Special Program, Special and confirm Week program with OK. -
Page 35: Start Sreen
11.2.2 Start Sreen You can select 5 different start-up displays. Menu Menu back back Help Help Select or deselect with "" by pressing OK. Screen Manual input , see Sec. 3., is not displayed. 10.2.3 Language Menu Menu back back Help... -
Page 36: Cleaning The Cooking Chamber
Cleaning the cooking chamber 12.1 Automatic self cleaning Autoclean Programm Info Menu Manual Menu Menu back Input back back Start Start Autoclean Time Time Program Program HACCP Info Info Special Help Help Prior to starting autoclean, make sure that enough cleaning products are available – visual control. ... -
Page 37: Delay Start Of Autoclean
12.2 Delay start of autoclean It is possible to have the cleaning started automatically within a period of up to 24 hours. Select autoclean on the screen “Special programs” and press sensor key Start Time! Start Time can be pre-programmed. Press Start/Stop. ... -
Page 38: Hints On Operational Safety
Other cleaning products can possibly cause irreparable rust damages in the cooking chamber, as well as damage pumps and seals. Eloma GmbH cannot assume liability for any damages resulting from the use of alternative products. This will void the Eloma warranty. -
Page 39: Communication Proconnect Combi Steamer
14. Communication ProConnect Combi steamer 14.1 Start up communication ProConnect Combi steamer Genius compact, Joker T Use the appropriate cable to establish a communicating connection between PC and combi steamer, “Point-to-Point” connection RS 232. Plug the connecting cable to external SubD9 port in the hose shower tulip and connect the other end to the PC. -
Page 40: Error
15. Error 15.1 Error display Press sensor key Help to get valuable information regarding failures. The displayed symbols explain possible failure causes and offer remedies. If your Joker does not work correctly, take the following list and try to help yourself. If you do not succeed, switch off and disconnect the unit from the mains. -
Page 41: Error Message
15.2 Error Message Error Description Reaction, error remedy Probe cooking chamber 1 Operation stop! no signal Customer service call! Meat probe Warning! no signal sensor 1 Customer service call! Meat probe operation is possible!. Meat probe Warning! no signal sensor 2 Customer service call! Meat probe operation is possible! Meat probe... -
Page 42: Trouble Shooting
Formation of rust in the follow the installation instructions cooking chamber Wrong cleaning agent Use recommended cleaner agents Incorrect cleaning agent Use Eloma cleaning agents. Door sealing exhausted, not enough contact pressure to the Readjust the door latch Steam escapes from door oven... -
Page 43: Cleaning And Maintenance
16. Cleaning and maintenance Regular cleaning of the combi steamer is of utmost importance. Only Eloma recommended cleaner agents may be used. Please observe the manufacturer's operating instructions. Caring for the door sealing A door sealing is subject to wear. - Page 45 Notes:...
- Page 46 Notes:...
- Page 48 Englisch Art. Nr.: bed_ EL0 501283_jtgc_1v 4 _en us...
