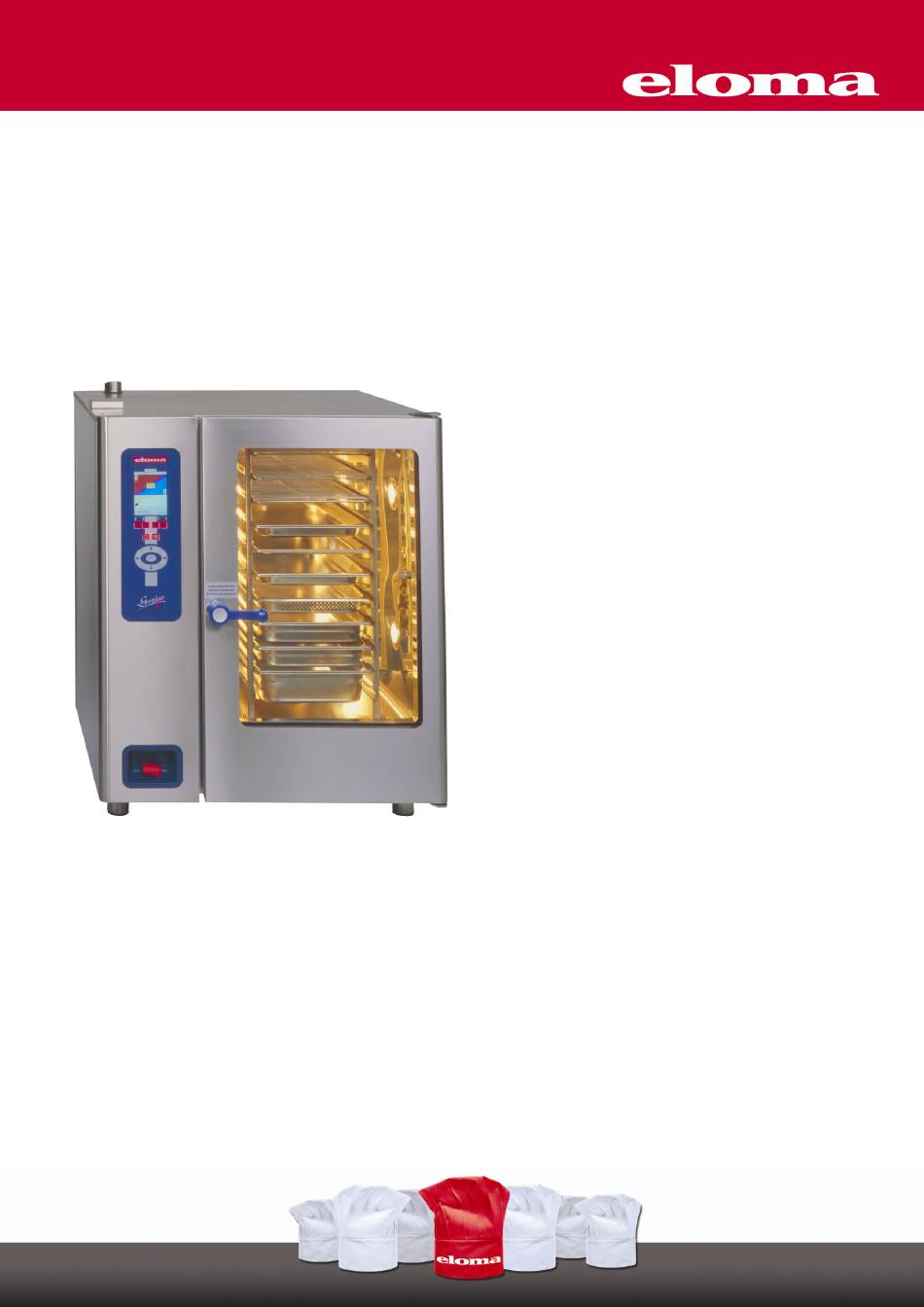

- Page 1 Combi-Steamer Genius T Installation and Operation Manual...
-
Page 2: Table Of Contents
Installation and Operation Manual Combi-Steamer Genius T 6-11, 10-11, 20-11, 12-21, 20-21 Table of contents: Hints on operational safety ........3 7.6 Combi cooking ..........24 Installation instructions ........4 Navigation of interfaces and programme lists..25 2.1 Setting-up............. 4 Active Temp ............ - Page 3 Dear customer, Congratulations – on your purchase of an Eloma Genius combi-steamer. Please do read these instructions carefully, before starting to work with the Genius combi-steamer. They contain important information on correct installation and operation. Functional method of the combi-steamer The combi-steamer Genius offers every possibility to experience modern professional cooking technology.
-
Page 4: Hints On Operational Safety
Repair and maintenance work on the unit shall only be performed by AUTHORIZED PERSONNEL i.e. Eloma or partners. Do not use a water hose or a high pressure sprayer on outer surfaces. -
Page 5: Installation Instructions
Installation instructions Setting-up Removal of protecting film: For better protection during transport, the adhesive film remains on the appliance. Prior to starting the machine, this protective film must be removed from side, back and cover surfaces. Use special cleaner to clean to perfection. The oven must not be started with this adhesive film. -
Page 6: Floor Models 20-11, 12-21 And 20-21
2.1.2 Floor models 20-11, 12-21 and 20-21 Floor models must invariably be operated with the trolley, ( also when preheating and cleaning). For maintenance and easy access to the unit for after-sales operations use flexible water and electric connections. The appliance should be removable approximately 1 meter from its standard position. -
Page 7: Electrical Connection
Electrical connection Pay attention to the data on the type plate for the electrical connections. The movable power supply lead must be a rubber-insulated flexible cable, type H 07 RN-F complying with VDE standards. In case a plug is mounted, the plug device must be accessible after setting- Observe the sense of rotation of the ventilator when connecting to the mains. -
Page 8: Connect Drain
Connect drain In accordance with DVGW instructions (DVGW = German technical scientific association on gas and water) the appliance is intrinsically safe and can be connected directly to the sewer without any further measures. Diameter of the drain pipe : 50 mm appliance direct connection •... -
Page 9: Control Panel And Functional Description
Control panel and functional description Control panel Genius 6-11, 10-11, 12-21, 20-11, 20-21 Actual time Operation system Climatic Cursor Program step Climatic Monitor Time Core temperature Info line Menu selection Sensor keys LED START Master key ON/OFF Touch key START/STOP LED STOP OK to confirm Genius... -
Page 10: Genius Operation ( Rocker )
Press OK to confirm every input or setting. Display screen As soon as the unit is connected to the mains, the Eloma standby screen appears Touch master key to switch on, the start-up screen appears. The red part of the screen represents dry heat, the blue one moist heat ®... -
Page 11: Start-Up In Manual Operation
Prior to start : Open water tap. Press key ON/OFF, a start-up screen appears. The appliance is ready for work. LED is lit. Eloma Standby-screen Start-up screen • As standard the operation mode indication displays manual input as first start-up screen. -
Page 12: Manual Operation - Input Of One Step
1. Input time 2. Input core temperature 3.Input lines • Four-figure time display from 00:00 to 23:59. to get to ∞ = continuous operation. Basic setting is 00:00 move arrow 1. Time: and you get again ∞ = continuous op. Time setting is 23:59 move arrow Setting is ∞... -
Page 13: Steptronic ® Manual Operation Input Of Two Steps
Steptronic ® Manual operation – Input of two steps Example 1 step → Input 190°C, 50%, Time 10 minutes step → Input 220°C, 20%, Time 15 minutes Input 1 step Input 2 step Manual operation Remaining time Total time Step 1+2 Example 2 step →... -
Page 14: Steptronic ® Manual Operation Input Of Several Steps
Steptronic ® Manual operation – Input of several steps • Steptronic ® allows to combine several steps, also time and core temperature combined. • Input of the first cooking step as described in § 4.1. • To proceed to a second step, press touch key “Next step“ and repeat input as described before. •... -
Page 15: Display Of Actual Values - Steptronic
Display of actual values – Steptronic ® • While a program is running down, touch one of the direction arrows. The actual values for temperature and humidity are displayed for 5 seconds. • Then the display returns to the desired set values. •... -
Page 16: Additional Functions
Additional functions • Go to “Additional >>“ to select further functions. • Enter manually temperature/humidity and time or core temperature, confirm with OK. • Go to “Additional“, using arrow and proceed as described Manual input Additional functions Additional function active Manual Input Info line •... -
Page 17: Cooking Procedures
Cooking procedures For a shortcut to the temperature/moisture constellations necessary for the desired cooking procedure, you can use the screen "Selection cooking procedures" to select preset typical temperature/humidity constellations by selecting a cooking procedure. In "Selection cooking procedures", press the arrow keys to select the desired cooking procedure. Once you selected and entered your choice, the interface for the cooking procedure definition opens, which you already know from manual input. -
Page 18: Program Storage "Infothek
Program Storage “Infothek“ Program number Program name Input field name Confirm Program name / No. Input field number Symbol Favourite << Cursor to the left >> Cursor to the right Field : x Delete characters to the left Letters, numbers, characters ⌧... - Page 19 Select and edit a program name out of the name proposals • Use Genius direction arrows to bring up the first letter, confirm with OK. • Use Genius arrow to bring up name proposals. Two already existing program names starting with the same letter are displayed. •...
- Page 20 Select a program to be a Favourite Symbol Favourite • We recommend to mark programs that are frequently used to be Favourites. It is then possible to create the list of favourites, facilitating a quick search. • Two possibilities to mark a Favourite: 1.
-
Page 21: Delete A Program
Delete a Program • Bring up the program from the program list and confirm with OK . • Set the time or the core temperature to 00:00 “ and press sensor key “Delete program“. • The complete program is deleted. Copy a Program •... -
Page 22: Program Operation
Program Operation Select and start a Program from the Program List • Touch sensor key “Program List“ to bring up all saved programs, maximum 300 • Favourites are marked with the smiley ☺ . Display 1 step Select a program Program indication •... -
Page 23: Select And Start A Programme Via Menu Group
Select and start a programme via menu group With the sensor keys Programme List, Favourites and Menu Group, you can open the display Menu Group. Use the arrow keys to select the desired menu group, the middle is selected with the OK key. With the arrow keys you can select the programmes saved in the respective menu group. -
Page 24: Delay Start In Program Operation
Delay start in program operation • The start of a program can be delayed for up to 24 hours. • Select a program from whatever list and confirm with OK. • Press sensor key “Start time“. • Use the Genius arrows to set the start time and start pressing key. -
Page 25: Combi Cooking
Combi cooking Combi cooking can be selected manually or while running a programme. Different cooking programmes can be started at different times. The sensor key Combi Cooking is available: 1. during cooking 2. if you have pressed Preheating, after the Active Temp procedure. 3. -
Page 26: Navigation Of Interfaces And Programme Lists
Navigation of interfaces and programme lists • With the sensor key S 1, you can change between the interfaces cooking procedures and manual, as well as the programme list and preview. To work with the programme list displays, use the sensor key S 2 to change between displays for the entire programme list, favourites and selection menu group preview. -
Page 27: Special Programs
10. Special programs • Touch sensor key “Special Program“ to bring up further special programs and functions. 10.1 Function BANQUET • Press sensor key “Special program“ and confirm Banquet with OK • The Climatic monitor indicates between the striped field the banquet cooking range for temperature/humidity. -
Page 28: Cooking (Low Temperature)
10.2. LT-Cooking (Low temperature) • Touch sensor key “Special Program“ , use Genius arrow to select LT cooking and confirm with • The Climatic monitor indicates below the striped field the LT cooking range for temperature/humidity. Standard setting for LT cooking is 80°C and 20% humidity. •... -
Page 29: Function Cook & Hold
10.3 Function Cook & Hold • Touch sensor key “Special Program“ , use Genius arrow to select Cook & Hold and confirm with OK. • The Climatic monitor indicates the Cook & Hold range for temperature/humidity. Standard setting for Cook & Hold is 70°C and 40% humidity. •... -
Page 30: Delta-T- Cooking
10.4 Delta-T- Cooking • Touch sensor key “Special Program“ , use Genius arrow to select T-Cooking and confirm with OK. • The Climatic monitor indicates the T-Cooking range for temperature/humidity. Standard setting T-Cooking is 40°C and 40% humidity. • Use Genius arrows to determine temperature/humidity and confirm with OK •... -
Page 31: Function Haccp
Additional functions “ cooking“: • Use Genius arrow go to line “Additional“ and select additional functions. • Use Genius arrows for selection. In total 4 additional functions per step are possible. • In total 4 additional functions per step are possible. •... -
Page 32: Selection And Printing Of Recorded Cooking Processes
10.5.2 Selection and printing of recorded cooking processes The connecting cable shall only be plugged or unplugged if both, the steamer and the printer, are switched off, otherwise the control unit or the printer may be damaged The appliance must be switched on with no program in progress. Any exact HACCP recording presupposes the correct setting of the real time. -
Page 33: End Of Operation
For combi cooking, there are no explicit logs for KT values starting with the time of selecting Fct. Combi cooking. 11. End of operation Switch off by pressing ON/OFF key. The LED in the key extinguishes. Close water tap. Disconnect the appliance from the mains, if it is not used for a longer period of time. -
Page 34: Delay Start Of Autoclean
All safety devices inside the unit have been designed to the use of these products in order to comply with the standard specifications of the drinking water supply. The Eloma GmbH bears no liability for any damages caused by the use of any other cleaning products (cleaner and rinse agent) than mentioned above. -
Page 35: Service
Service 13.1 Week program • Use the function „weekly program“ for stored programs that are supposed to be started at a certain day and time of the week. • Go to the Program List and select the program that is supposed to be started at a certain day and time. -
Page 36: Function Start Sreen
13.3 Function Start Sreen • You can select 5 different start-up displays. • Select or deselect with " " by pressing OK. • Screen Manualinput , see Section 4, is not displayed. 13.4 Function Language • All functions, menus and information can be displayed in different languages. •... -
Page 37: Connection To Kitchen Control Systems (Kcs)
14. Connection to Kitchen control systems (KCS) • In case special hard /software is available, a connection to kitchen control systems is possible. 15. Failure indication • Press sensor key “Help“ to get valuable information regarding failures. • The displayed symbols explain possible failure causes and offer remedies. •... -
Page 38: Cleaning And Maintenance
16. Cleaning and maintenance Regular cleaning of the MULTIMAX is of utmost importance. Only Eloma recommended cleaner agents may be used. Please observe the manufacturer's operating instructions. Cleaning without Autoclean: • We recommend to set the Climatic Cursor to 60° C/100% humidity level. - Page 39 hCleaning of drip gutter and tray : ( models 6-11 and 10-11 only) Drip gutter under the appliance : Clean it regularly, including the drain opening. Drip tray on the door : Remove it to the front for regular cleaning by pressing the two clips underneath down.
-
Page 40: Valuable Information
17. Valuable information 17.1 Trouble Shooting If your Genius isn’t working properly, review the following list first. If you do not succeed, switch off, disconnect from mains, close water tap. Call the after-sales-service Failure Possible Cause Remedy No required heating Mains switched off or fuse Check the mains system and switch capacity, fan does not start. -
Page 41: Accessories - Optional Extras
6-11, 10-11, 20-11, 12-21, 20-21 and trolleys – banquet service Recommendation : Stock additional filters to change Fat filter 1 l spray pistol bottle Eloma Cleaning agent 10 l refill bin 1,5 l Pressure pump sprayer Grids GN 1/1, GN 2/1,... -
Page 42: Warranty Conditions
Technical amendments, also in the sense of further development and/or technical progress are reserved. The warranty period is not renewed or extended in case of any repair or replacement delivery. Eloma shall regain possession and control of such replaced parts and appliances. -
Page 43: Data Of The Oven
21. Data of the oven Model ________________________________________________ Serial number ________________________________________________ 22. Service notes Date After-sales service Remarks General Remark : Climatic® and Steptronic ® are Eloma GmbH trademarks registered in Germany Technical amendments are reserved. 791318 Genius T Vers. 1.7... - Page 44 Notes: 791318 Genius T Vers. 1.7...
- Page 45 Notes:...
