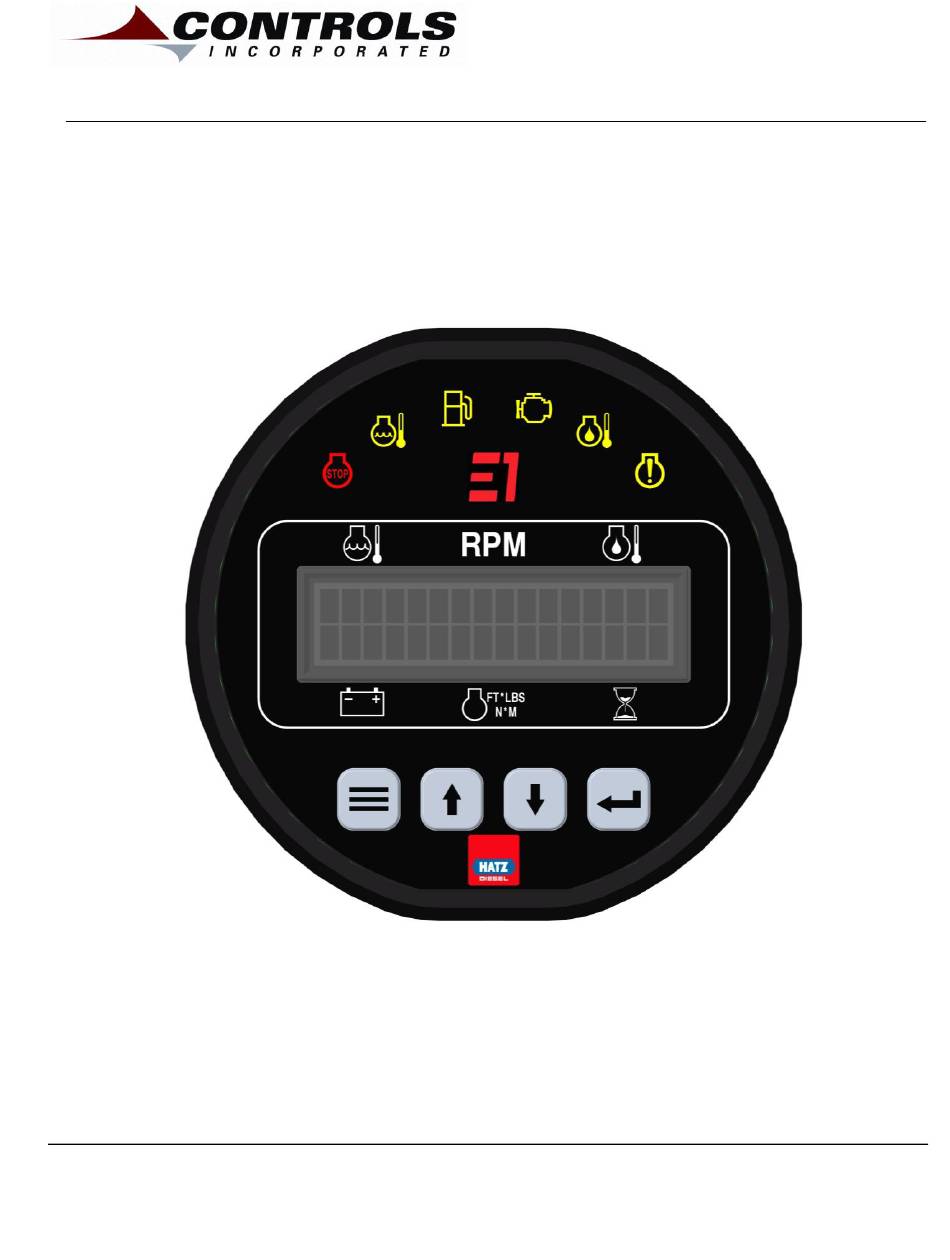

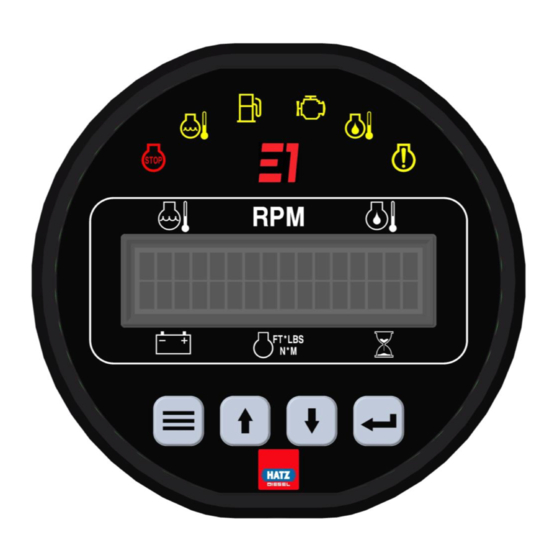

- Page 1 Product Manual Pump Display & Control Panel J1939 Engines Part Number: MVP-410 Revision: 1.0 Copyright @ Controls, Inc P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...
- Page 2 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS INSTALLATION INFORMATION ……...………………………………...……………………………………………………………..MODULE CONNECTOR ……......………………………………...…………………………………………………………………. ENGINE ALARMS, CODES AND MESSAGES ………………………………………………………………………….…...……..
- Page 3 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION...
- Page 4 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MODULE CONNECTOR INFORMATION BATTERY + DIGITAL INPUT #1 CAN HIGH FUEL/RUN CAN LOW DIGITAL INPUT #2...
- Page 5 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL SPECIFIC ALARMS AND SHUT DOWNS The panel has its own engine safety Pre Alarms and Alarm shut downs that can be enabled. These alarms and shut downs are managed by the control panel.
- Page 6 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Engine Low Fuel Lamp Lamp Engine High Oil High Temperature Temperature Lamp...
- Page 7 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL ANALOG AND DIGITAL INPUTS The panel has one analog input and up to three digital inputs (close to ground) available to monitor other components, senders or signals.
- Page 8 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL OUTPUTS The panel has three relay outputs available to signal other devices based on predefined events.
- Page 9 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options.
- Page 10 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes...
- Page 11 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Configuration Menus Quick Setup Engine Type – Default = Electronic FT4 Engine Manufacturer – Default = Hatz...
- Page 12 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Module Configuration Preheat Time Low Power Mode Power Save Delay Pre-Alarms Displayed (Default = 4)
- Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S (11) Emissions Configuration DEF Level Check (Default = Off) Low DEF Pre Alarm (Default = 16%) Low DEF Alarm (Default = 0%) DEF Alarm Delay (Default = 5 Sec.)
