- Page 1 BlueControl Extension box 20RL Technical User Guide 604066 • 2023-02-23...
- Page 2 The date of change appears from the front and back pages. Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.
-
Page 3: Table Of Contents
BlueControl 1 Product description ............................ 4 2 Product survey ............................... 5 3 Mounting guide............................... 6 Recommended tools........................ 6 Mounting the Extension Box .................... 7 4 Installation guide............................ 8 Installation of the Extension Box ..................... 8 5 Maintenance instructions .......................... 10 Cleaning............................ -
Page 4: Product Description
The structure of the manual follows the required work routines. By following the instructions of the manual, you will go through all steps in the correct order. You can connect the BlueControl extension box to controllers from SKOV A/S. Technical User Guide... -
Page 5: Product Survey

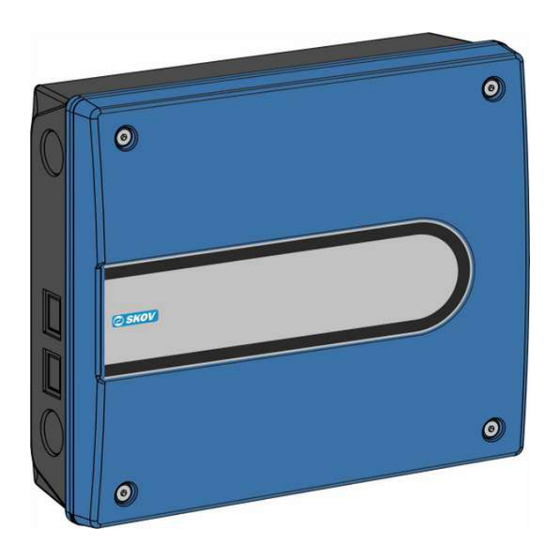

BlueControl 2 Product survey 136471 BlueControl extension box 20RL Extension box with 2 pcs. I/O module, 10RL 8AI 10RL, type 3. 0-10 V input or DOL 12 input or digital input (16) 0-10 V outputs (16) Relays (20) Used when more I/O modules are needed than are available in the standard hardware. -
Page 6: Mounting Guide
BlueControl 3 Mounting guide 3.1 Recommended tools Below is a list of the tools recommended for the installation. Topic Description Crosshead screwdriver Screwdriver straight slot (2 pcs.) Power drill Hammer Technical User Guide... -
Page 7: Mounting The Extension Box
BlueControl 3.2 Mounting the Extension Box Install the extension box so it is not exposed to frost or direct sunlight. Mount the extension box to the left or the right of the controller. Controller Extension box right Extension box left Controller 1. -
Page 8: Installation Guide
BlueControl 4 Installation guide Installation, servicing and troubleshooting of all electrical equipment must be carried out by quali- fied personnel in compliance with the applicable national and international standard EN 60204-1 and any other EU standards that are applicable in Europe. The installation of a power supply isolator is required for each motor and power supply to facilitate voltage-free work on the electrical equipment. - Page 9 BlueControl Jumper setting 1. Adjust the jumpers (A) and (B) Adjust the jumpers (A) ON = Emergency opening can override relay so in- let opens. OFF = Factory setting. Emergency opening cannot override relay. Adjust the jumpers (B) AI = Analog input. DI = Digital input.
-
Page 10: Maintenance Instructions
BlueControl 5 Maintenance instructions 5.1 Cleaning Clean the product with a cloth that has been wrung out almost dry in water and avoid using: • high-pressure cleaner • solvents • corrosive/caustic agents 5.2 Recycling/Disposal Products suitable for recycling are marked with a pictogram. It must be possible for customers to deliver the products to local collection sites/recycling stations in accordance with local instructions. -
Page 11: Technical Data
BlueControl 6 Technical data Electrical V AC Rated voltage 230/240 ± 10% V AC Operating voltage 103.5-264 Frequency 50/60 Max. power consumption I/O module type 3 IO type 3, 10RL 8AI 8AO With jumpers for configuration of inputs. Inputs 16 x 0-10 V DC input impedance 2.1 Mohm. Pulsing Inputs Minimum pulse length: 75 ms. - Page 12 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
