Kiwi Camping Fantail Ezi-Up Pitching Instructions

PITCHING INSTRUCTIONS
Your tent includes:
13 x steel pegs
13 x ropes
1 x fly
1 x fibreglass/steel frame attached to inner tent
1 x STEEL pole
1. Select a dry, level site and
clear the ground of any
sharp objects. Remove the
tent from its carry bag and
lay tent flat with central hub
upright.
2. Extend all 6 poles out far
enough to so the inner tent
stands by itself.
3. Grip the lower hub of the tent and lift it to eye level and with other
hand and pull the cord. If the handle and fabric is too tight, unclip the
orange speed clips.

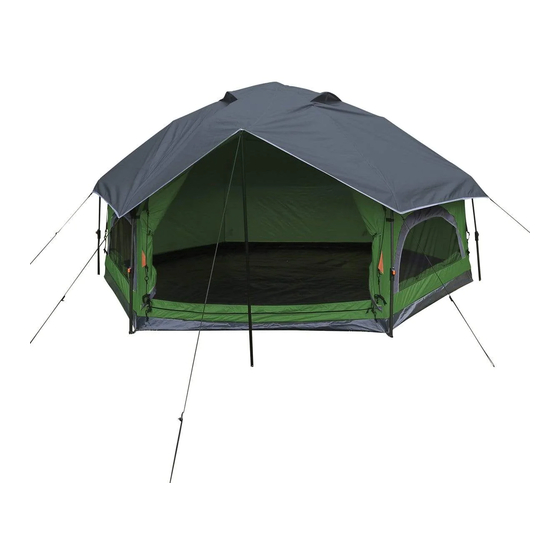

Fantail Ezi-Up Tent
Model No. KC072-461
4. Extend the side poles until they lock into place. Complete this on all
side poles.
5. Peg out the pegging points on the erected tent inner.
6. Carefully pull the fly over the inner, reach under the fly and attach
any hook and loop tabs or fabric ties to the poles centralizing the
fly. This also helps the tent's performance in the wind.
7. Assemble the STEEL pole, place through the eyelet at the front of
the tent and peg out with a guy rope.
8. Peg out the remaining guy ropes at a 45 degree angle.
REVERSE THE PROCEDURE TO LOWER THE TENT
